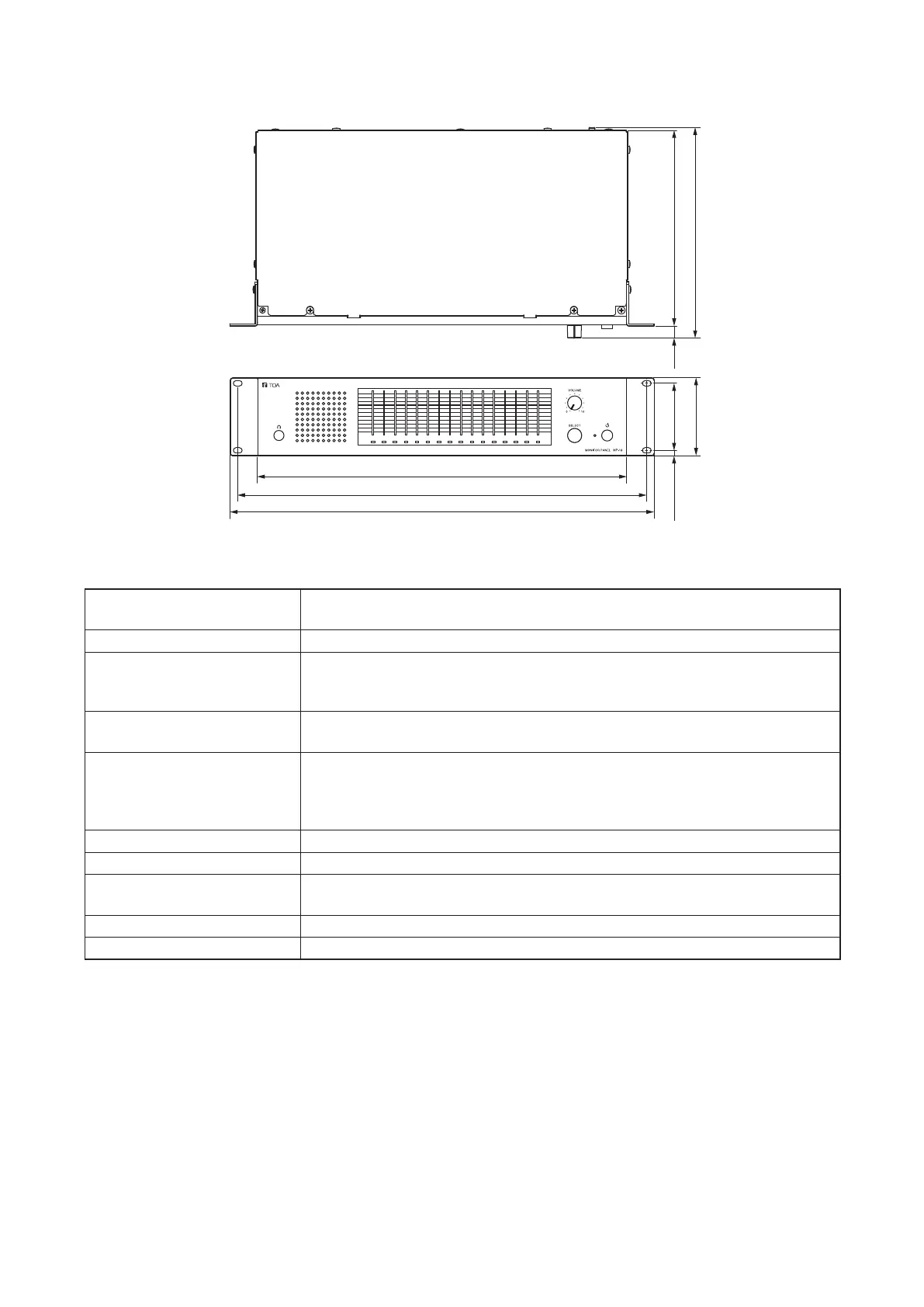

6. DIMENSIONAL DIAGRAM
Unit: mm (inches)
7. SPECIFICATIONS
Power Source Supplied from an external 24 V DC (20 – 33 V DC) power supply, Removal
terminal block (2 pins), or from the optional AD-246 AC adapter
Max. Current Consumption 520 mA
Input High impedance speaker: Max. 100 V
Low impedance speaker: Max. 1200 W (8 Ω)
Line: +6 dB*
Output Speaker output: Max. 3 W
Headphone output: 8 Ω
Level Display Meter: 12-segment LED meter x16
Level Indication: 1.6 – 100 V (High impedance speaker)
0.3 – 1200 W (Low impedance speaker)
–30 to +6 dB* (Line)
Operating Temperature 0 to 40 ºC (32 to 104 °F)
Operating Humidity 90%RH or less (no condensation)
Finish Panel: Pre-coated steel plate, black, 30% glossy
Case: Surface-treated steel plate
Dimensions 482 (w) x 88.4 (h) x 240.8 (d) mm (18.98" x 3.48" x 9.48")
Weight 3.9 kg (8.6 lb)
* 0 dB = 1 V
Note: The design and specications are subject to change without notice for improvement.
• Accessories
Removable terminal plug (10 pins) ........... 8
Removable terminal plug (2 pins) ............. 1
Rack mounting screw 5 x 12 .......................4
• Option
AC adapter: AD-246
W/8Ω
V
LO HI
dBV
+6
+3
0
-4
-7
-10
-14
-17
-20
-24
-27
-30
1001200
70600
50300
30120
2060
1630
1012
76
53
31.2
20.6
1.60.3
16151413121110987654321
420 (16.54)
465 (18.31)
482 (18.98)
222.3 (8.75)
240.8 (9.48)
13.7
(0.54)
76.2 (3)
88.4 (3.48)
6.1 (0.24)
