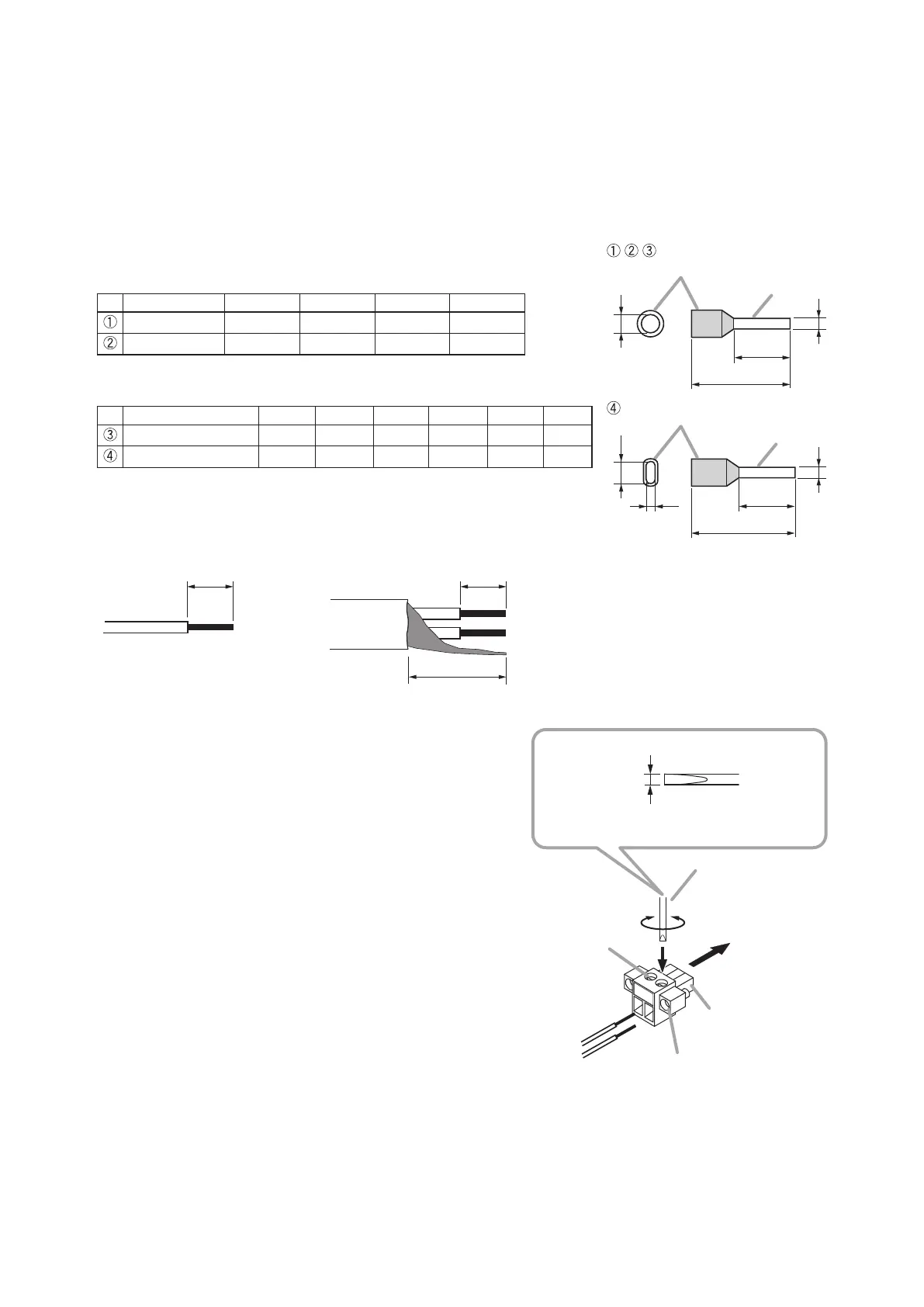

5.3. Removable Terminal Plug Connection
Notes
• Do not use a micro screwdriver. Sucient torque is not given to the screws when tightening them, and
connections may not be secured.
• Avoid soldering stranded or shielded cable, as contact resistance may increase when the cable is tightened
and the solder is crushed, possibly resulting in an excessive rise in joint temperatures.
• When connecting 2 cables or a shielded cable to a single terminal, use a ferrule terminal with an insulation
sleeve to crimp the cables because such cable conductors could become loose.
Recommended ferrule terminals for signal cables
(made by DINKLE ENTERPRISE)
Unit: mm
Model Number a b l1 l2
DN00308D 1.9 0.8 12 8
DN00508D 2.6 1 14 8
Recommended ferrule terminals for power supply cables
(made by DINKLE ENTERPRISE)
Unit: mm
Model Number a a1 a2 b l1 l2
DN01508D
3.5
- -
1.7 14 8
DN01508B
-
6.6 3.6 2.3 16 8
Crimping tool: DNT01-2206B (made by DINKLE ENTERPRISE)
[Cable sheath to trim]
Insulation sleeve
Contact section
Insulation sleeve
Contact section
a
l
2
a
1
a
2
l
1
l
2
l
1
bb
Solid cable and stranded cable
Shielded cable
7 mm*
7 mm*
15 mm
* Expose 8 mm or more when using the
above ferrule terminal, and cut o an extra
conductor protruding from the sleeve.
Fixing screw
Terminal screw
Tightens
Loosens
Blade width*
1
Slotted screwdriver
[Recommended type of screwdriver ]
*
1
For speaker output terminal: About 3.5 mm
For other terminals: About 2.5 mm
Removable terminal
plug (accessory)
[Wiring procedures]
Step 1. Wiring the supplied removable terminal plug.
1-1. Loosen the terminal screws to insert the wire.
1-2. Tighten the terminal screws.
Ensure that the wire does not break free when pulled.
If the wire does pull free, repeat the connection
procedure from the start.
Step 2. Insert the wired terminal plug into the corresponding
terminal block in the unit’s rear panel.
Step 3. (DC power input terminal only) Tighten the xing screw.
Notes
• Do not reverse Steps 1 and 2 above. Poor contact may result
if force is applied to the unit’s internal circuit board pins while
the terminal screws are being tightened.
• When detaching the terminal plug, pull it straight out. Pulling it
out at an angle may cause the terminal plug or terminal block
to break.
