7

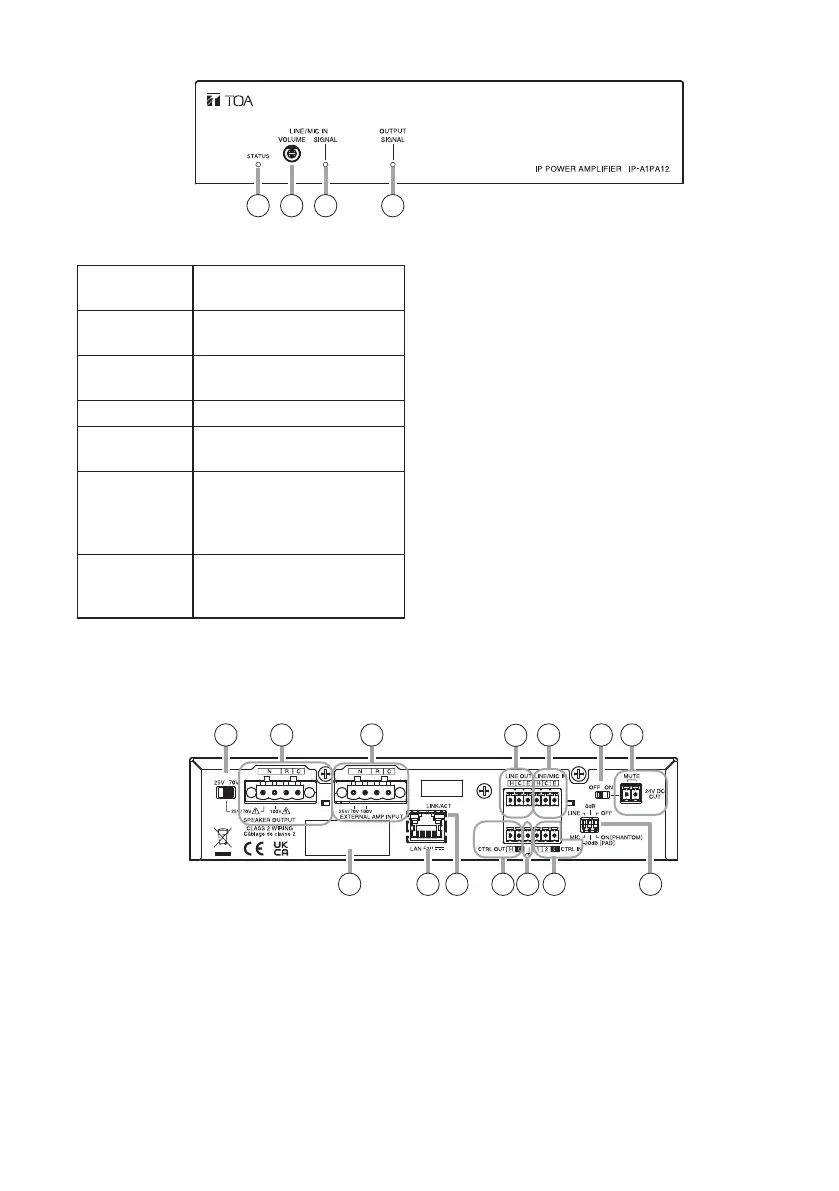

6. NOMENCLATURE AND FUNCTIONS
[Front]
The figure with a removable terminal plug detached.
12 13 14 15 16 17 18
5 6 7
8
9
10
11
[Rear]
1. Status indicator (green, blue, yellow, red)
Indicates the unit’s operating status.
Unit
Operation
Status Indicator
System
startup
Flashing green
Broadcast
standby
Continuously lit green
Broadcasting Continuously lit blue
System
mute*
Flashing red
External
Amplier
Idle: Flashing
green
Broadcasting: F l a s h i n g
blue
Initialization
or rmware
updating
Continuously lit yellow
* System mute is a state in which this unit is
muted by the control from the transmitting
device.
2. LINE/MIC input volume control
Adjusts the volume level of the LINE/
MIC input. Rotate this volume control
clockwise to increase the volume level and
counterclockwise to decrease it.
Set this volume not to make the LINE/MIC
input signal indicator (3) light up in red.
3. LINE/MIC input signal indicator (green,
red)
Lights green when a signal is input to LINE/
MIC input. Lights red when the input signal
level is too high.
4. Output signal indicator (green)
Lights green when a signal is outputting
from the speaker or line output.
1 2 3 4
5. 25V/70V selector switch
Set this switch to match the specications
of speaker being connected to the unit’s
speaker terminals or the connected external
amplier. Select "70V" if the speaker being
connected is a 70 V high-impedance line
speaker, or "25V" if it is a 25 V high-impedance
line speaker. The switch is set to "70V" by
default.
6. Speaker output terminals
Connect only high-impedance speakers.
Output specications are shown in the table
on the next page:
