Step 4. Secure the speaker bracket to the wall bracket.

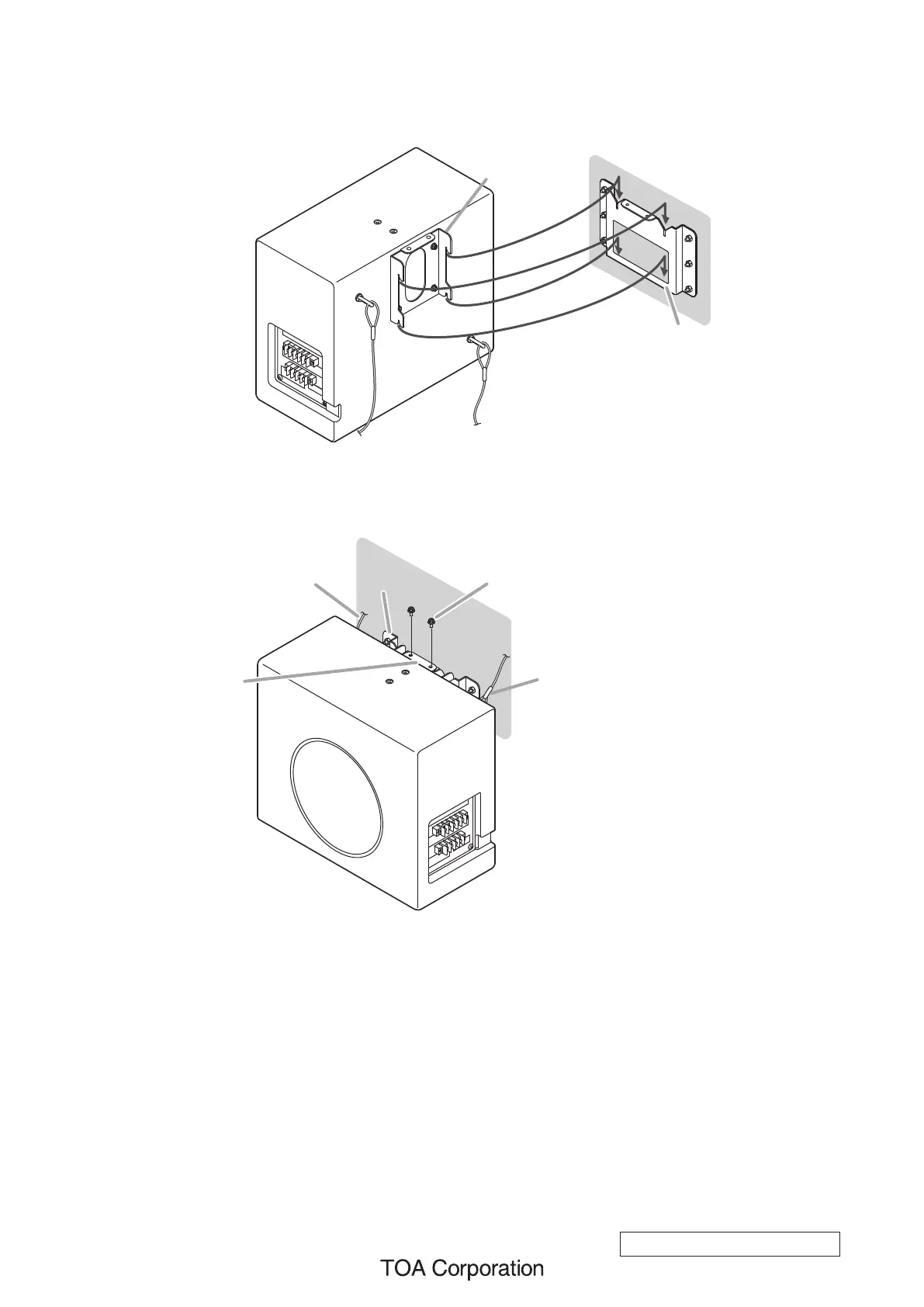

Hook and slide down the speaker bracket onto the wall bracket by aligning the upper hooks of the
speaker bracket with the upper notches of the wall bracket and the lower hooks of the speaker bracket
with the lower groove of the wall bracket.
Wall
Wall bracket
Speaker bracket
Step 5. Secure the speaker bracket and the wall bracket with the supplied screws.
Recommended tightening torque: 3 N·m
Wall bracket
Safety wire
Safety wire
Speaker bracket
Wall
5
6
6
Hexagon bolt M5 x 12
(with plain washer and spring washer, accessory)
Step 6. Attach the safety wires to the wall.
