2
2. GENERAL DESCRIPTIONS
TOA HY-WM-FB08B and HY-WM-FB08W are the mounting brackets designed for installing the optional
Subwoofer system FB-08BT or FB-08WT (hereinafter called “speaker”) to the wall.
Each bracket consists of a Wall bracket to be installed to the wall and a Speaker bracket to be attached to the
speaker.

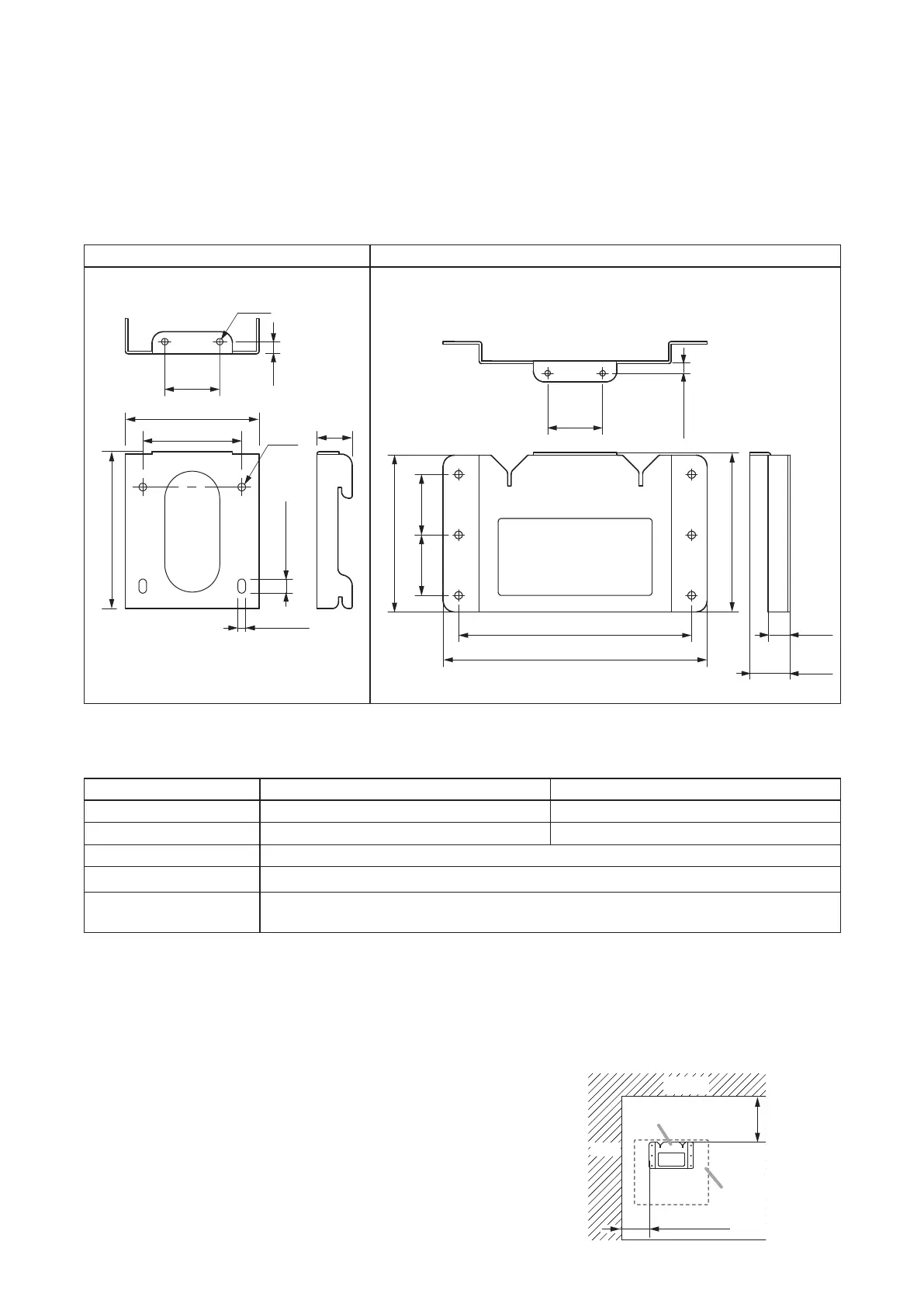

3. DIMENSIONAL DIAGRAMS
Speaker bracket Wall bracket
Unit: mm
50
(1.97")
2-ø6
2-ø7
122 (4.8")
7 (0.28")
90 (3.54")
32
(1.26")
11
13 (0.51")
143 (5.63")
Unit: mm
11 (0.43")
143 (5.63")
55 (2.17") 55 (2.17")
145 (5.71")
50
(1.97")
212 (8.35")
240 (9.45")
20
(0.79")
37
(1.46")
4. SPECIFICATIONS
Model No. HY-WM-FB08B HY-WM-FB08W
Applicable Speaker FB-08BT FB-08WT
Finish Steel plate, black*
1
, paint Steel plate, white*
2
, paint
Weight 850 g (1.87 lb)
Product composition Speaker bracket ... 1, Wall bracket ... 1
Accessories Hexagon bolt M5 x 12 with plain washer and spring washer .... 2
Hexagon bolt M6 x 25 with plain washer and spring washer .... 4
*
1
RAL 9011 equivalent
*
2
RAL 9016 equivalent
Note: Thedesignandspecicationsaresubjecttochangewithoutnoticeforimprovement.
5. INSTALLATION LOCATION OF THE WALL BRACKET
When installing the wall bracket to a wall, refer to the installation
location diagram shown at right.
The diagram shows the minimum distances from the ceiling or the wall
to the wall bracket, taking into consideration the speaker installation
procedure.
250
(9.84")
Speaker
Wall bracket
Ceiling
Ceiling
Wall
Wall
150 (5.91")
Unit: mm
