2. GENERAL DESCRIPTION
TheHY-ST7SpeakerStandAdapterisusedtomounttheHX-7BorHX-7WSpeakerSystemonaspeakerstand.
Whenthespeakerdirectivityanglemodeis0°,15°or30°,thespeakeranglecanbeadjusteddownwardlywithin
therangeof0°to7.5°usingthisadapter.
Thepossibilityofstandinstallationanddownwardangleadjustmentrelativetothesetspeakerdirectivityangle
modeisshowninthegurebelow.
Speakerdirectivityanglemode Speaker stand mounting Downward angle adjustment
0°,15°,30° Possible Possible
45° Possible Not possible
60° Not possible
Tip
Prepare the speaker stand and adapter separately. Recommended products are as follows:
Speakerstand :K&M21300
Mountingadapter :K&M19580
3. MOUNTING DIAGRAM
Owing to the speaker’s size and weight, be sure that at least two persons
are available to mount the speaker. Failure to do so could result in
personal injury.
WARNING
Attach the speaker stand adapter to the upper part of the speaker and mount the speaker on the speaker stand
upside-down.

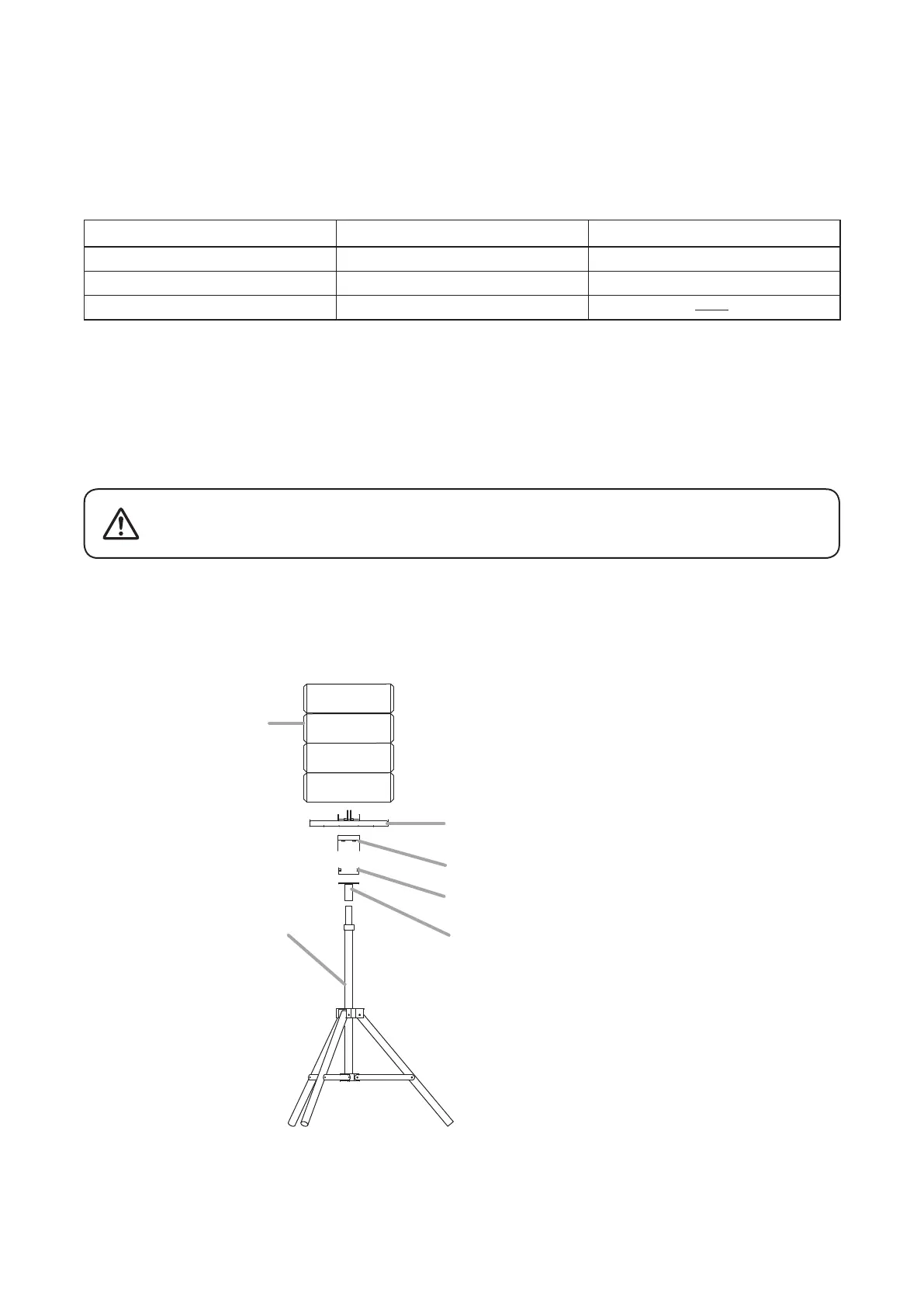

[Component disassembly]
Speaker
This adapter (T-bracket)
This adapter (Angle bracket)
This adapter (Mounting base)
Mounting adapter (Commercial product)
Speaker stand (Commercial product)
