11 12

13 14

15 16

anchor

pins

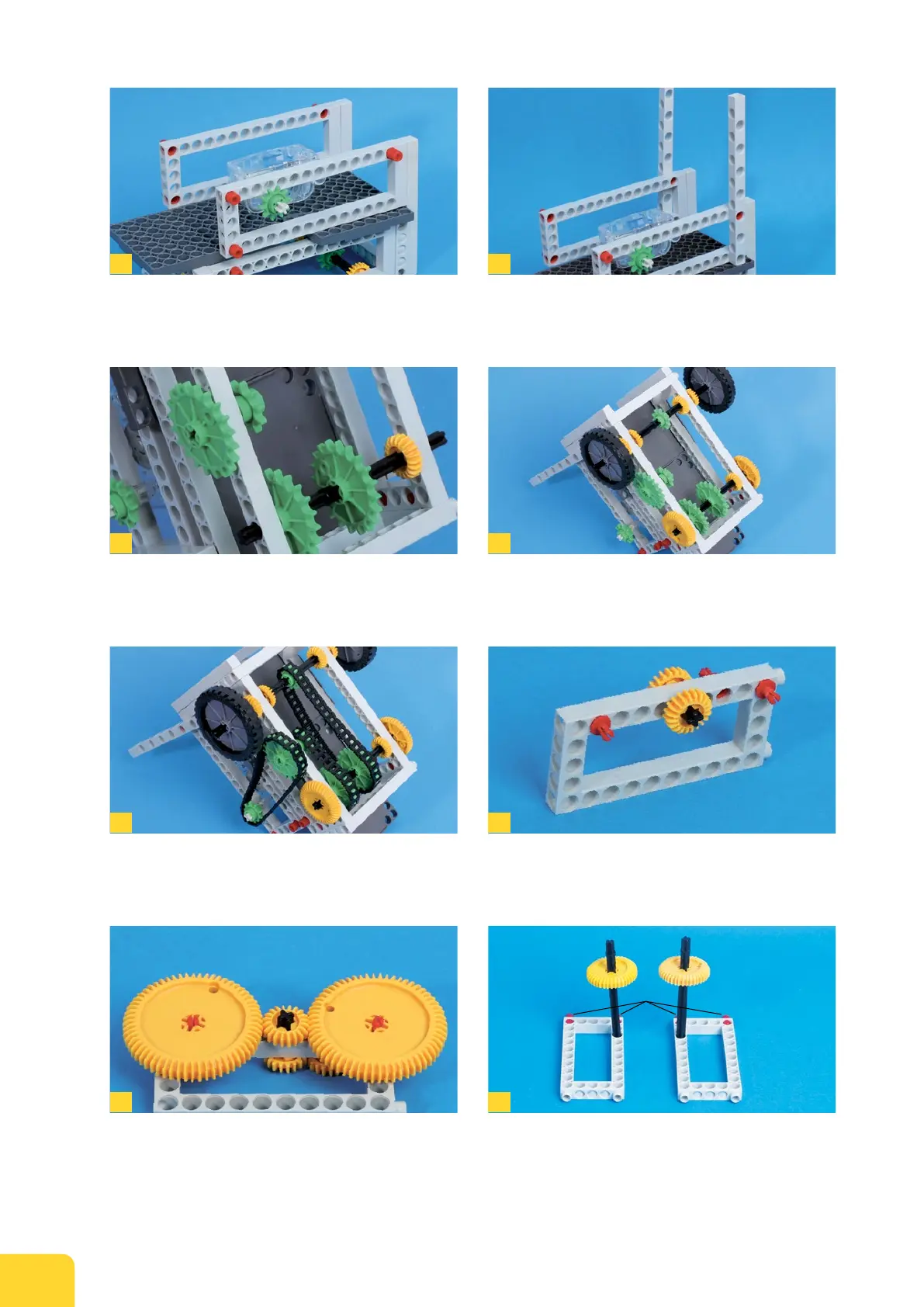

9. Attach the two frames to the short rods. They hold the cargo bed in

place, which can now no longer move up or down.

11. A short axle shaft (18) with a medium (10) and a small sprocket

wheel (9) forms the drive shaft. Insert the shaft into the frame ﬁve

holes above the axle shown at the bottom of the picture.

13. Align the sprocket wheels to form a straight line. Then attach the

drive chains. They are made of 31, 44, and 46 chain links (29).

15. Mount two large gear wheels (6) on the front of the frame, and on

the back mount one more small gear wheel (8). Check over the entire

gear drive assembly.

10. Next, place two long rods (5) on the rear of the base plate and push

them onto the side anchor pins. Now the cargo bed deﬁnitely won’t be

able to slip.

12. Two tire wheels (15), two small gear wheels (8), and two medium

gear wheels (7) complete the axle. After assembly, make sure that the

axle shafts turn easily.

14. A short frame (3) makes the radiator. Three shaft plugs (25) and one

short axle shaft (18) with two small gear wheels (8) are inserted into it.

16. In each of two short frames (3), insert two anchor pins (26). In

addition, insert two medium gear wheels (7) onto two long axle shafts

(16).
