To Unpair:
1. Open the Ranger App from your iOS or Android device, then tap the settings button (3 dots) on the
top right corner of the screen.
2. Enter the Pairing menu, select the receiver(s) you wish to unpair, then tap the Unpair button.
Power Cables

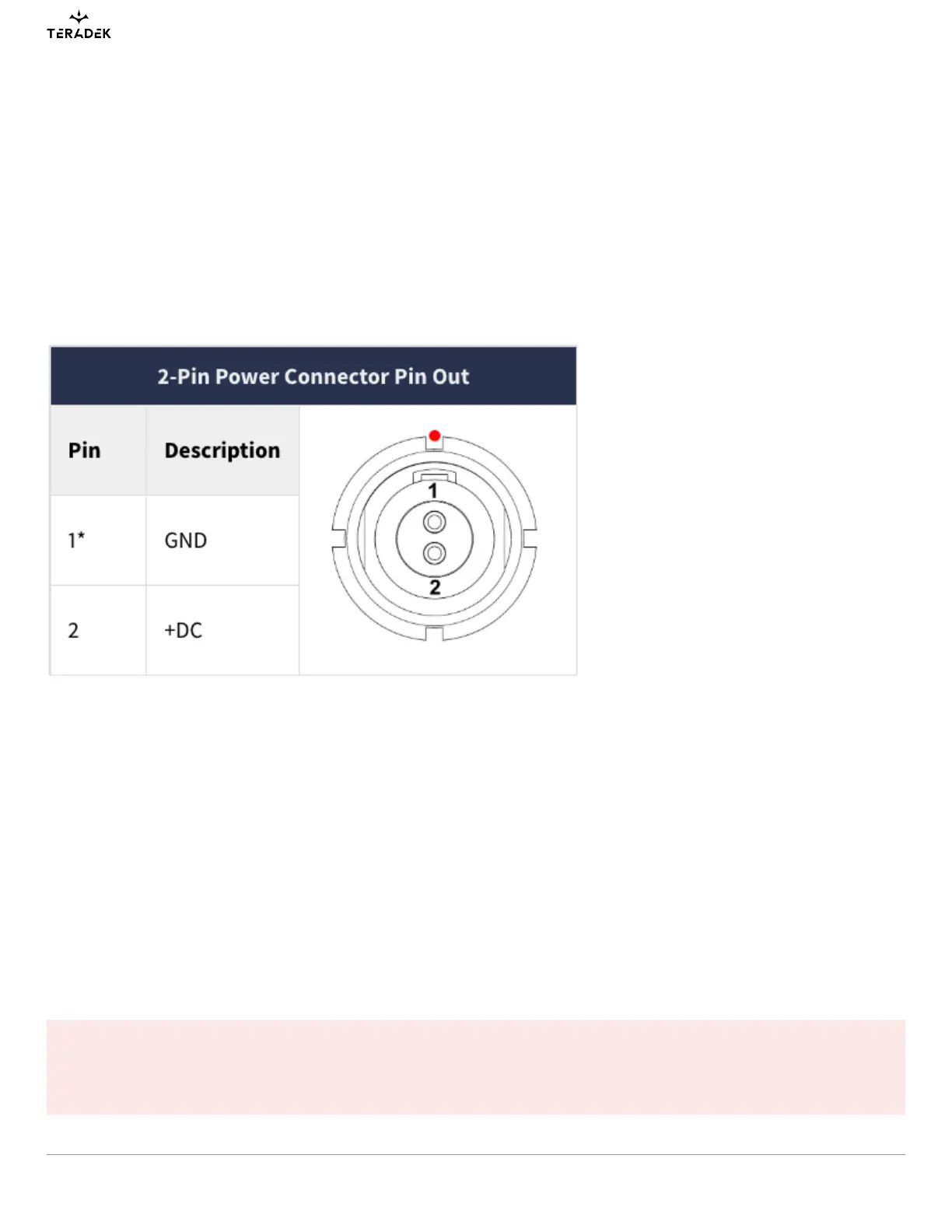

2-Pin Power Connector
Ranger devices use a locking 2-pin power connector similar to the 0B 302 series LEMO connector.
* Pin 1 is closest to the red dot on the connector.
Input Voltage: 7-28V DC (TX and RX)
Max Power Consumption: 19W (TX) and 15W (RX)
Custom/3rd Party Cables
• Test the power cable polarity with ONLY the power cable connected to Ranger. Do not connect video
cables.
• Check the power cable for shorts and proper grounding.
12G-SDI Input/Output Cables
Ranger units require the use of 12G-SDI cables to reliably transport 12G video signals and are included
as a standard item. Ensure that your cables are rated for compatibility with your camera's output.
CAUTION:
Teradek User Manual
Page 9Ranger Micro | Mk II
