Using a reverse polarity or improperly−constructed power cable can damage the product and
is not covered under warranty. To prevent the inputs from being damaged, best practice is to
plug in the power cable `rst, THEN connect the video cable from the camera before powering
on the TX unit.

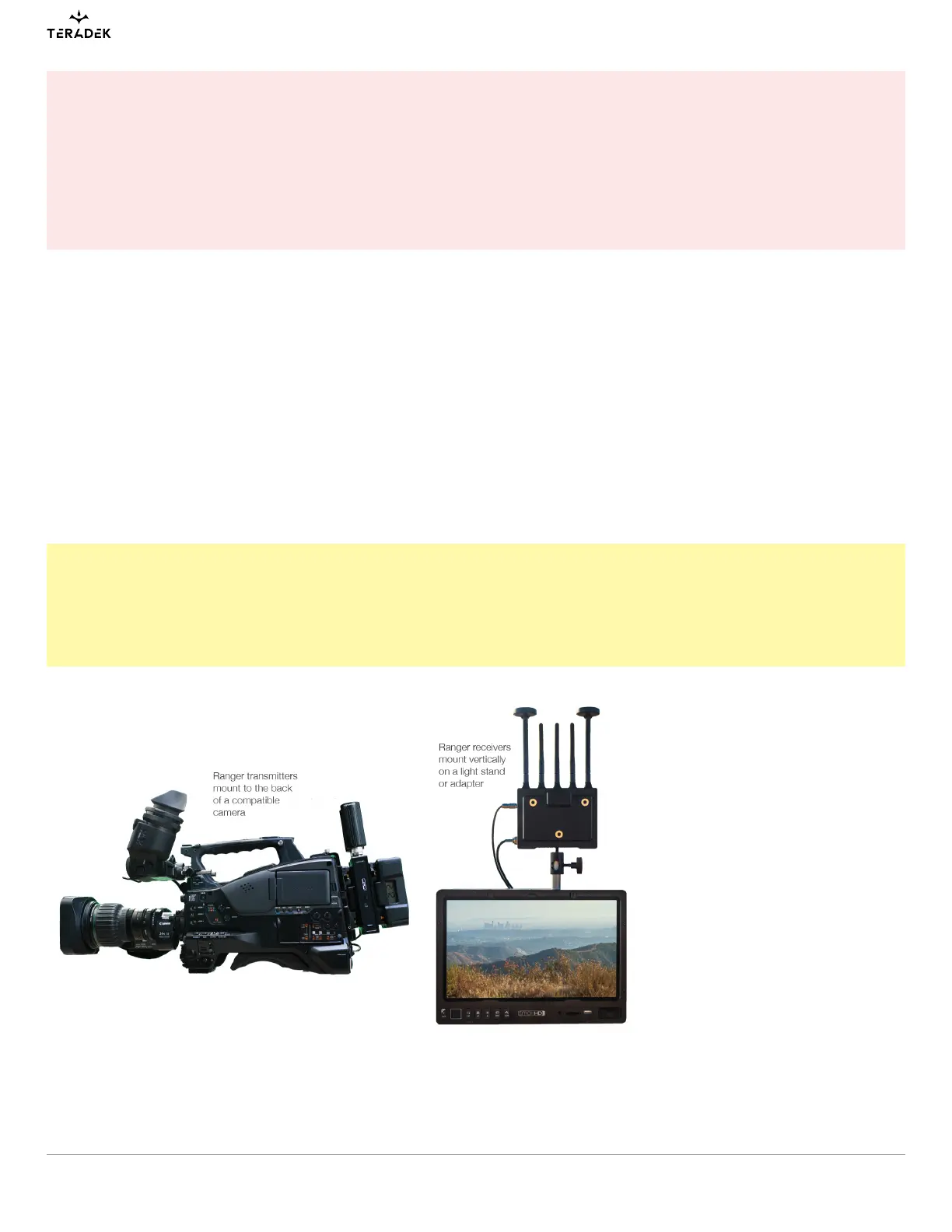

Mounting
Ranger devices have a 1/4”-20 and 3/8"-16 threaded holes on the bottom for mounting the included
light stand adapter or any other mounting accessories. Additionally, Ranger devices are equipped with a
dual-mount battery plate that allows you to attach your device to either the back of a camera, monitor, or
Array Antenna.
• Mount the transmitter onto the back of your camera keeping the antennas clear of any obstructions.
• Orient the transmitter and receiver antennas so they are parallel to each other.
• For best results, orient the transmitter antennas so each one has a clear line-of-sight to the receiver.
CAUTION: DO NOT OVERTIGHTEN SCREWS INSERTED INTO THE THREADED HOLES. Doing
so can damage the device's chassis and internal components, voiding the warranty.
Teradek User Manual
Page 10Ranger Micro | Mk II
