10

Default Jumper Settings

NOTE: These jumpers settings apply only to board 9030-7799-000 Rev G or higher.

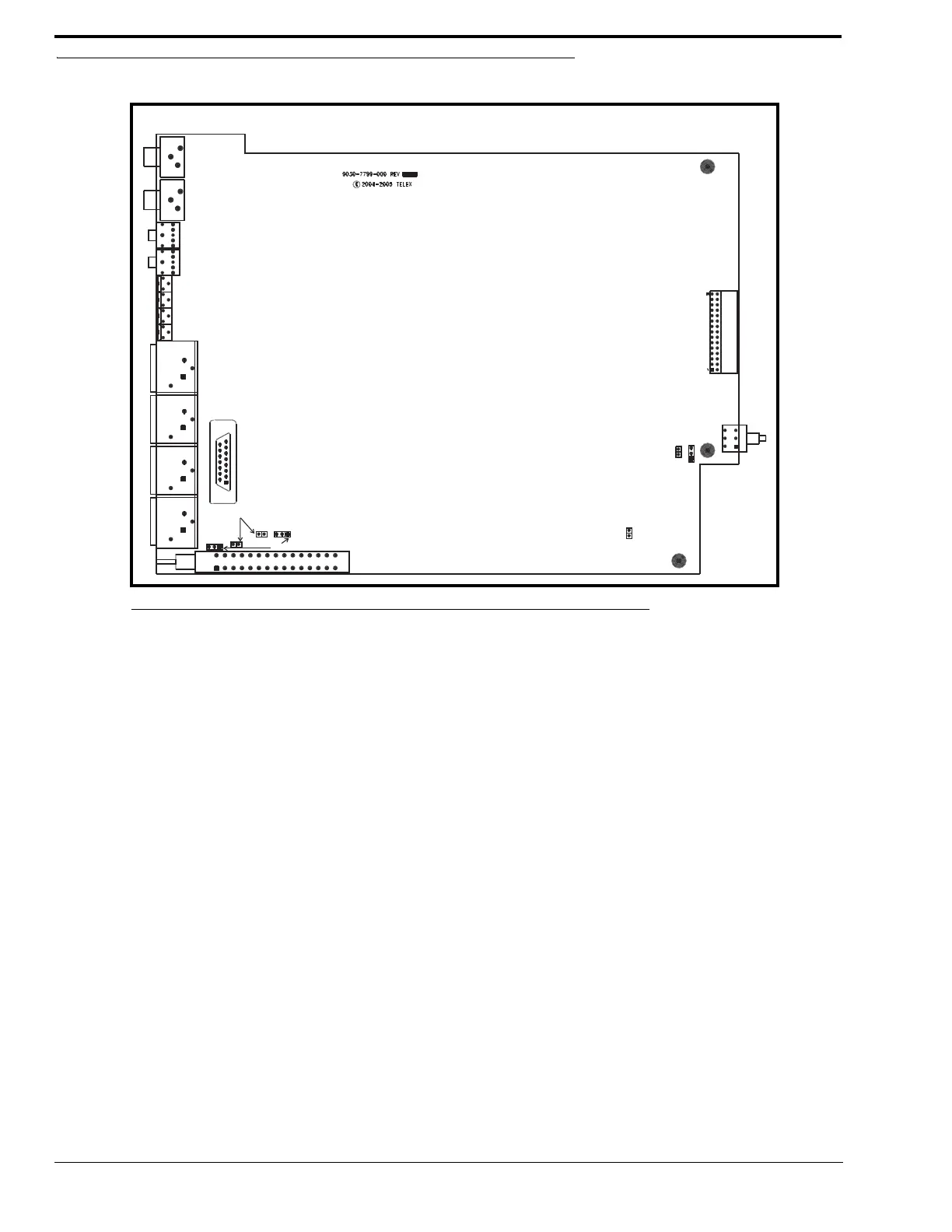

FIGURE 2. Default Jumper Settings

Description Default Position

JP1 Panel Microphone Power Connection Shorted on Pins 1&2

JP2 Headset Microphone Power Connection Shorted on Pins 1&2

JP3 Channel 2 Line Connection Format Select Shorted on Pins 1&2

JP4 Channel 4 Line Connection Format Select Shorted on Pins 1&2

JP5 Panel Microphone Audio Connection Shorted on Pins 2&3

JP6 Channel 1 Line Connection Format Select Shorted on Pins 1&2

JP7 Channel 3 Line Connection Format Select Shorted on Pins 1&2

JP6

JP3

JP4

JP7

JP2

JP1

JP5

pin 1

pin 1

pin 1

pin 1

pin 1
