EN
19
- Band: Terr, Sat
- Plan: Selects the channel plan
- Powering: Select the powering of the LNB if
needed.
- DiSEqC: Select the SAT of the DiSEqC
command.
- SCR (only satellite band): Selects the SCR
parameters (multiswitch, standard and slots)
When a slot is enabled (for example slot 3,
freq. 1210MHz), the meter will tune into the
slot frequency (1210MHz) and will set the slot
with the meter parameters: frequency, band
(powering), and DiSEqC. In addition, a SCR
icon will be shown in the bar at the top (SCR3)
to indicate that the slot is enabled.
While the slot is enabled, all the setting
changes of the meter, will be applied to the
currently slot (SCR3).
- Zoom: OFF, 1
st
, 2
nd
, 3
rd
, 4
th
.
Select a quadrant of the constellation to be
represented for more detailed view. Select
Zoom OFF for the full constellation.
- Tuning: Channel, Frequency
- Save datalog: Saves the current constellation
measurements. You can see the datalogs
using the remote control application.
10. Echoes
It is important to check that no echoes can cause
problems in the reception of DVB-T and DVB-T2
signals.
This feature allows you to visualize the echoes
of the received signal, helping the installer to
minimize them as much as possible for optimal
signal reception.
In addition to the echoes graph, this function
shows the channel power and MER measurements,
as well as the FFT mode, the guard interval, and the
Cell ID.
10.1. Main window

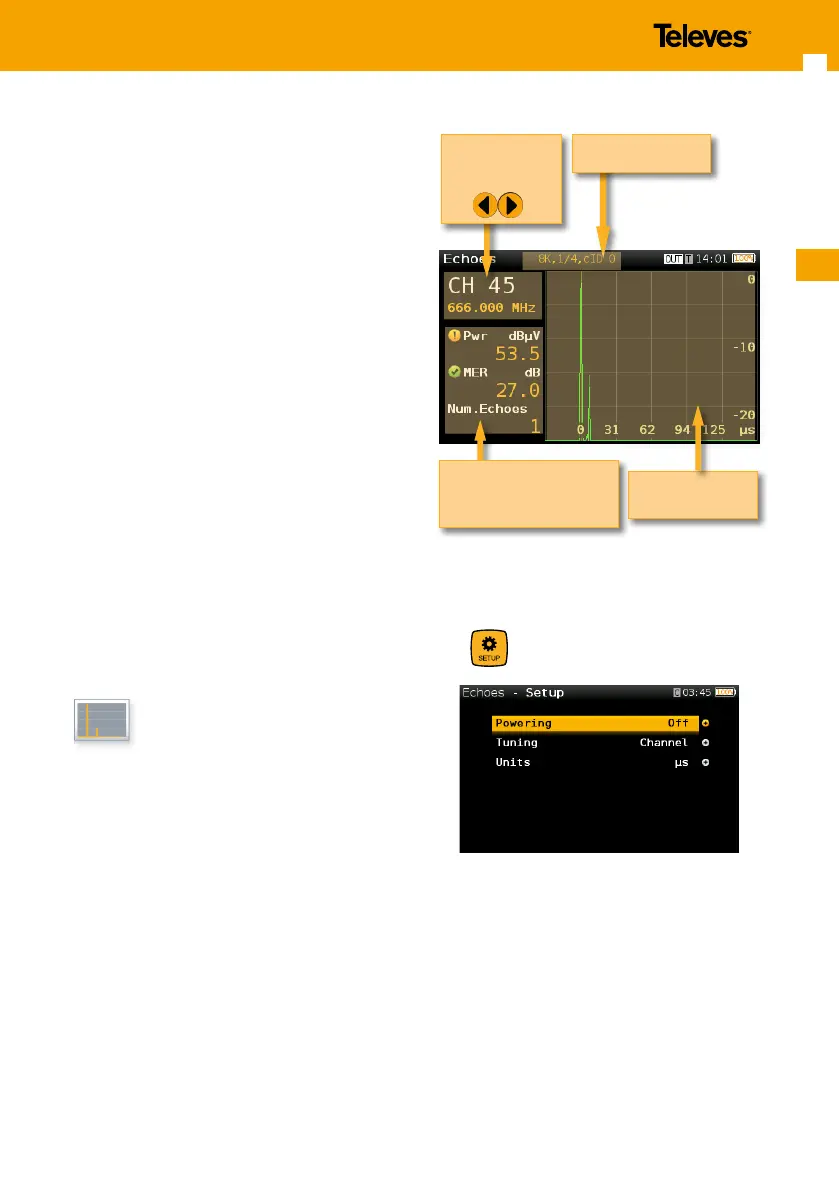

Below is a capture of a Echoes window with a brief
explanation of its features:
List of measurements with
pass/fail indicators
and number of echoes
Selected channel
Change using
Echoes graph
10.2. Setup
Press
to change Echoes options.
- Powering: O, 13V, 18V, 24V.
- Tuning: Channel, Frequency
- Units: us, Km
FFT mode, Guard
Interval, and Cell ID
