Acquisition setup
Using Autoset
Autoset is a fast way to acquire and display a waveform. Autoset automatically sets the trigger type to edge, sets the threshold level to
50% of the signal level, and analyzes the input signal and adjusts the oscilloscope acquisition, horizontal, and vertical settings to display
five to six waveform cycles. Autoset is ideal for quickly displaying a repeating signal waveform.
Complete the following steps to Autoset:
1. Connect a probe to the oscilloscope and signal source.

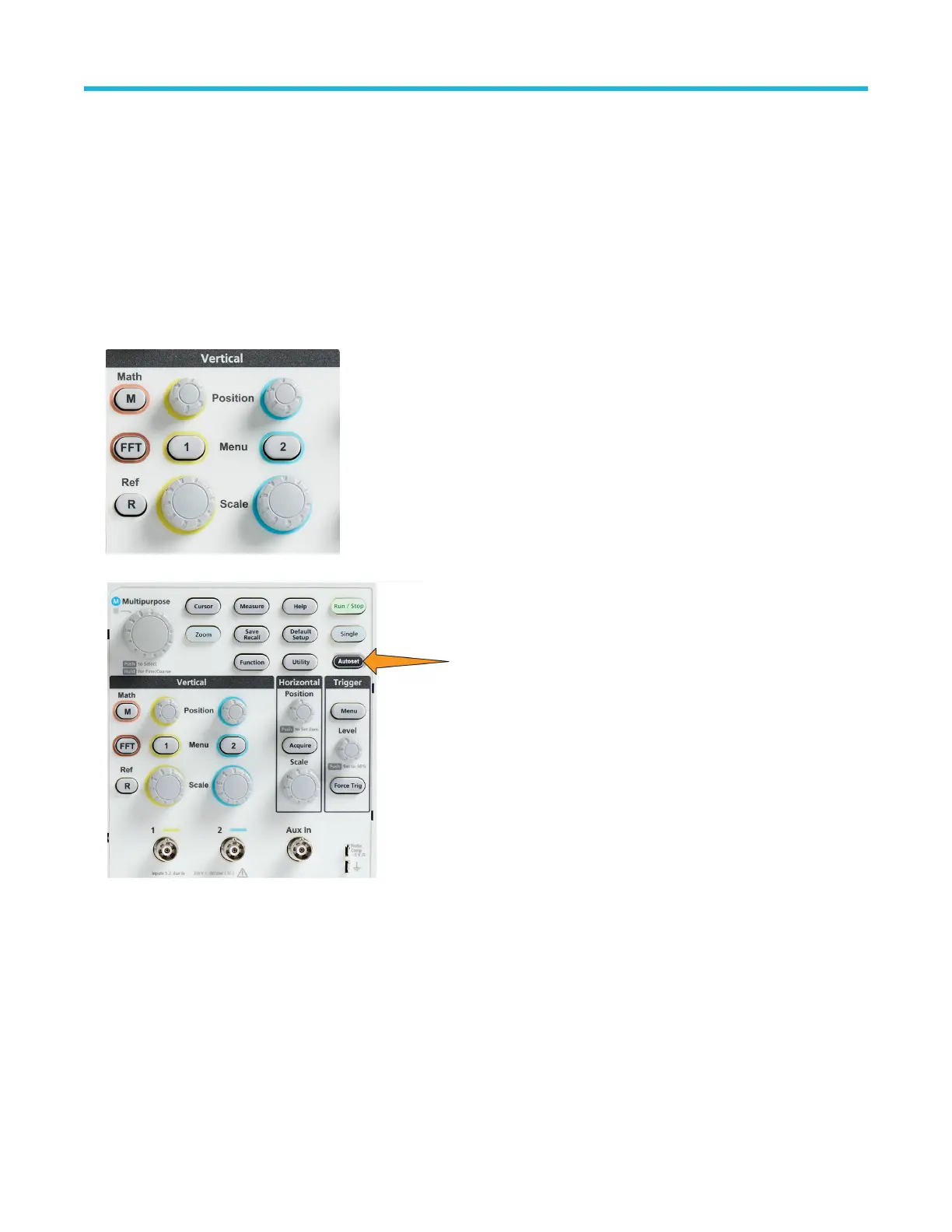

2. Push the Vertical Menu button for the channel input that you want to Autoset, to enable that channel.
3. Push Autoset. The oscilloscope takes a few moments to analyze and display the signal.
4. You can push the Undo Autoset side-menu button to undo the last Autoset.
Autoset tips
• If more than one channel is active, Autoset triggers on the lowest-numbered displayed channel, and displays all active channels from
the top to the bottom of the screen.
• Autoset always sets vertical offset to 0 V.
• Channel 1 is a special case: If all channels are off (not displayed), or channel 1 is on, Autoset attempts to detect, trigger, and display
the waveform for channel 1 even if no signal is present (resulting in a flat waveform for channel 1). It will not trigger on, or display the
other channels, even if there are signals present on those channels.
Acquisition setup
TBS1000C Series Oscilloscopes User Manual 67
