Je bekijkt pagina 63 van 146

2. Push the T

ype side-menu button.

3. Use the Multipurpose knob to select and click Runt.

4. Push the Source side-menu button and use the Multipurpose knob to select and click the channel to use as the trigger signal source.

5. Push the Polarity side-menu button and use the Multipurpose knob to select and click the runt pulse polarity (positive, negative, or

either) to trigger on.

6. Push the Thresholds side-menu button and use the Multipurpose knob to select and click the trigger levels (thresholds) to use to

detect a runt pulse:

• Click High and use the Multipurpose knob to manually set the level that defines a valid high signal threshold level.

• Click Low and use the Multipurpose knob to manually set the level that defines a valid low signal threshold level.

• Click Choose Preset and use the Multipurpose knob to set the trigger threshold levels to predefined signal logic family levels

(TTL, CMOS, ECL, and so on) or to 0.

7. Push -More- Page 1/2 side-menu button.

8. Push the Trigger When side-menu button and use the Multipurpose knob to select and click Runt Occurs to trigger on any runt

event. If triggering on a runt width, use the Multipurpose knob to select and click the runt pulse width condition to test for, and enter

the runt width time parameter.

Setting the trigger mode

Use this procedure to set the oscilloscope trigger Mode. The trigger mode sets how the oscilloscope behaves in the absence or presence

of a trigger. Trigger mode also enables the trigger holdoff function. See Trigger modes on page 54.

Trigger mode does not set the trigger conditions; those are set with the Trigger Type side-menu buttons.

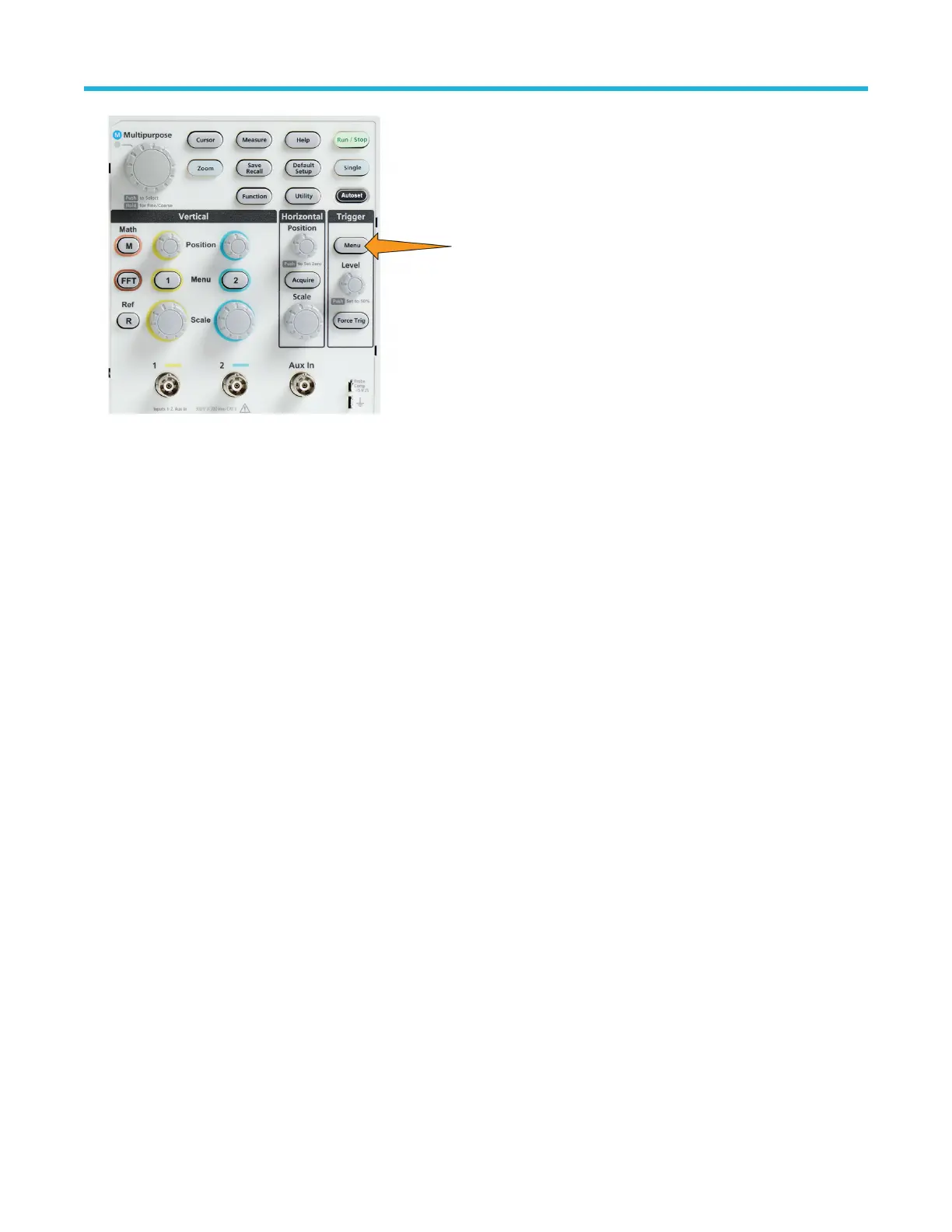

1. Push the Trigger Menu front-panel button.

Trigger setup

TBS1000C Series Oscilloscopes User Manual 65
