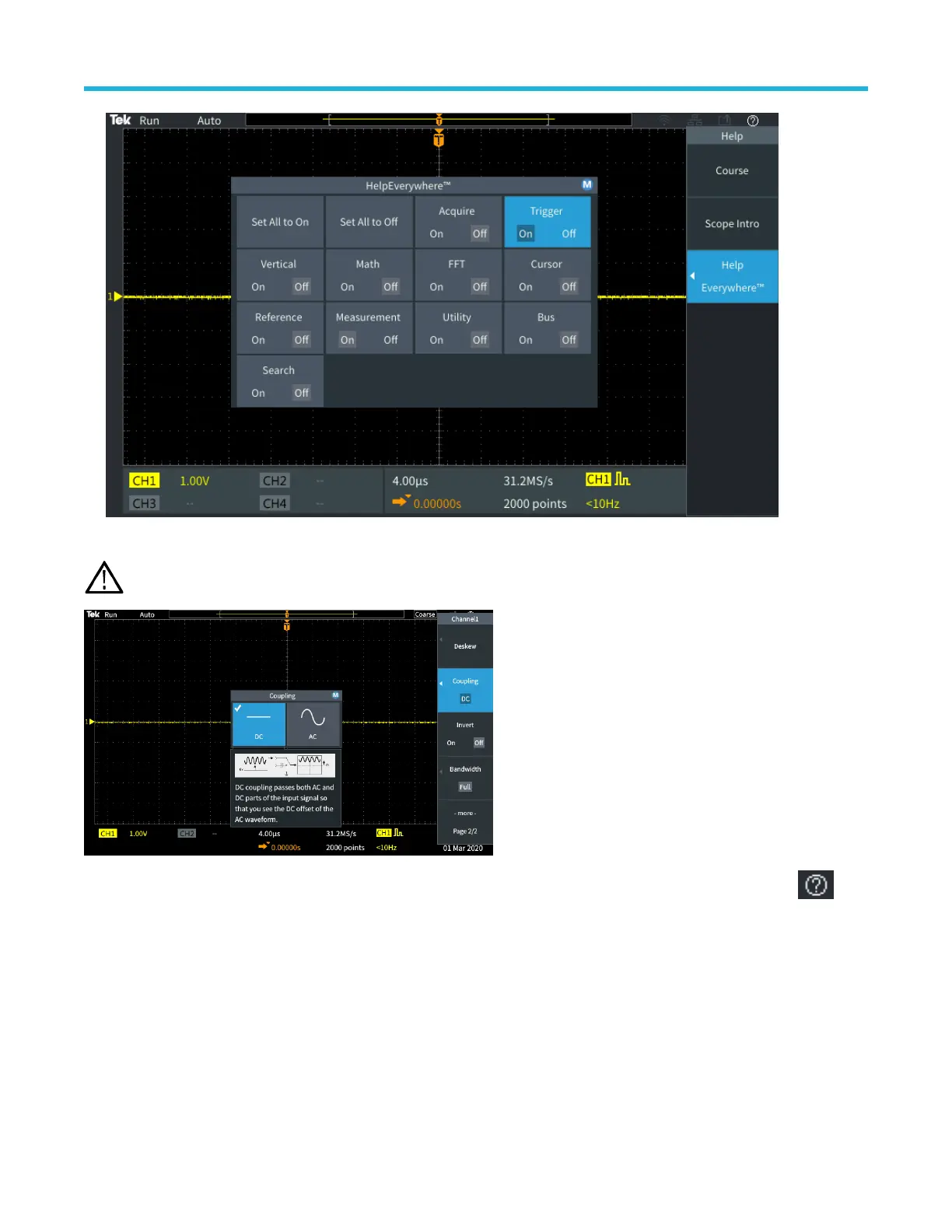

The next time you access a HelpEverywhere™ supported menu setting, the oscilloscope displays the help for that item.
Note: Y
ou may need to turn the Multipurpose knob and select another menu item to show the HelpEverywhere™ content.
When any HelpEverywhere™ content is enabled, the HelpEverywhere™ icon is highlighted (in upper right corner of screen).
Signal path compensation SPC
Signal Path Compensation (SPC) corrects for DC level inaccuracies in the internal signal path caused by temperature variations and/or
long-term signal path drift. You should run the SPC whenever the ambient (room) temperature has changed by more than 10 °C, or once
a week if you use vertical scale settings of 5 mV per division or less. Failure to run a SPC may result in the oscilloscope not meeting
warranted performance levels at those volts per division settings.
To compensate the signal path for all channels:
1. Power on and warm up the oscilloscope for at least 20 minutes.
Getting acquainted with the oscilloscope
TBS1000C Series Oscilloscopes User Manual 47
