Furniture doorFurniture door

11

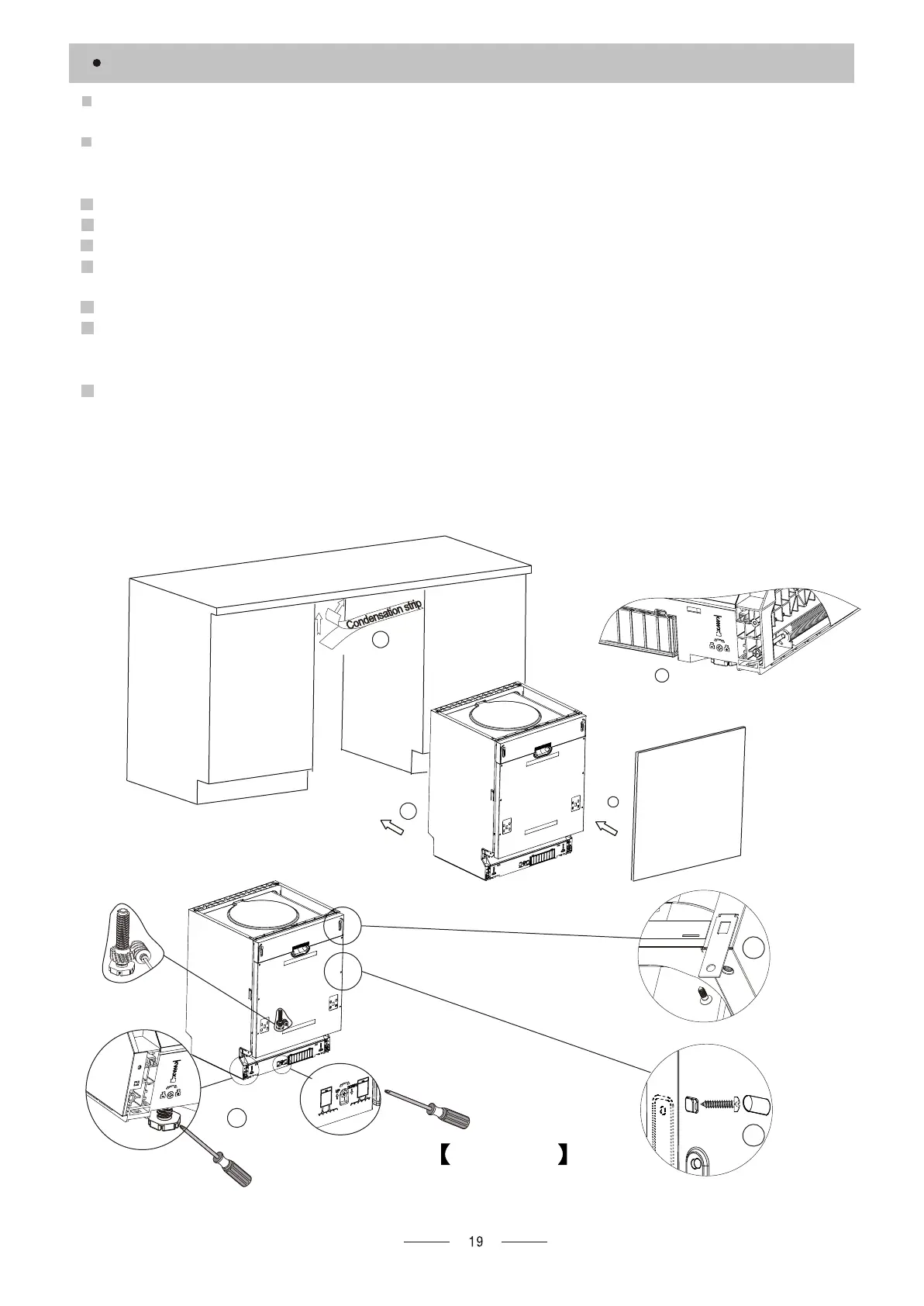

Dishwasher installation steps

1 Install the furniture door to the outer door of the dishwasher using the brackets provided. Refer

to the template for positioning of the brackets.

2 Adjust the tension of the door springs by using an Allen key turning in a clockwise motion to

tighten the left and right door springs. Failure to do this could cause damage to your dishwasher

(Illustration 2).

3 Connect the inlet hose to the cold water supply .

4 Connect the drain hose. Refer to diagram.(Figure 6)

5 Connect the power cord.

6 Affix the condensation strip under the work surface of cabinet. Please ensure the condensation

strip is flush with edge of work surface.

7 Place the dishwasher into position.(Illustration 4)

8 Level the dishwasher. The rear food can be adjusted from the front of the dishwasher by turning

the Allen screw in the middle of the base of dishwasher use an Allen key (Illustration 5A). To adjust

the front feet, use a flat screw driver and turn the front feet until the dishwasher is level (Illustration 5B).

9 The dishwasher must be secured in place. There are two ways to do this:

A. Normal work surface:Put the installation hook into the slot of the side plane and secure it to the

work surface with the wood screws (Illustration 6).

B. Marble or granite work top:Fix the side with Screw. (Illustration 7).

22

55

B

33

66

77

Figure 7

AA
