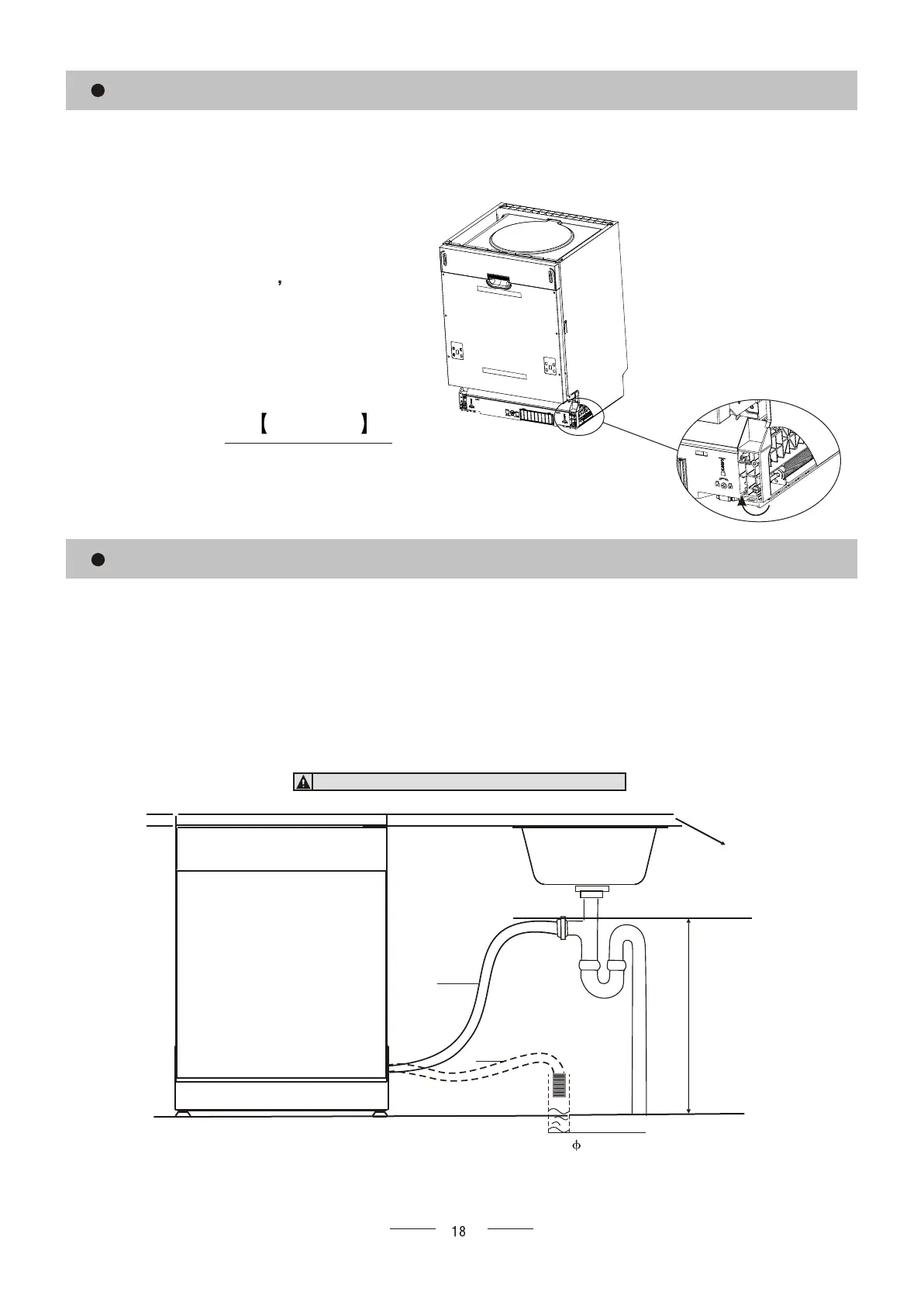

Connection of drain hoses

Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to

avoid bending or crimping it. The top of the hose must be less than 1000mm.

MAX 1000mm

A

Counter

Front

Drain pipe

NOTE

The top of the hose

must be less than

1000mm.

40mm

B

PLEASE FIX THE DRAIN HOSE EITHER WAY OF A, BPLEASE FIX THE DRAIN HOSE EITHER WAY OF A, B

Tension adjustment

of the door spring

Figure5

Tension adjustment of the door spring

The door springs are set at the factory to the proper tension for the outer door.

If aesthetic wooden panel are installed, you will have to adjust the door spring tension.

Rotate the adjusting screw to drive the adjustor to strain or relax the steel cable

(see figure 5).

Door spring tension is correct when

the door remains horizontal in the

fully opened position yet rises

to a close with the slight lift of a

finger.
