9 MD4 HD NATIVE User Manual
Lo Cut
Range: O, 2 Hz to 200 Hz, with increasing step width as frequency increases.
This Low Cut lter is used to remove potential noise at low frequencies
Detector Crest
Range: Peak, 6, 10, 12, 14, 16, 20, 24, RMS
Select the Sidechain level detection method of the compressor between RMS and
PEAK for all bands. The dB steps between RMS and Peak are the number of dBs
needed for a peak-value to override the RMS measurement, and can be perceived
as a Threshold setting.
Example:
If the Crest parameter is set to 6 dB, the Compressor will respond to RMS values
and to peaks 6 dB higher than the current RMS value.
Reference Level
Range: -24 dBFS to 0 dBFS in 0.5 dB steps
This parameter sets the reference level in the algorithm.
The reference level is the level at which the Compressor Threshold parameters
will start operating when set to 0 dB.
For example, in order to keep “unity gain,” it can be benecial to set the reference
level close to the RMS level you are aiming for, and then use the Threshold
parameter to set the amount of compression.
Look-ahead Delay
Range: 0 to 15ms
<2ms in 0.1ms steps
>2ms in 0.5 ms steps
Sets the look ahead Delay of the signal compared to the Sidechain signal. This
enables the compressor section to become more responsive to the incoming
signal, thereby performing a more precise compression.

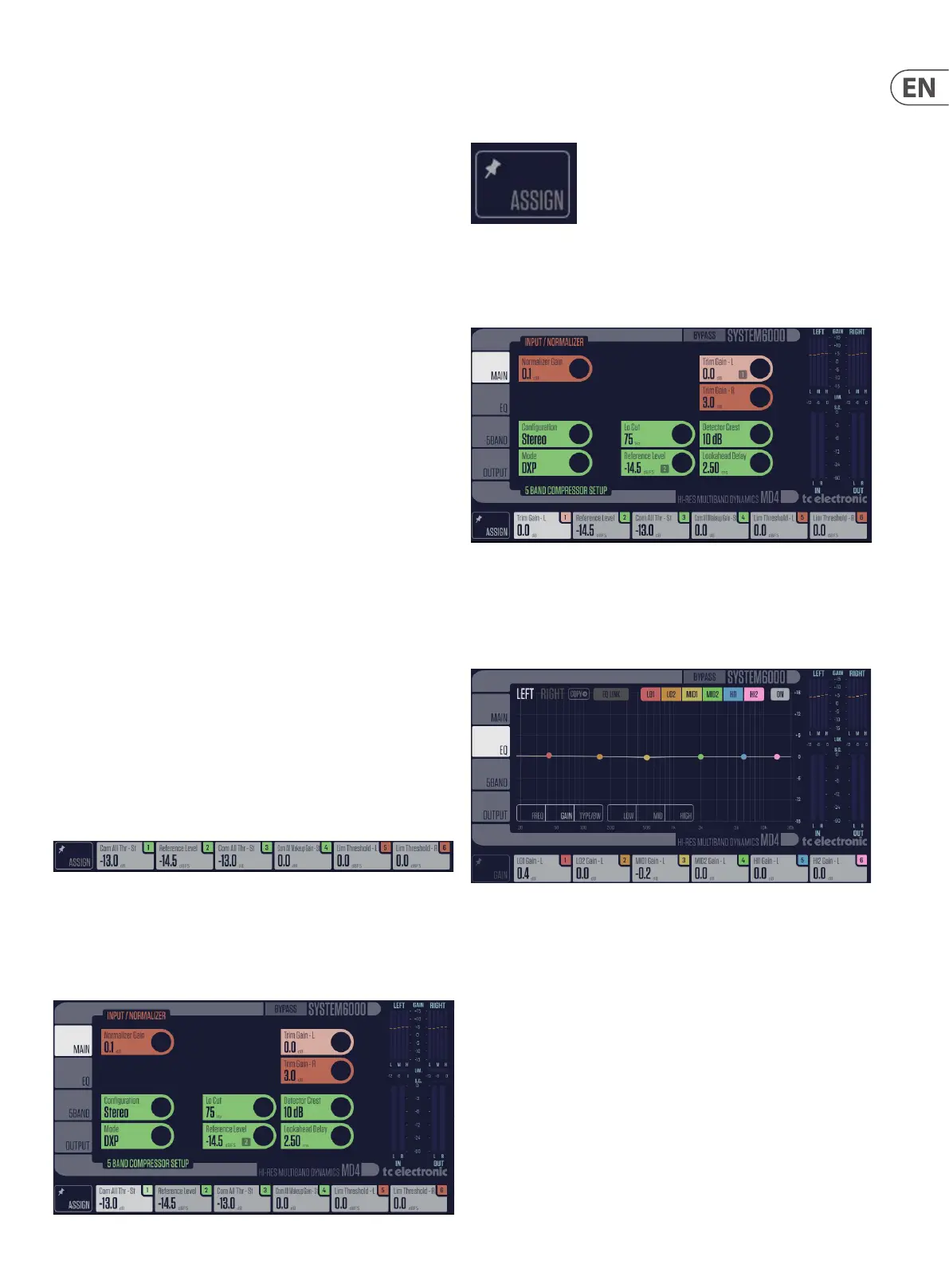

5.2.1 Focus Fields
Each of the six Focus Fields along the bottom can be assigned to any of the
available controls. These useful assignments remain visible when you switch to
dierent pages. For example, you can adjust the Compressor Threshold while you
are on the EQ page.
Click on ASSIGN in the lower left, and you will notice that the control knobs will
become blank. (This is a good reminder that you are in ASSIGN mode.) Click and
drag any of the controls and drop it down onto the desired Focus Field 1 to 6.
You can also click the desired focus eld and then click the control to assign to it.
When nished assigning, select the ASSIGN button again.
Click on the PIN Icon inside the ASSIGN button, and the Assigned Focus Fields will
remain when presets are changed. The numeric values within the Focus Fields
will change to the new preset values.
In the example below, Focus Field 1 has become Trim Gain Left by dragging the
control down and releasing it over the Focus Field 1 button. It will stay like this,
even when you move to the EQ page or Output page. Note that Focus Field 1 is
highlighted in color while it is being assigned, as is the Trim Gain L control
In the EQ and 5 Band Compressor pages, the Focus Fields will show other
parameters if any of the buttons are selected in the lower area of each page. For
example, here are the Focus Fields when GAIN has been selected in the row of
buttons below the EQ graph. To return to your assigned Focus Fields, deselect
GAIN by pressing it again.
