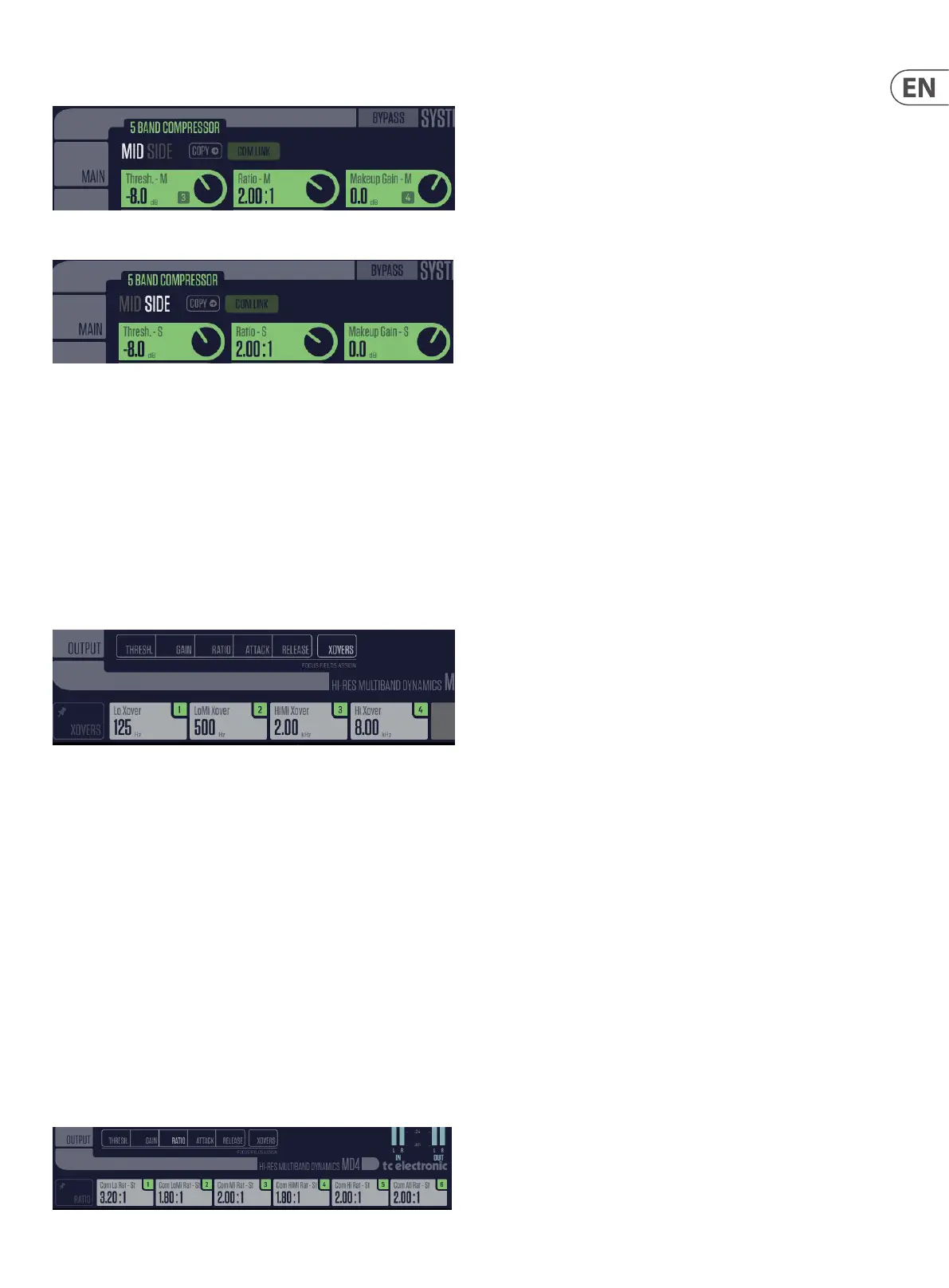

13 MD4 HD NATIVE User Manual
Turn o COM LINK to allow separate compressor control of the Mid and Side.
Select SIDE, and the Compressor controls will aect the Side instead of MID.
If at any time you want the SIDE control settings to be the same as the MID
settings, press the COPY button. (It will not copy from SIDE to MID).
X Over
The compressor operates in 5 bands, using a low crossover, low-mid, high-
mid, and high crossover. The Gain Reduction meters show these 5 bands, with
markings for L, M, and H.
Select X OVER and the crossover frequencies can be viewed and adjusted in the
rst 4 Focus Fields.
The 4 crossover frequencies can be set to OFF (turn all the way down) in order to
run MD4 HD NATIVE as a 4-band, 3-band, 2-band, or full band compressor.
Controls
Use the rotary Compressor control knobs to adjust the overall Threshold, Makeup
Gain, Ratio, Attack and Release. The knob values correspond to the Comp All
values you will see in the 6th Focus Field shown below.
If you select from the row of Threshold, Gain, Ratio, Attack and Release buttons,
or if you just click on any rotary control, the Focus Fields will show the Com
Lo, Com LoMi, Com Mi, Com HiMi, Com Hi and Com All values for the selected
parameter. This allows you to adjust the compressor parameters for the each
of the ve bands. Adjusting the Com All value in the 6th Focus Feild adjusts the
value of all bands. However, the Com Mid value only adjusts itself and the Com
All value.
The example below shows RATIO selected, showing the separate ratio values in
the Focus Fields for each band, and the "Com All" parameter in the 6th Field. In
this example, the Lo band ratio is 3.20:1 and the Mid and Hi are 2.00:1.
The Mid Band value follows the Com All value, and is the same value as the rotary
knob. If you vary Com All, then all ve bands will change, but keeping in the same
relative distances from each other.
Threshold
Range: -25 dB to 20 dB in 0.5 dB steps
Relative to the Ref.Level setting (Main page).
When the Input signal exceeds the Threshold value, the Compressor starts to
reduce the dynamic content of the signal according to the set Ratio.
Makeup Gain
Range: O, and -12 dB to 12 dB in 0.1 dB steps.
Manual Makeup-gain for each compression band.
Where the Gain controls in the Main page compensate for the total gain
reduction caused by the Compressor, the Makeup Gain in the Compressor page is
used as additional gain control on the individual bands.
Ratio
Range: O to Innity
Species the Ratio of the performed compression.
Example: With a Ratio setting of 2:1 the compressor will reduce every 2 dB above
the Threshold point to only 1 dB. This changes to STEER when in DXP mode.
Attack
Range: 0.3 to 100ms
The Attack time is the time the Compressor uses to reach the gain reduction
specied by the Ratio parameter.
Example: If the Input signal increases by 4 dB above the set Threshold, with a
Ratio set to 2:1 and the Attack time is set to 20ms, then the Compressor will use
20ms to reach a Gain reduction of 2 dB.
Release
Range: 20ms to 7s
The fallback time. This is the time it takes for the Compressor to release the
attenuation of the signal.
Defeat Threshold
Range: -30 dB to -3 dB in 0.5 dB steps
The Defeat Threshold is used in combination with the Defeat Ratio to expand
lower levels
Defeat Ratio
Range: O to 1: Innity
Species the Ratio of the performed compression.
The Defeat Ratio is used in combination with the Defeat Threshold to expand
lower levels
Steer (DXP mode only, it takes the place of the Ratio control)
Range: O, -11 to +10, NORMAL in center position
DXP processing enables boost of only low level material, without aecting
material that is already loud enough. The boost is applied to levels below the
Reference level, and reaches its max at Threshold. The more Steer, the more audio
is steered towards the Ref Level. For more information about this parameter, see
the previous description of DXP Mode.
Wet Gain (Parallel or Parallel UL mode only)
Range: O, -40 dB to 6 dB in 0.5 dB steps
Only active in Parallel or Parallel UL mode.
Use this to adjust the compressed signal's contribution to the parallel mix. "0 dB"
means there is an equal amount of dry and compressed signal.
