62 TASCAM FR-AV4 V1.00
4. Connections
4-1.
Mics
Make input settings according to the connected
equipment. See “Making input settings for each
input” on page 71 for details.
Connecting microphones

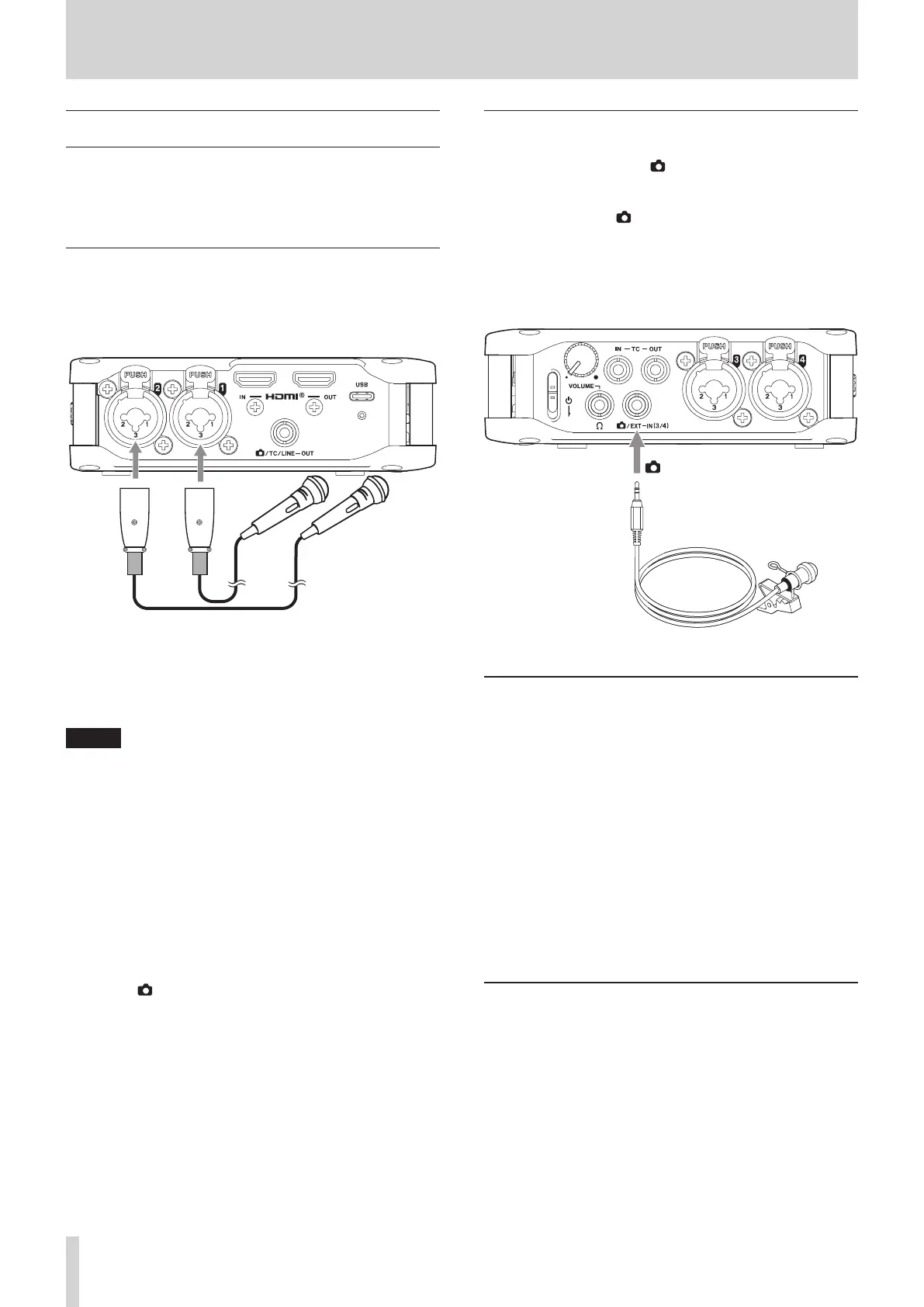

Example connecting to input jacks 1–2
Left side panel
Mics
After connecting a mic, press the MENU button
and select “MIC” for the INPUT setting. (See “Making
input settings for each input” on page 71.)
NOTE
o Input jacks 3–4 are on the right side. Set them in
the same way as necessary.
o Make phantom power settings when using a mic
that requires phantom power. (See “Using phantom
power” on page 17.)
o When TRS plugs are connected to input jacks 1/2
or 3/4, phantom power will not be supplied.
o When connecting a device with unbalanced output,
use the /EXT/TC IN jack.
Connecting mics that use plug-in power
Connect the mic to the /EXT/IN (3/4) jack.
Stereo and mono mics are supported. Signals
connected to the /EXT IN (3/4) jack will be input
on input channels 3/4 of this unit.
See “Setting plug-in power” on page 75 for details
about plug-in power settings.
/EXT IN (3/4) jack
Mic that requires plug-in power
Connecting mid-side mics
Mid-side mics can be connected to input jacks 1 and
2 or 3 and 4.
Connect the mid-side mic mid to input jack 1 or 3
and the side to input jack 2 or 4.
After connecting the mics, press the MENU button
and set MS DECODE/AMBISONICS > MS DECODE to
“REC” or “MONITOR”.
See “Using the mid-side decoding function” on page
85 for details about recording with mid-side
mics.
Connecting ambisonic microphones
These mics can be connected to input jacks 1, 2, 3
and 4.
After connecting the mics, press the MENU button
and set MS DECODE/AMBISONICS > AMBISONICS.
See “Ambisonic mode” on page 131 for details
about recording with ambisonic mics.
