TASCAM FR-AV4 V1.00 63
4. Connections
Connecting other equipment

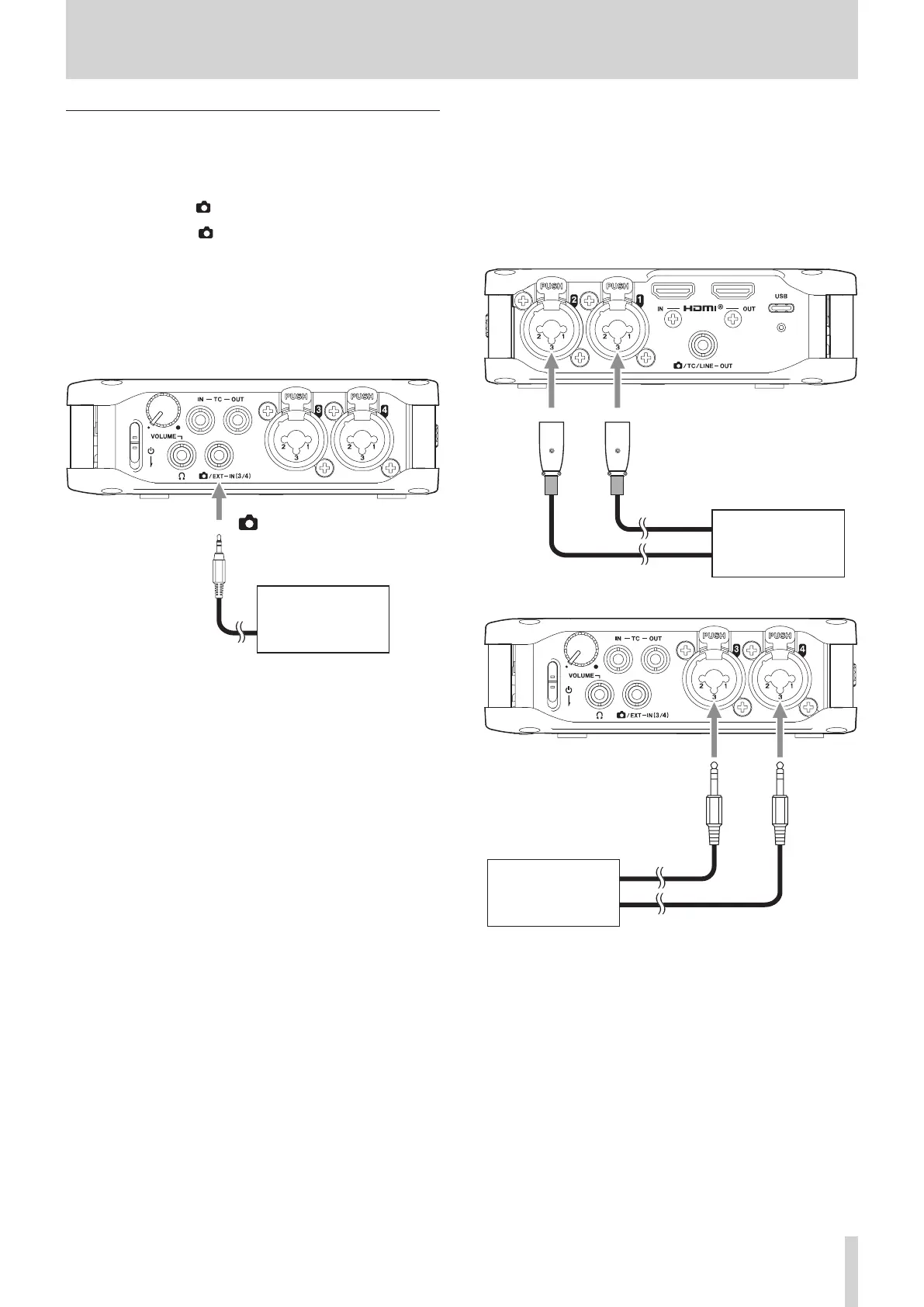

When connecting 3.5mm stereo mini cables
Connect it to the /EXT/IN (3/4) jack. Signals
connected to the /EXT IN (3/4) jack will be input
on input channels 3/4 of this unit.
After connecting, press the MENU button and select
“EXT” for the INPUT > INPUT setting. (See “Making
input settings for each input” on page 71.)
Audio device or
another external
device
/EXT IN (3/4) jack
Right side panel
When connecting XLR plugs
Connect them to the 1–4 input jacks.
After connecting, press the MENU button and select
“LINE” for the INPUT > INPUT setting. (See “Making
input settings for each input” on page 71.)
XLR plugs
Audio device or
another external
device
Input jacks 1/2
Left side panel
XLR plugs
Audio device or
another external
device
Input jacks 3/4
Right side panel
XLR jacks: XLR-3-31 equivalent (1: GND, 2: HOT,
3: COLD)
TRS jacks: 6.3mm (1/4”) standard TRS jacks
(Tip: HOT, Ring: COLD, Sleeve: GND)
