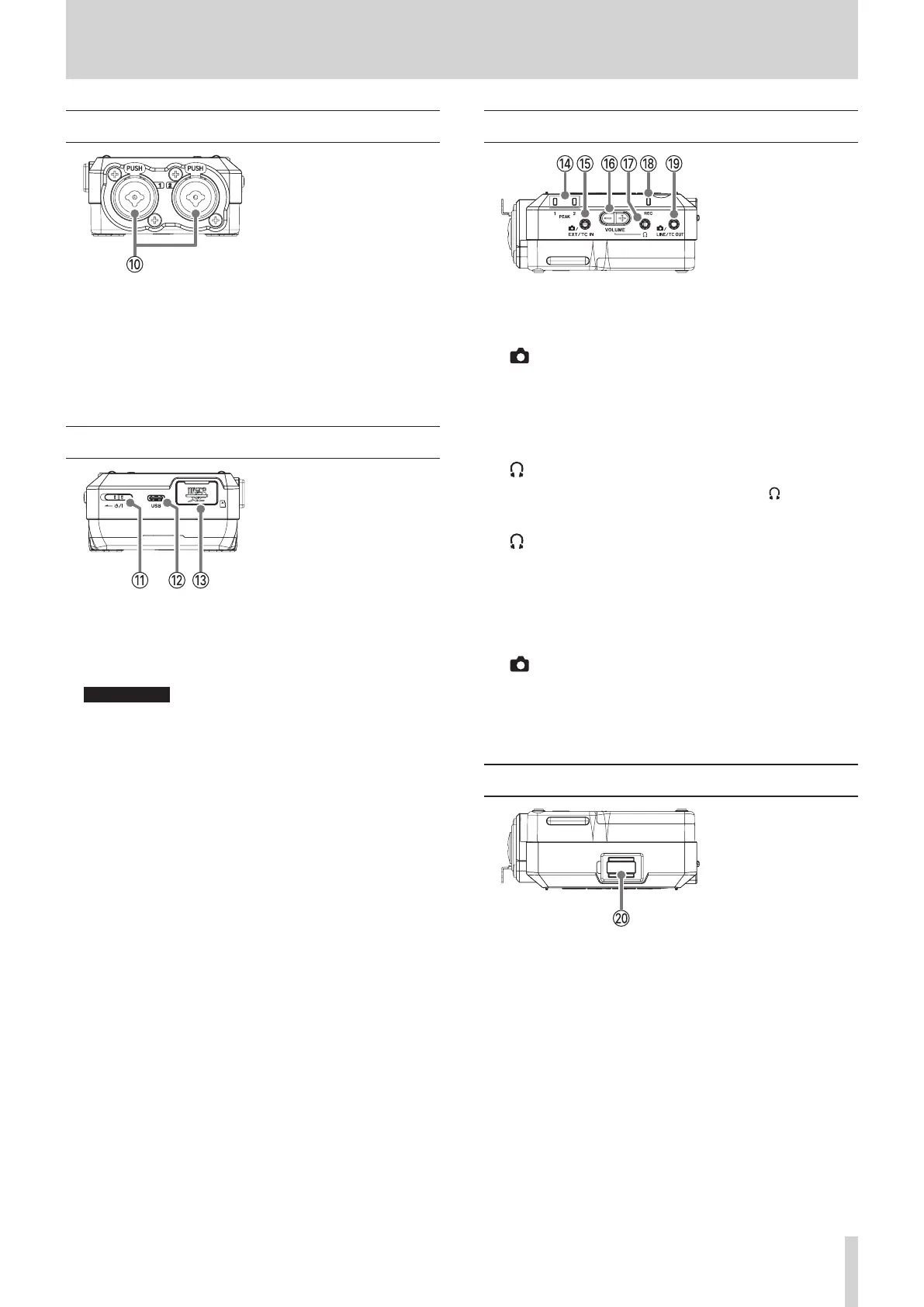

TASCAM FR-AV2 V1.00 15
3-5. Front panel
r PEAK 1/2 indicators
This lights when the input level exceeds the peak level.
t /EXT/TC IN jack
Use a stereo mini jack cable to connect this to the line output
jack of an audio device, for example, an external mic (3.5 mm
TRS) that supports plug-in power, or a timecode transmitting
device.
y (headphone) volume
Use this to adjust the volume output from the (headphone)
jack and for wireless audio monitoring.
u (headphone) jack
Connect headphones to this jack.
i REC indicator
This blinks when in recording standby and lights when
recording.
o /LINE/TC OUT jack
Use a stereo mini jack cable to connect this with the line
input jack of another device or with a device receiving
timecode.
3-6. Rear panel
p Bluetooth adapter connector
Connect a dedicated Bluetooth adapter (AK-BT2, sold
separately) here.
3. Names and functions of parts
3-3. Left side
0 Input jacks 1/2 (Inputs 1/2)
These balanced analog input combine XLR mic and standard
TRS jacks.
XLR (1: GND, 2: HOT, 3: COLD)
TRS (Tip: HOT, Ring: COLD, Sleeve: GND)
3-4. Right side
q
¤
switch
Slide this switch toward the ? icon to turn the unit on and
o (put it into standby).
V
CAUTION
Before turning the unit on, lower the volumes of connected
equipment to their minimum levels.
Failure to do so might cause sudden loud noises, which
could harm hearing or result in other trouble.
w USB Type-C port
This is a Type-C USB port.
Use a commercially-available USB cable to connect a computer
or smartphone. (“Connecting computers and smartphones” on
page 27)
When using an AC adapter, connect it to this port. (“Using an
AC adapter (sold separately)” on page 17)
e microSD card slot
Insert microSD cards into this slot.
