User Manual
© 2019 AMETEK Electronic Systems Protection / Technical Support: 1-800-645-9721 / ametekesp.com 20
iii. Up ▲ and Down ▼ Arrow buttons adjust the vertical axis scaling of each
channel.
iv. Left ◄ and Right ► Arrow buttons adjust the horizontal (time) axis
scaling.
v. While in normal operation, pressing the Wait button will freeze the
currently displayed waveform.

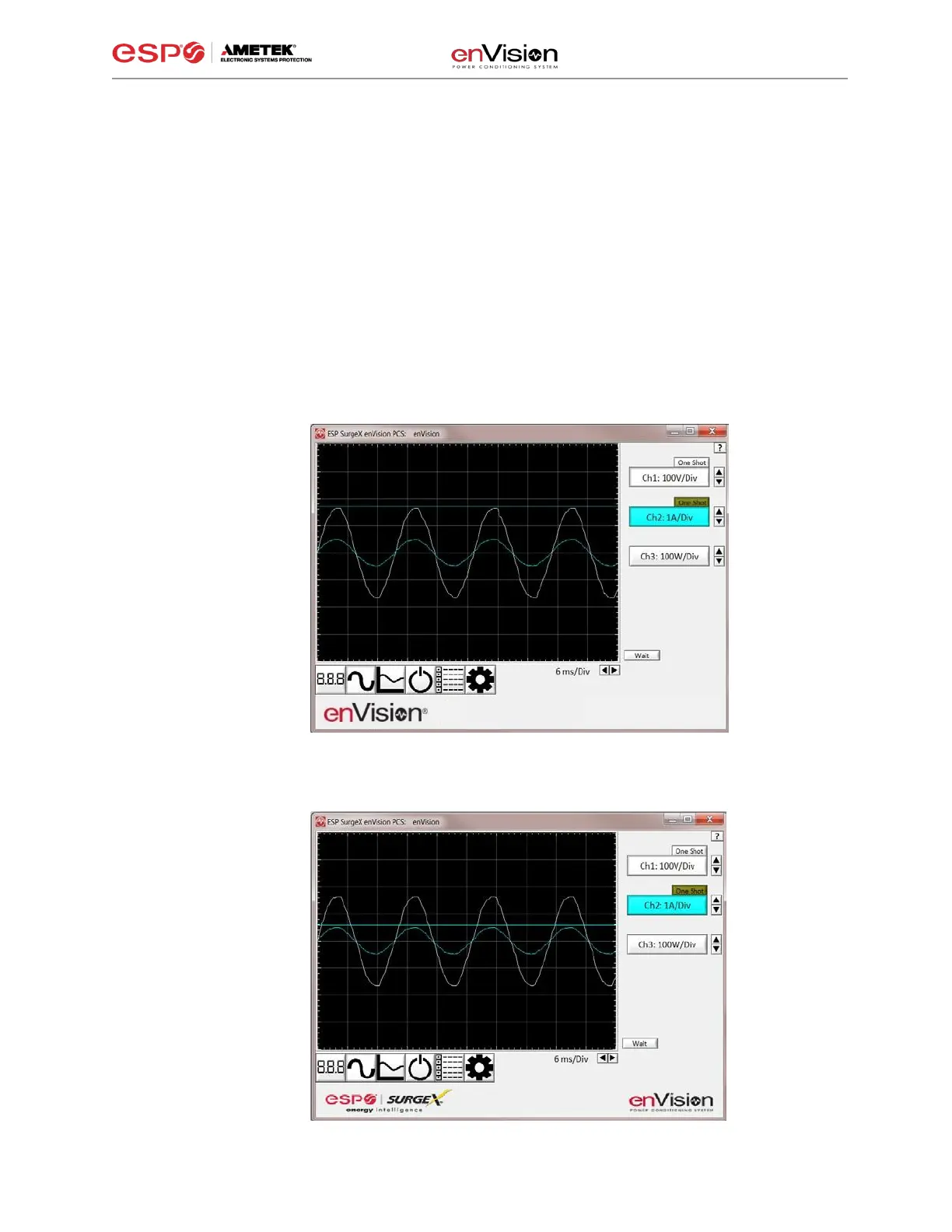

vi. One Shot Trigger Function
•
The scope may be set to acquire and hold a waveform display,
triggered by either Voltage or Current level.
•
Press the One Shot button above the desired channel. A trigger
level cursor will appear on the display.
•
Next, Drag the trigger level cursor to the desired amplitude and
press the Wait button
•
If the Voltage of Current exceeds the trigger level, the scope will
hold the display
