User Manual
© 2019 AMETEK Electronic Systems Protection / Technical Support: 1-800-645-9721 / ametekesp.com 12

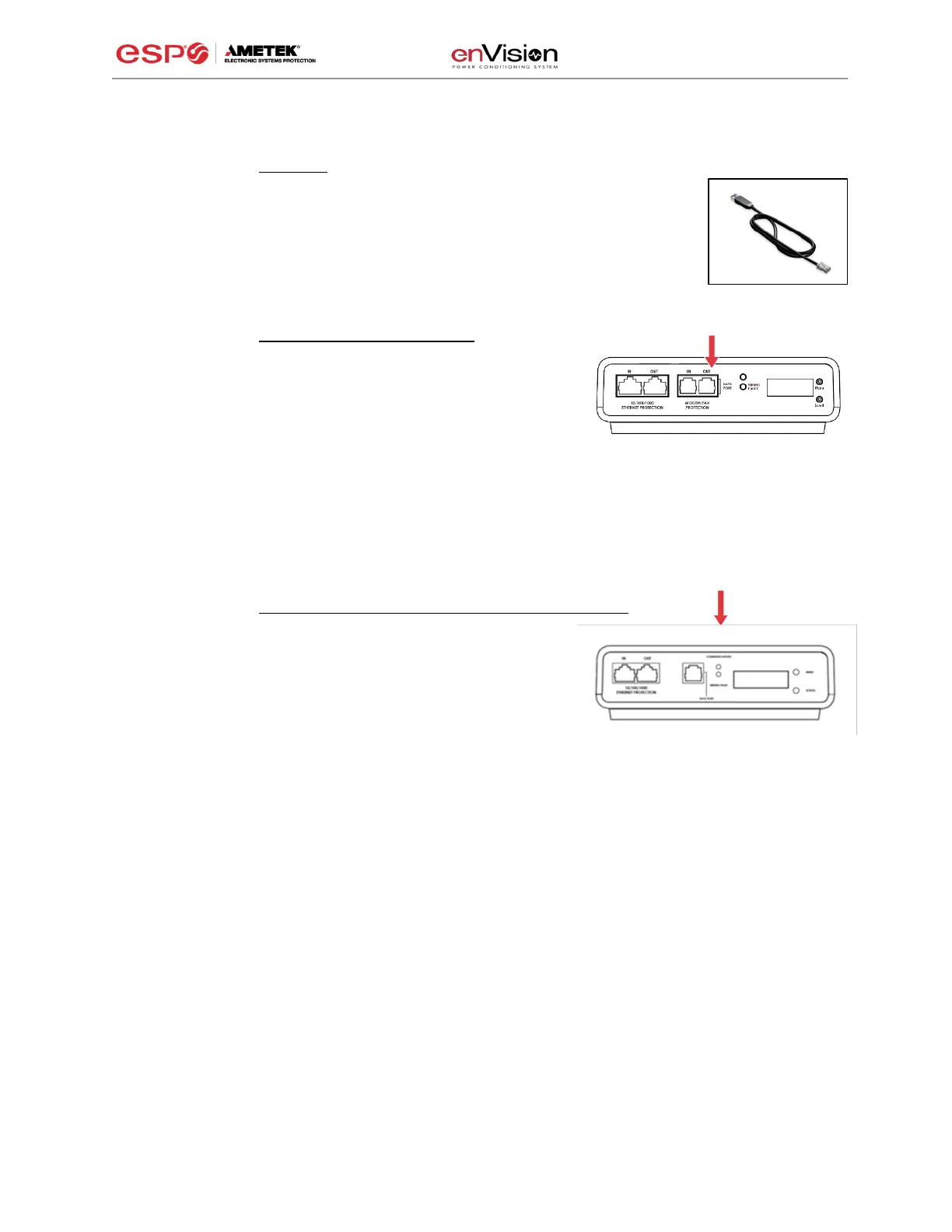

2. Data Interface Cable
a. Overview
i. The Data Interface Cable consists of a USB
connection on one end, and a RJ-11 connection on
the opposite end.
ii. The USB connection plugs into an available USB port
on your PC. The RJ-11 connection plugs into the RJ-
11 “OUT” Jack (labeled “Data Port”) on the enVision
Filter, which is the jack closest to the LCD and buttons.
b. Instructions for Data Retrieval
i. Disconnect any protected Modem/Fax
lines connected to the “IN” and “Out”
RJ-11 modular jacks on the Filter.
Ethernet connections (RJ-45) may
remain in place.
ii. Connect the Data Interface Cable into
the USB port on your PC.
iii. Connect the Data Interface Cable into the RJ-11 “OUT” Jack (labeled “Data
Port”) on the Filter. It is the jack closest to the LCD and buttons.
iv. Open the Diagnostic Software.
v. When you are finished, be sure to re-connect the Modem/Fax lines to the “IN”
and “Out” RJ-11 modular jacks on the Filter.
c. Instructions for EV-23010/EV-23016 Data Retrieval
i. Ethernet connections (RJ-45) may
remain in place.
ii. Connect the Data Interface Cable into
the USB port on your PC.
iii. Connect the Data Interface Cable into
the RJ-11 Jack (labeled “Data Port”).
It is the jack closest to the LCD and
buttons.
iv. Open the Diagnostic Software.
v. When you are finished, remove the Data Interface Cable from the RJ-11 Jack.
