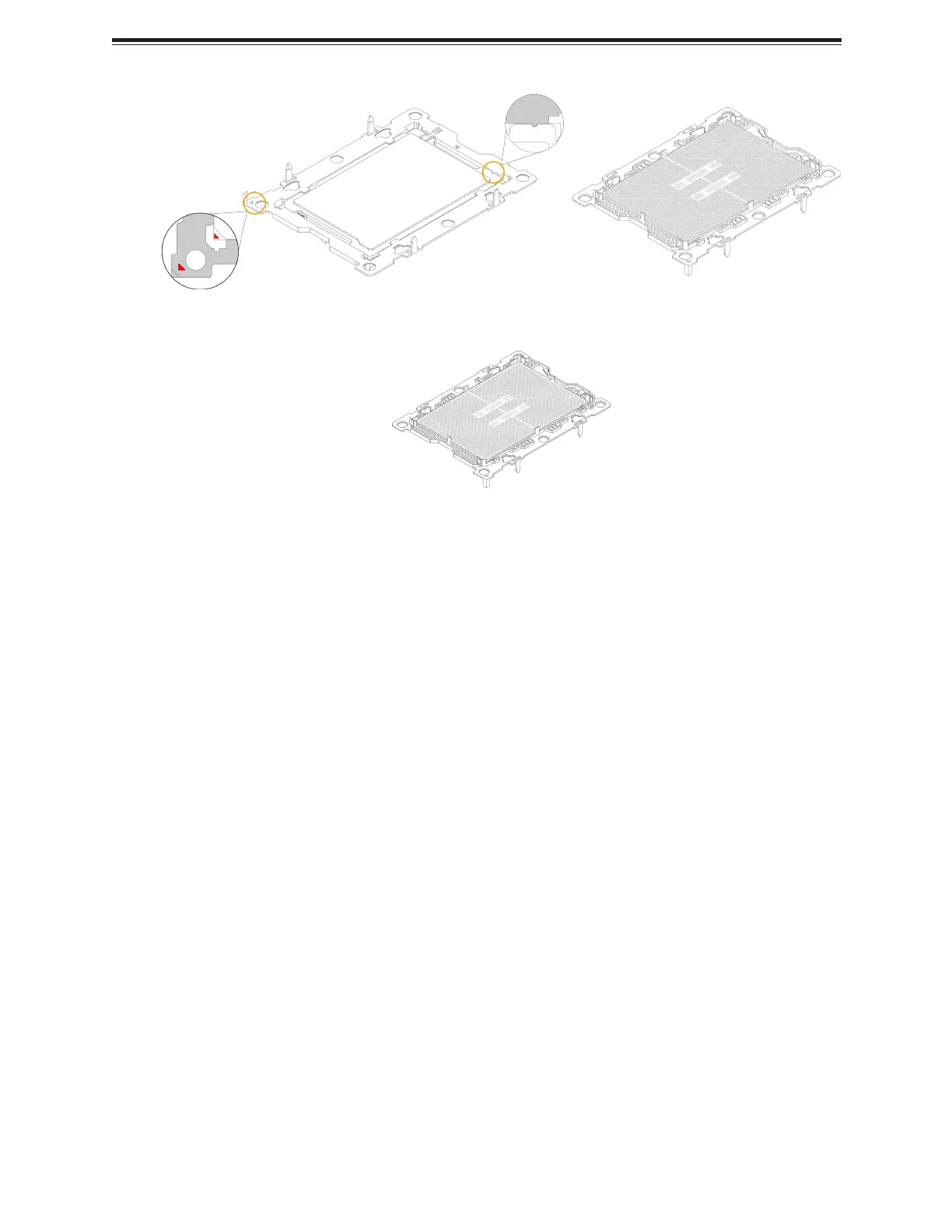

Figure 2-19. Processor and BR1A Keys and Latches
Figure 2-20. Carrier Assembly Complete
Assembling the Processor Heatsink Module
After creating the processor carrier assembly for the processor, mount it onto the heatsink to
create the processor heatsink module (PHM):
1. Note the extensions of the EVAC heatsink. Ensure these extensions are oriented
towards the chassis fans.
2. If this is a new heatsink, the thermal grease has been pre-applied. Otherwise, apply the
proper amount of thermal grease.
3. Hold the processor carrier assembly so the processor's gold contacts are facing up, then
align the holes of the processor carrier assembly with the holes on the heatsink. Press
the processor carrier assembly down until it snaps into place. The plastic clips of the
processor carrier assembly will lock at the four corners.
36
X14SBT-GAP: Component Installation
