Installing the Motherboard
1. Install the I/O shield into the back of the chassis, if applicable.

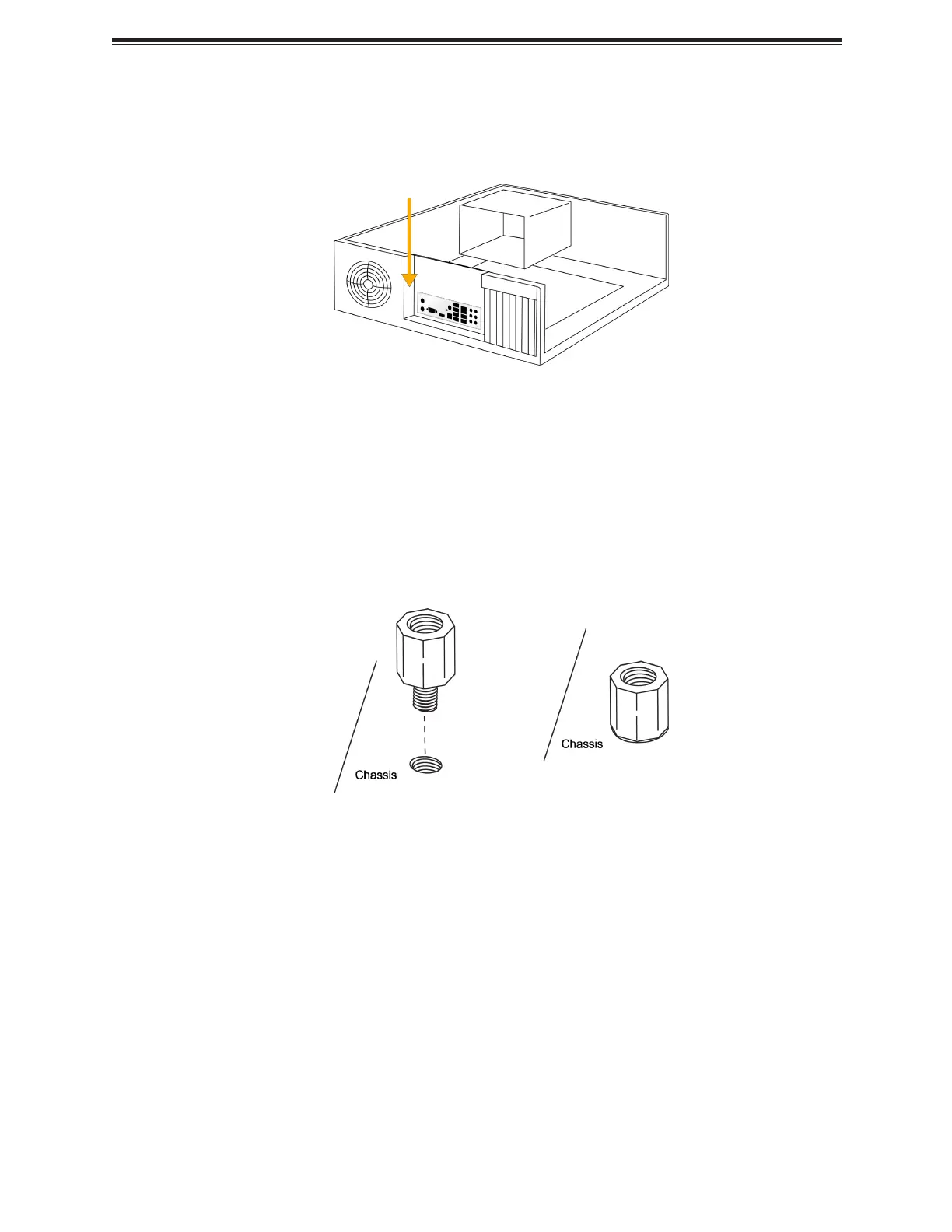

Figure 2-3. Install the I/O Shield
Note: Images displayed are for illustration purposes only. The components installed
in your system may or may not look exactly the same as the graphics shown in the
manual.
2. Locate the mounting holes on the motherboard. See Motherboard Installation for the
location.
Figure 2-4. Locate the Mounting Holes
3. Locate the matching mounting holes on the chassis. Align the mounting holes on the
motherboard against the mounting holes on the chassis.
27
X14SBT-GAP: Component Installation
