2. If this is a new heatsink, the thermal grease has been pre-applied. Otherwise, apply the
proper amount of thermal grease.
3. Hold the processor carrier assembly so the processor's gold contacts are facing up, then
align the holes of the processor carrier assembly with the holes on the heatsink. Press
the processor carrier assembly down until it snaps into place. The plastic clips of the
processor carrier assembly will lock at the four corners.

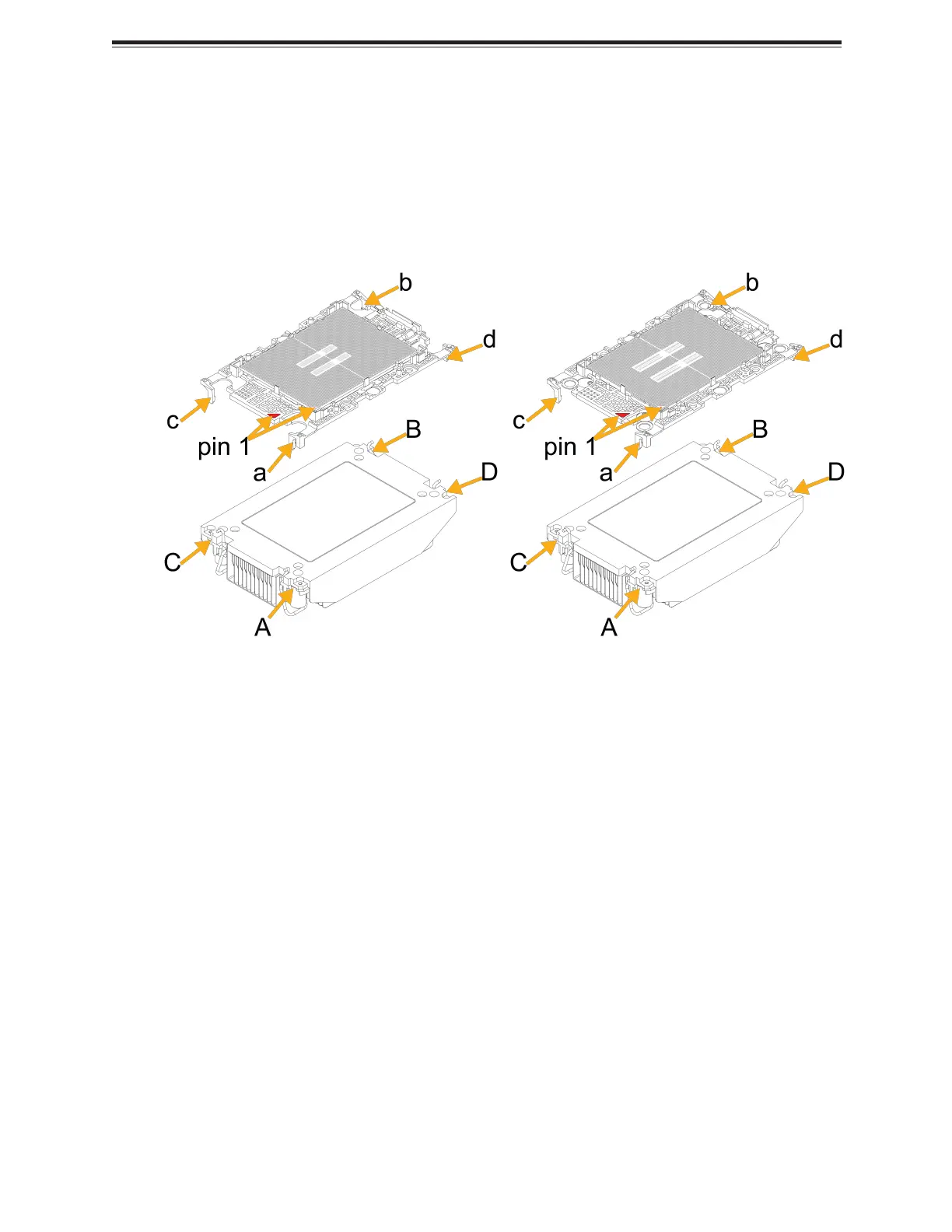

Figure 2-19. Carrier with 1U Heatsink (SP XCC left, SP HCC/LCC right)
36
X14SBH: Component Installation
