4. Examine all corners to ensure that the processor is firmly attached to the carrier.

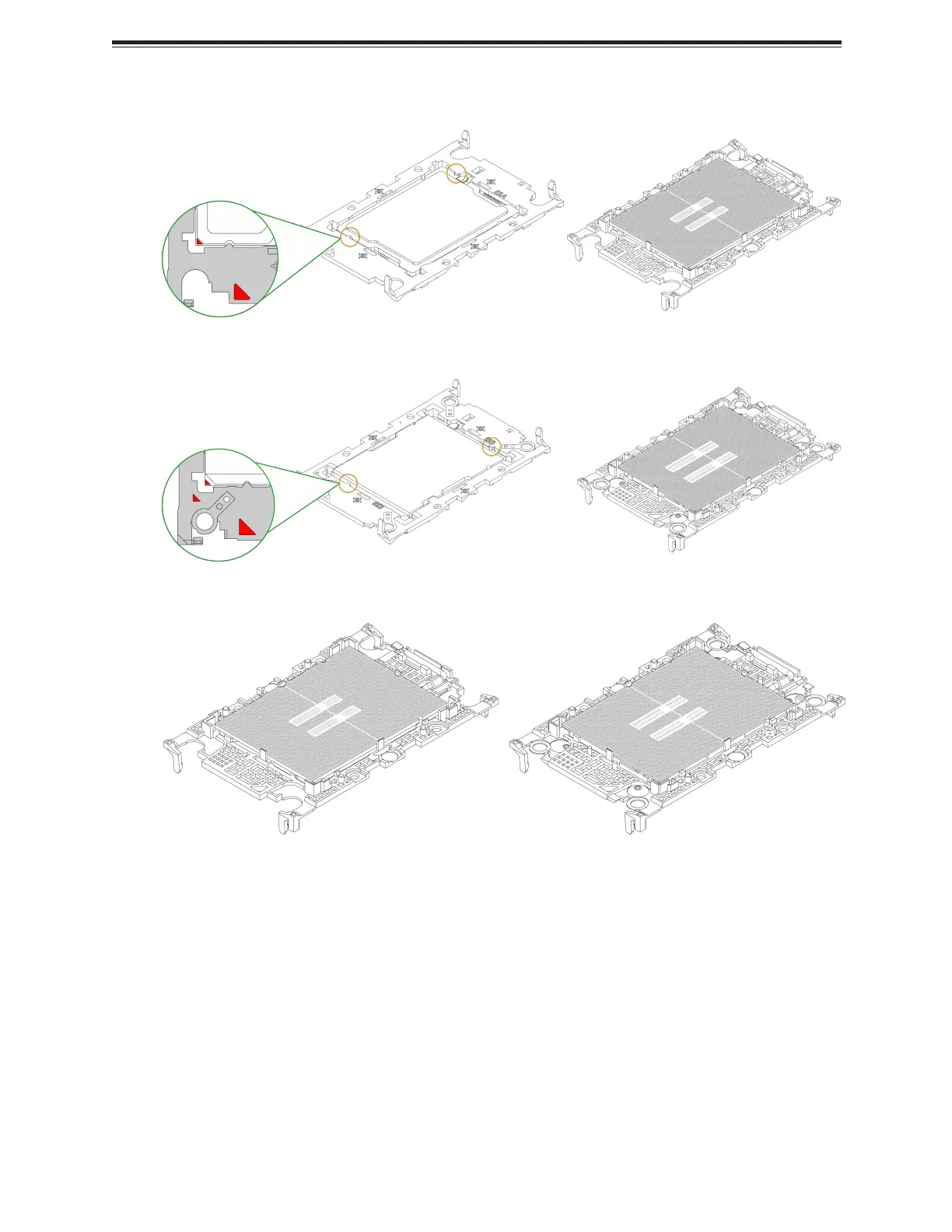

Figure 2-16. SP XCC E2A Keys and Latches
Figure 2-17. SP HCC/LCC E2B Keys and Latches Together
Figure 2-18. Carrier Assembly Complete (SP XCC E2A left, SP HCC/LCC E2B
right)
Assembling the Processor Heatsink Module
After creating the processor carrier assembly for the processor, mount it onto the heatsink to
create the processor heatsink module (PHM):
1. Note the label on top of the heatsink, which marks the airflow direction. Turn the heatsink
over and orient the heatsink so the airflow arrow is pointing towards the triangle on the
processor.
35
X14SBH: Component Installation
