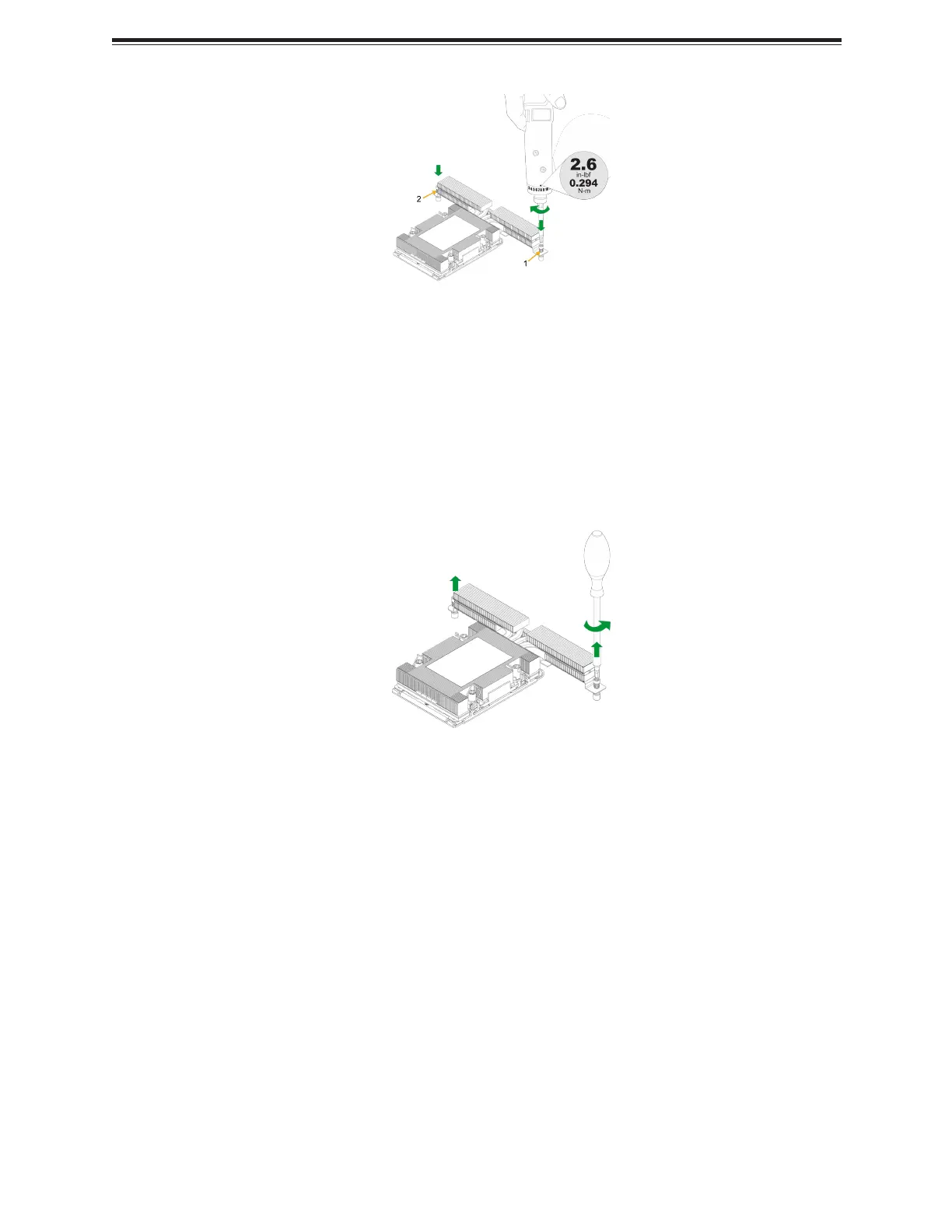

Figure 2-30. Tighten the Remote Screws with a Torque Driver
Removing the Processor Heatsink Module
Before removing the processor heatsink module (PHM) from the motherboard, shut down the
system and then unplug the AC power cord from all power supplies.
Then follow the steps below:
1. Use a screwdriver to loosen the remote screws.
Figure 2-31. Loosen the Remote Screws
2. Use a screwdriver to loosen the four screws. You can start with any screw, but make
sure to loosen the screws in a diagonal pattern.
40
X14SBH-AP: Component Installation
