2. Note the extensions of the heatsink if it is an EVAC heatsink. Ensure these extensions
are oriented towards the chassis fans.
3. If this is a new heatsink, the thermal grease has been pre-applied. Otherwise, apply the
proper amount of thermal grease.
4. Hold the processor carrier so the processor's gold contacts are facing up, then align the
holes of the processor carrier with the holes on the heatsink. Press the processor carrier
down until it snaps into place. The plastic clips of the processor carrier will lock at the
four corners.

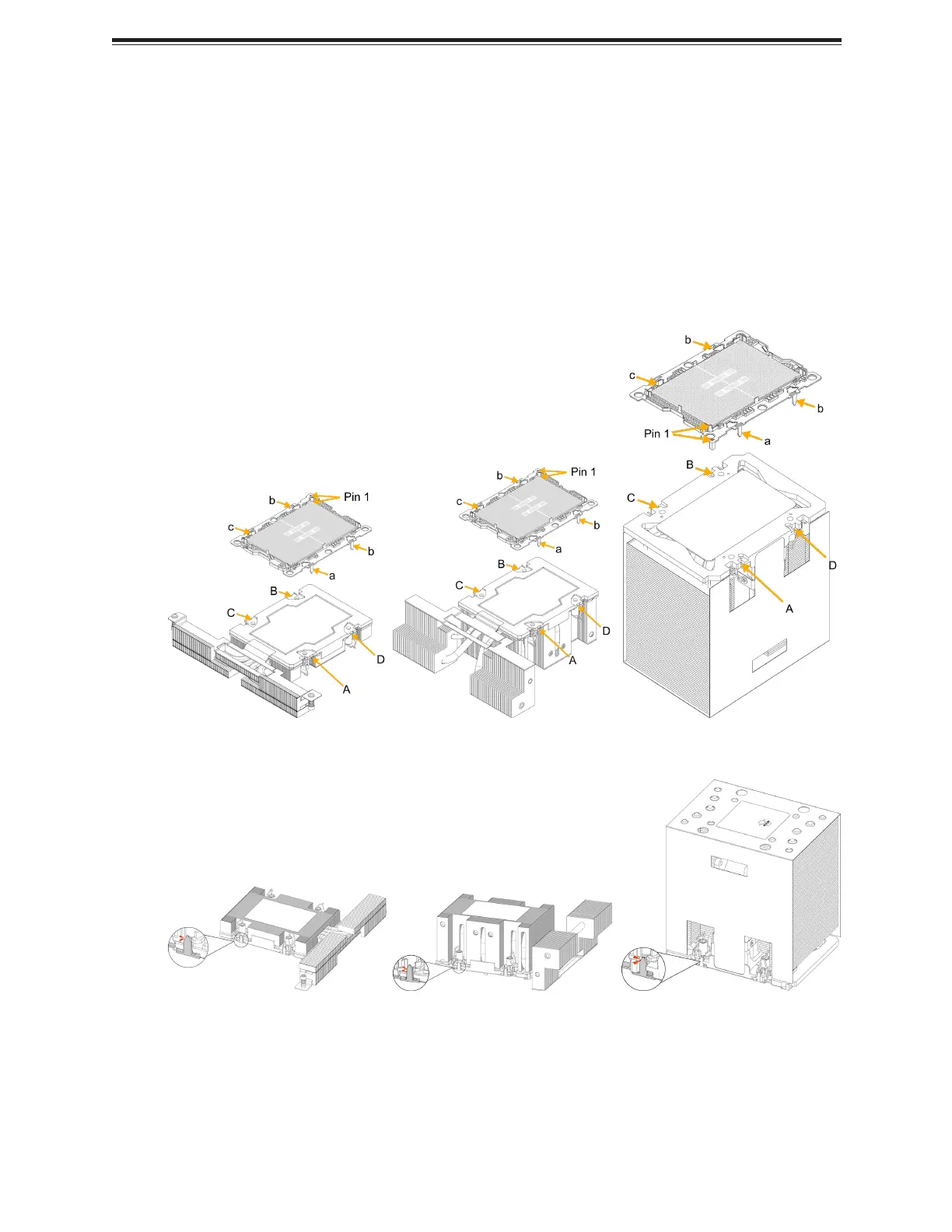

Figure 2-17. Carrier with Heatsink (from left to right: 1U, 2U, and 4U)
Figure 2-18. PHM Plastic Clips Locked (from left to right: 1U, 2U, and 4U)
5. Examine all corners to ensure that the plastic clips on the processor carrier are firmly
attached to the heatsink.
34
