MNL-2706-QRG-100
© 2025 Supermicro Computer Inc. All rights reserved. Reproduction of this document whether in part or in whole is strictly prohibited without
Supermicro's written consent. All Trademarks are property of their respective entities. All information provided is deemed accurate at the time
of printing; however, it is not guaranteed.
Notes
• Graphics shown in this quick reference guide are for illustration only. Your components may or
may not look exactly the same as drawings shown in this guide.
• Refer to User's Manual for detailed information on jumpers, connectors, LED indicators,
memory support and CPU/motherboard installation instructions.
1. DisplayPort 2.1 10. LAN2: RJ45 2.5 GbE LAN Port
2. HDMI 2.1 Port
11. USB6: USB 3.2 Gen 2x1 Port
(10 Gb, Type-A)
3. VGA Port (X14SAE-F only)
12. USB7: USB 3.2 Gen 2x1 Port
(10 Gb, Type-A)
4. UID Switch (X14SAE-F only) 13. Center / LFE Out
5. Dedicated BMC LAN Port
(X14SAE-F only)
14. Surround Out
6. USB10: TBT 4 (40 Gb, Type-C) 15. S/PDIF Out
7. LAN1: RJ45 1 GbE LAN Port 16. Line In
8. USB5: USB 3.2 Gen 2x1 Port
(10 Gb, Type-A)
17. Line Out
9. USB8: USB 3.2 Gen 2x2 Port
(20 Gb, Type-C)
18. Mic In

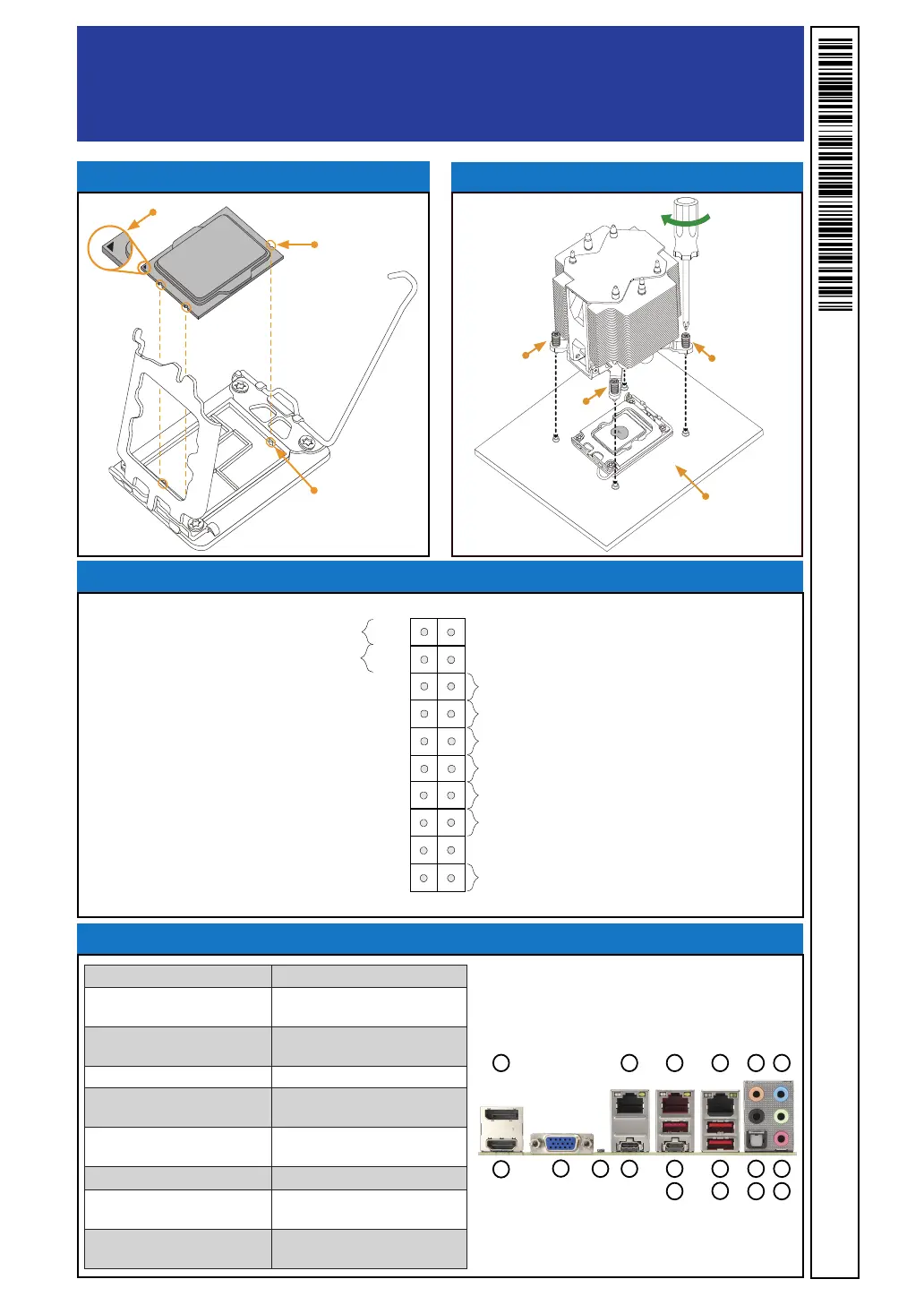

Rear I/O Connectors
CPU Installation
Heatsink Installation
Front Control Panel (JFP1)
Power Button
Reset Button
OH/Fan Fail LED
20
NIC1 LED
19
Power Fail LED (X14SAE-F)
HDD LED
PWR LED+3.3 V Stby
+3.3 V Stby (X14SAE)
UID SW (X14SAE-F)
+3.3 V
+3.3 V Stby
GND
GND
21
+3.3 V Stby
X
GNDNMI
X
+3.3 V
NIC2 LED
PWR
Reset
CPU notch
CPU load
bracket notch
Pin 1
X14SAE-F
Screw
Screw
Screw
Motherboard
top side
1
2
5
10
11
13
14 17
16
3
12
1815
8
9
4
6
7
