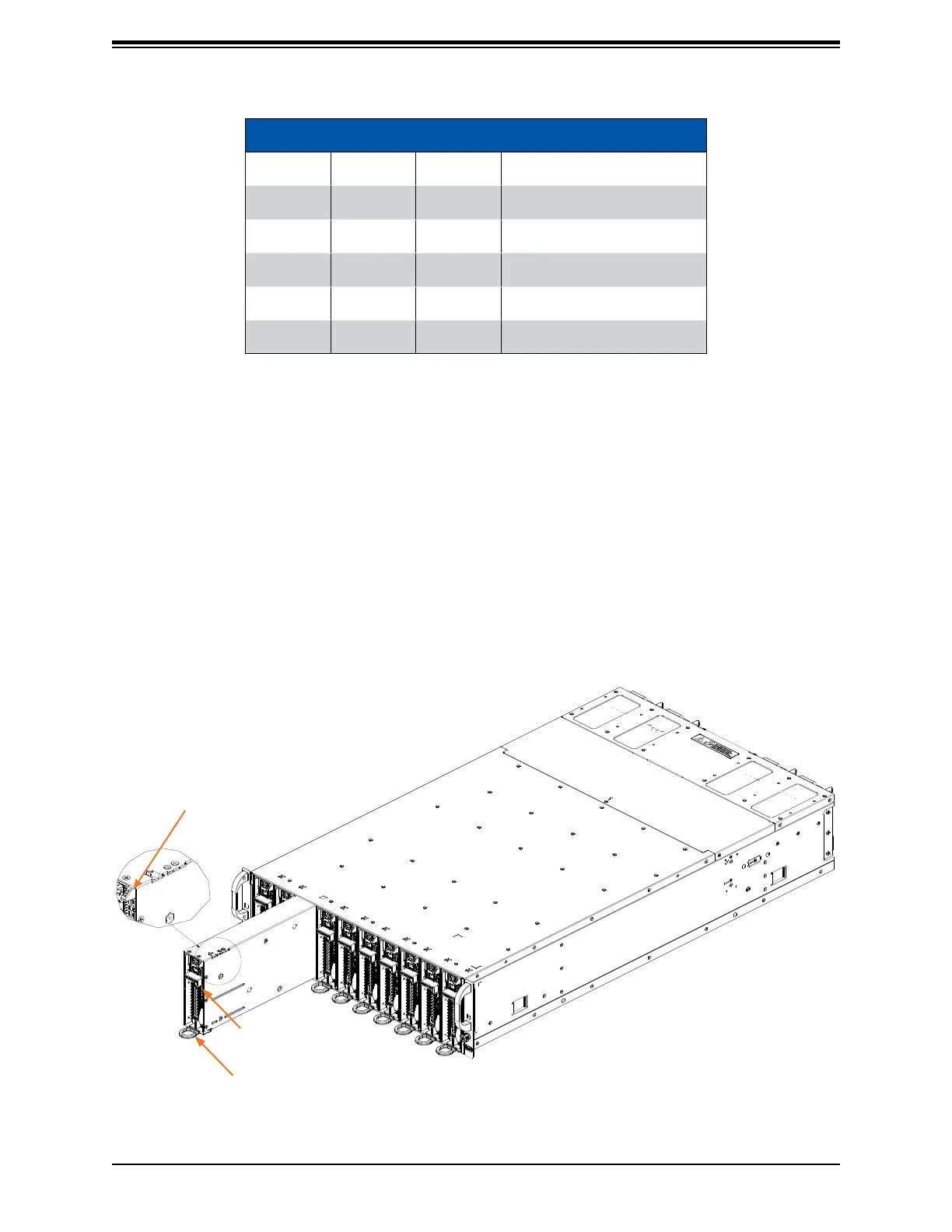

Chapter 3: Maintenance and Component Installation

Corresponding Nodes and Fans

Node Fan Node Fan

Node A Fan 1 Node F Fan 3

Node B Fan 1 Node G Fan 4

Node C Fan 2 Node H Fan 4

Node D Fan 2 Node I Fan 5

Node E Fan 3 Node J Fan 5

Figure 3-6. Removing a Node

Removing a Node

1. Power-down an individual node by pressing its power button.

2. Press and hold down the release tab on the front of the node.

3. Use the node handle to pull the node from the system.

Caution: Except for short periods of time while swapping nodes, do not operate the server

with the node bays empty. In the unlikely event of a node failure, remove the failed node and

replace it with the dummy node that was included with the system.

Release Latch

Node Handle

Power Button
