Chapter 6: Troubleshooting and Support Chapter 6: Troubleshooting and Support

J38

BIOS

MAC CODE

BAR CODE

JAIOM_PWR1 JAIOM_PWR2

CPLD1

JBT1

JOCP_SB1

JOCP_SB2

JM2-1

JMCIO6

JMCIO8

JMCIO7

JMCIO5

JMEZZ1

LEDM1

D32

D34

D35

D33

JPME1

JWD1

JPLD1

JPWR1

JPME2

JTPM1

JUSB1

J33

BT1

JKVM1

PWR1

PWR2

MP1

JCPLD2

Battery

JRK1

VROC RAID Key

CPU1

BATTERY

CPU1 PCIe5.0x16

TPM/PORT80

USB3/4 (3.0)

P2-DIMMF2

P2-DIMME1

P2-DIMMF1

P2-DIMMH2

P2-DIMMG1

P2-DIMME2

P2-DIMMH1

P2-DIMMG2

P2-DIMMB2

CPU2

P2-DIMMA2

P2-DIMMB1

P2-DIMMD2

P2-DIMMA1

P2-DIMMC2

P2-DIMMC1

P1-DIMMA1

P1-DIMMB1

P1-DIMMB2

P1-DIMMG2

P1-DIMMG1

P1-DIMMH2

P1-DIMME2

P1-DIMME1

P1-DIMMF2

P1-DIMMF1

P1-DIMMH1

P1-DIMMA2

P1-DIMMD2

P1-DIMMC1

P1-DIMMD1

P1-DIMMC2

B13DEE

R1.01

P2-DIMMD1

No Power

• Check that the power LED on the motherboard is on.

• Make sure that the power connector is connected to the power supply.

• Check that the motherboard battery still supplies approximately 3 VDC. If it does not,

replace it.

• Check that the system input voltage is 100-120 v or 180-240 v.

• Turn the power switch on and o󰀨 to test the system

No Video

If the power is on but you have no video, remove all add-on cards and cables.

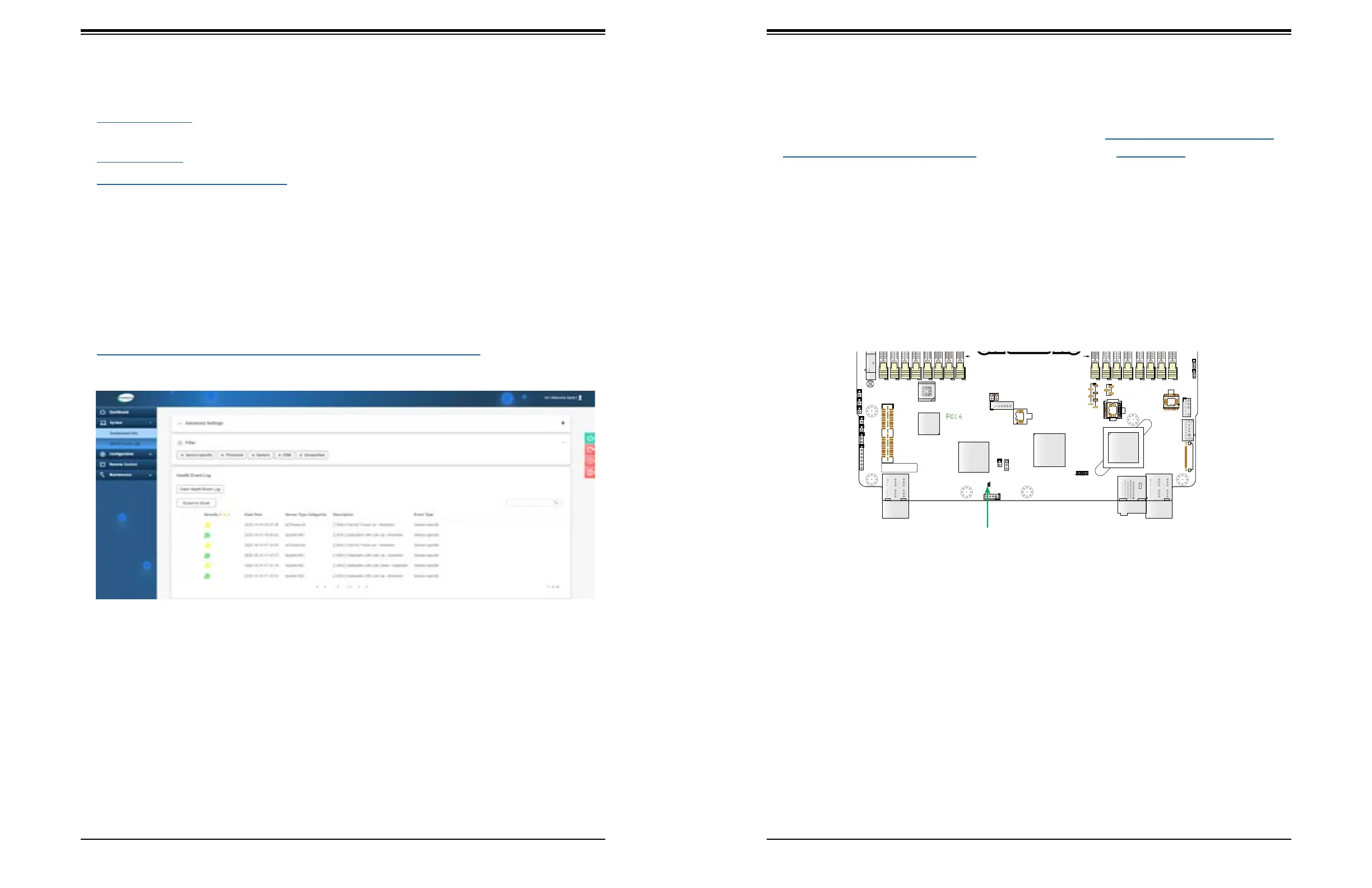

Figure 6-3. Location of the MB Power LED

LEDM1

6.3 Troubleshooting Procedures

Use the following procedures to troubleshoot your system. If you have followed all of the

procedures below and still need assistance, refer to the Technical Support Procedures or

Returning Merchandise for Service sections in this chapter. Power down the system before

changing any non hot-swap hardware components.

General Technique

If you experience unstable operation or get no boot response, try:

1. With power o󰀨, remove all but one DIMM and other added components, such as add-on

cards, from the motherboard. Make sure the motherboard is not shorted to the chassis.

2. Set all jumpers to their default positions.

3. Power up. If the system boots, check for memory errors and add-on card problems.

Product Matrices page for links to tables summarizing specs for systems, motherboards,

power supplies, riser cards, add-on cards, etc.

Security Center for recent security notices

Supermicro Phone and Addresses

Direct Links (continued)

6.2 BMC Interface

The system supports a Baseboard Management Controller (BMC) interface. It provides remote

access, monitoring and management. There are several BIOS settings related to the BMC.

For general documentation and information on the BMC, please visit our website at:

https://www.supermicro.com/manuals/other/BMC_IPMI_X13_H13.pdf.

Figure 6-2. BMC Dashboard Sample
