SuperBlade Server SBI-420P-1(C2/T3)N User's Manual
22
Peek Nut
Rotating Wire
Side View
Top View
Unlatched State
a
b
c
d
(a, b, c, d: Threaded Fasteners)
CPU Socket Pin1
Threaded Fastener
CPU Socket

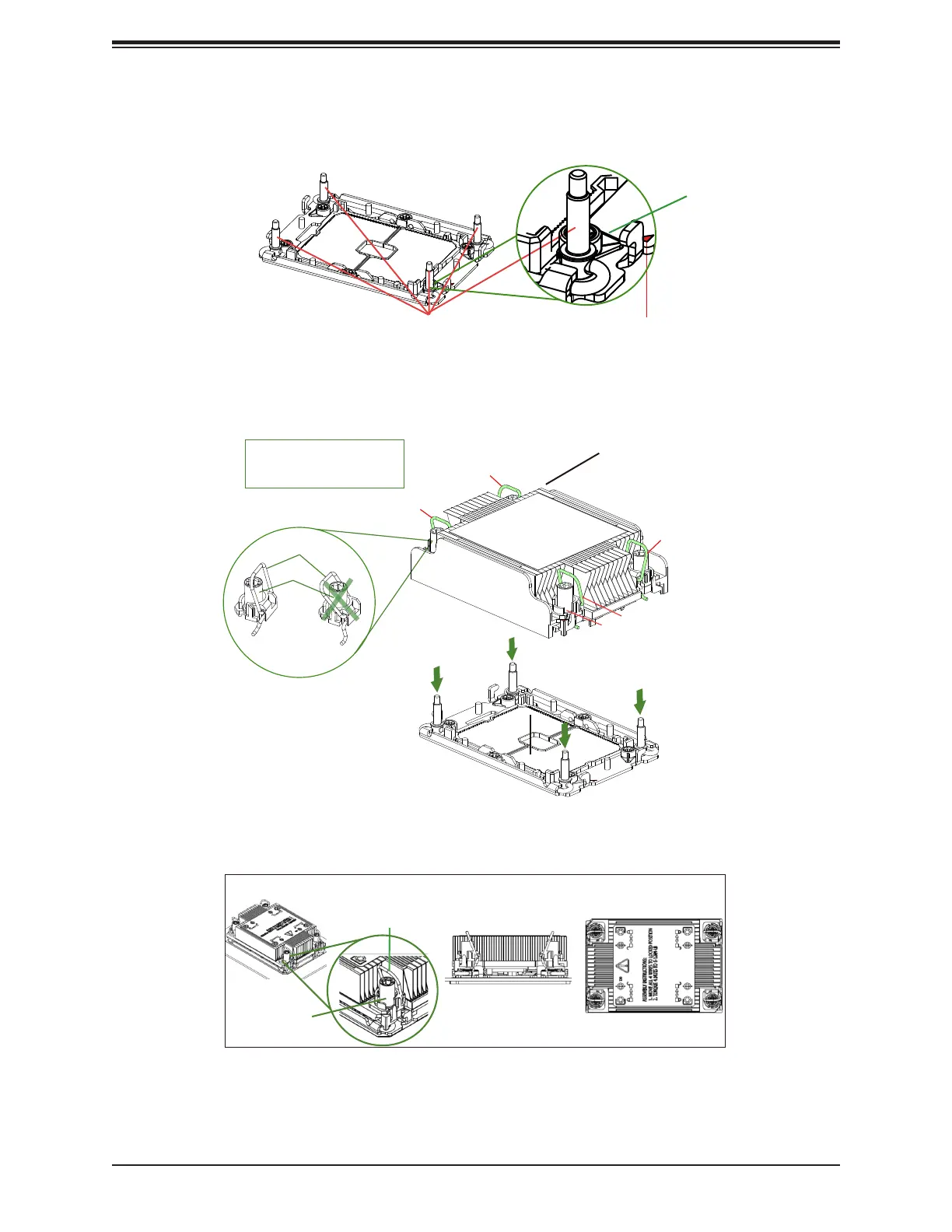

2. Locate four threaded fasteners (a, b, c, d) on the CPU socket.
3. Locate four PEEK nuts (A, B, C, D) and four rotating wires (1, 2, 3, 4) on the heatsink
as shown below.
4. Check that the rotating wires (1, 2, 3, 4) are in the unlatched position as shown.
Heatsink
A, B, C, D: Peek Nut
1, 2, 3, 4: Rotating Wire
a, b, c, d: Threaded Fastener
Peek Nut
(Unlatched)
(latched)
Rotating Wire
B
D
Rotating Wire2
Rotating Wire 4
Rotating Wire 3
Peek Nut
A
C
Rotating Wire 1
CPU Socket
