Chapter 2: Installation and Setup

4. Remove the External Cap from the Rail Frame by pulling it upwards through the rail

guides on the Rail Frame.

5. The CPU Package is shipped from the factory with the blue Carrier Frame pre-

assembled. Grip the handle of the Carrier Frame/CPU Package assembly from its

shipping tray, and while gripping the handle, align the anges of the Carrier Frame

onto the rails of the Rail Frame so its pins will be at the bottom when the Rail Frame is

lowered later.

6. Slide the Carrier Frame/CPU Package downwards to the bottom of the Rail Frame.

Ensure the anges are secure on the rails as you lower it downwards.

External Cap

PnP Cover Cap

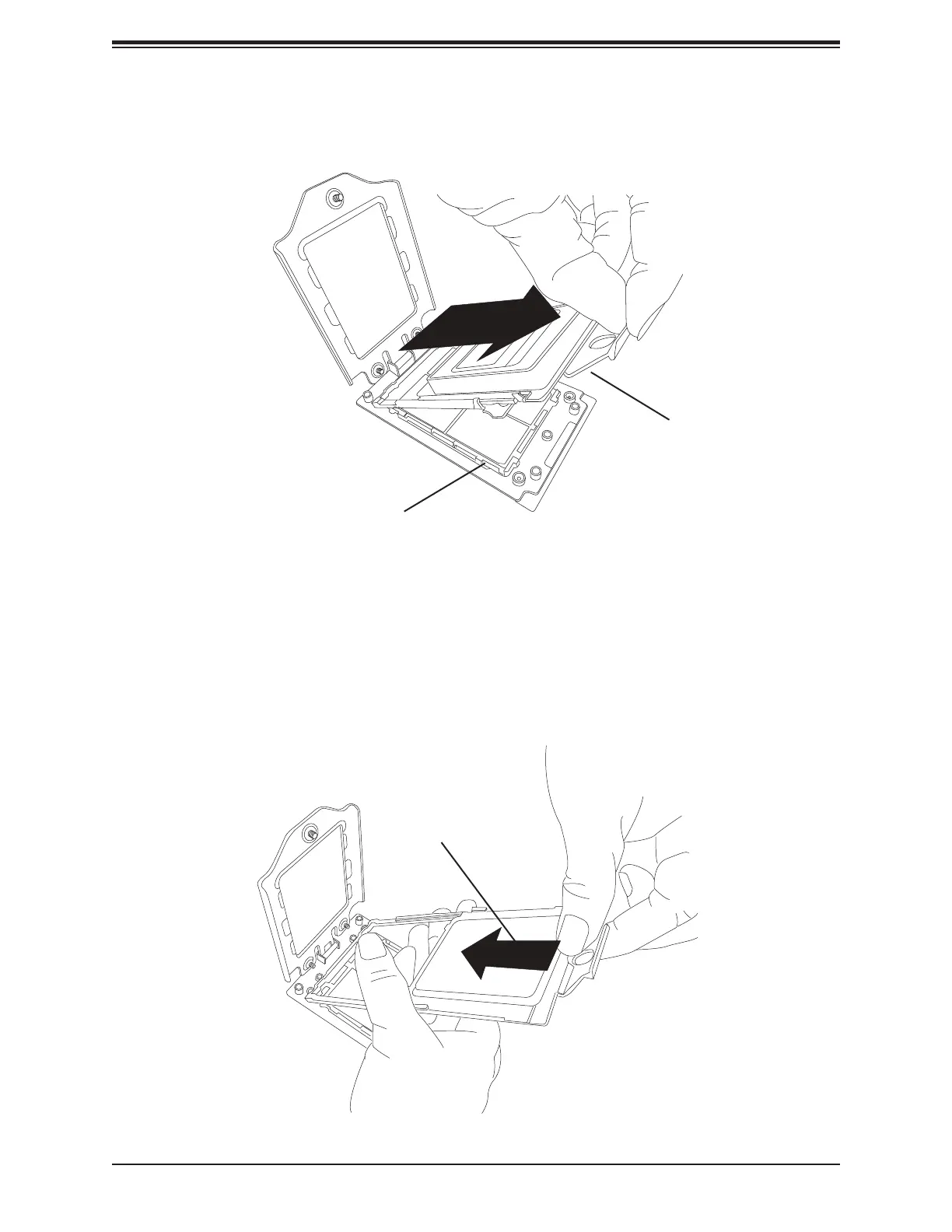

Figure 2-6. Removing the External Cap

Carrier Frame/

CPU Package

Figure 2-7. Inserting the Carrier Frame/CPU Package
