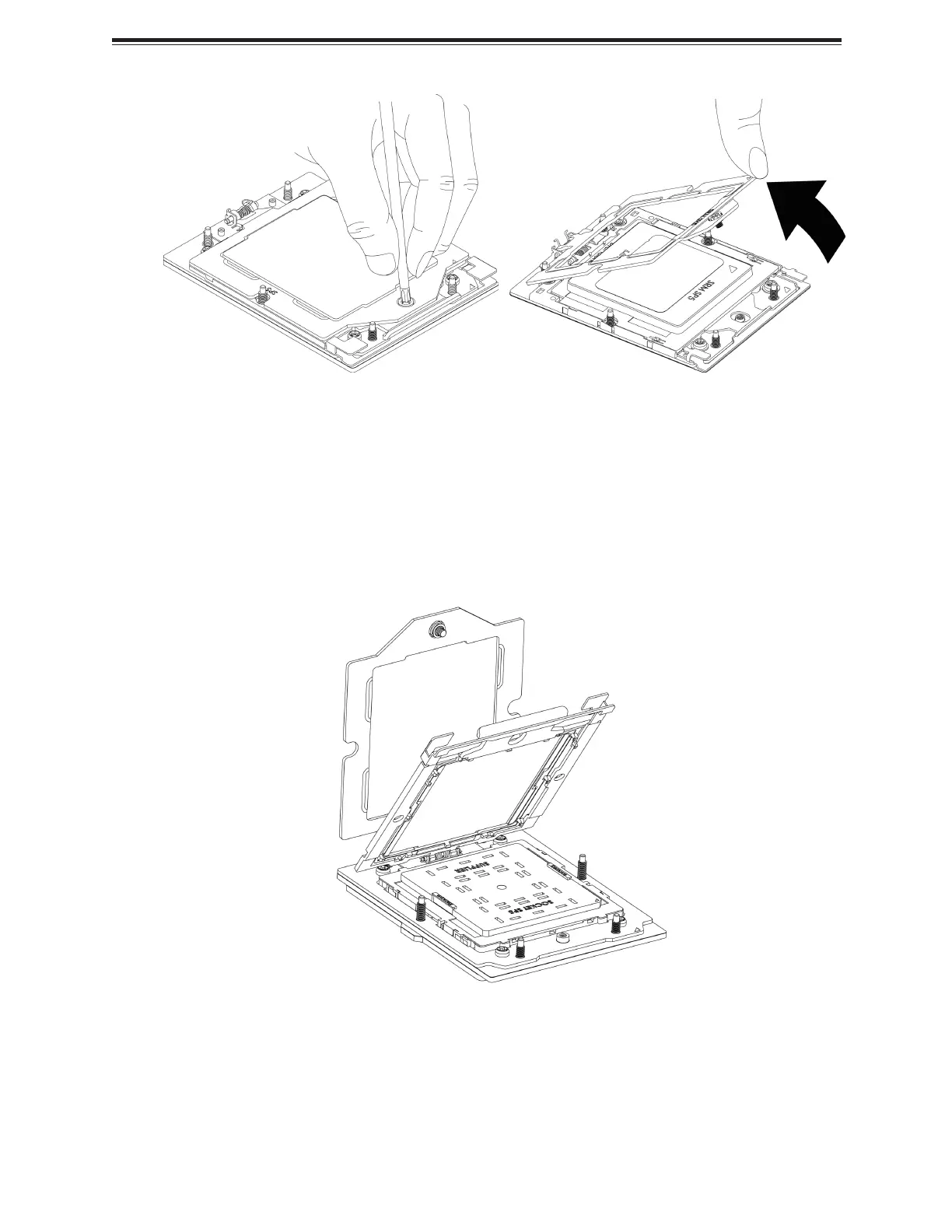

Figure 2-5. Removing Screw from the Force Frame
2. Lift the rail frame up by gripping the lift tabs near the front end of the rail frame. While
keeping a secure grip of the rail frame, lift it to a position so you can do the next step of
removing the external cap.
Note: The rail frame is spring loaded, so keep a secure grip on it as you lift it so it
does not snap up.
Figure 2-6. Lifting the Frame
3. Remove the external cap from the rail frame by pulling it upwards through the rail guides
on the rail frame.
25
H14SST-GE: Component Installation
