Jumper Settings

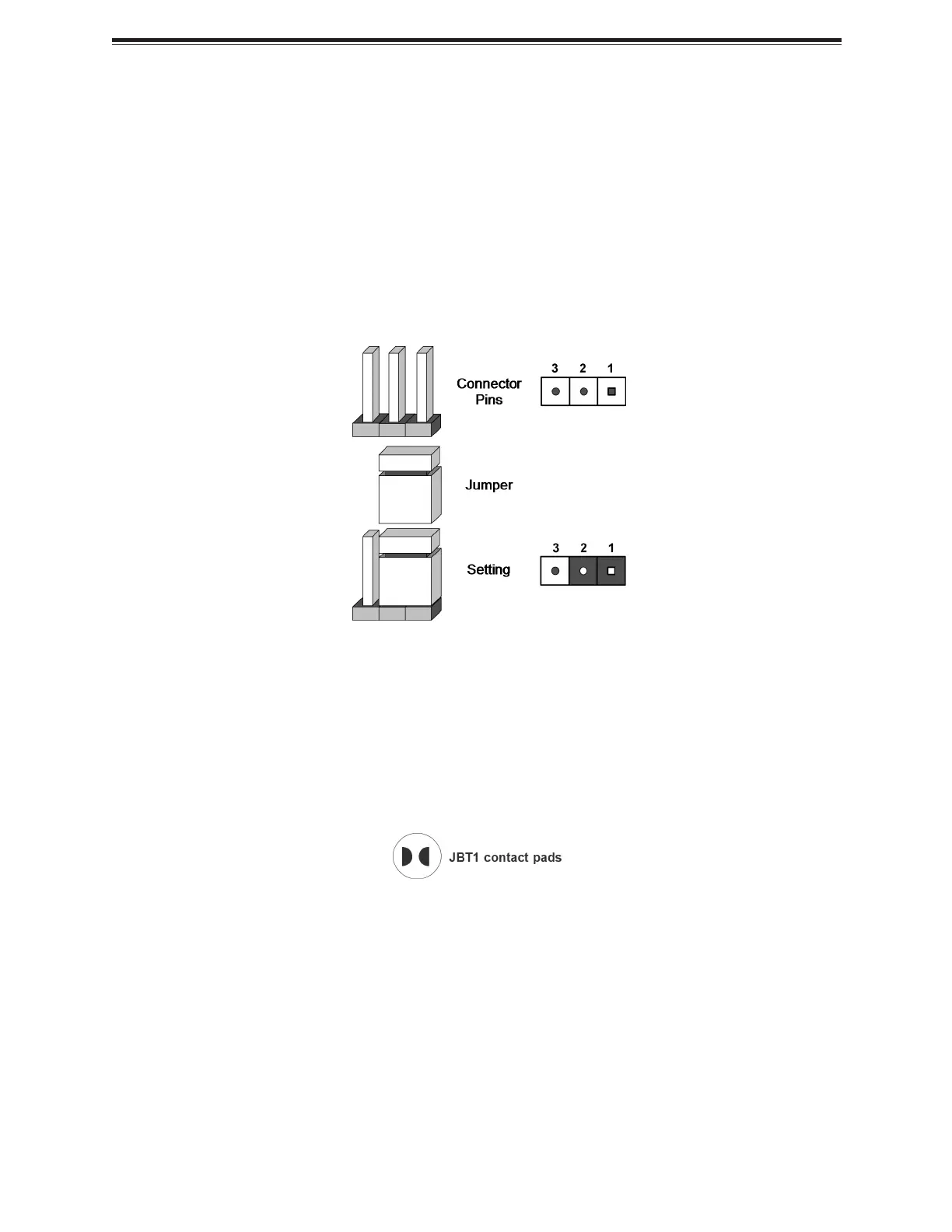

To modify the operation of the motherboard, jumpers can be used to choose between optional
settings. Jumpers create shorts between two pins to change the function of the connector. Pin
1 is identified with a square solder pad on the printed circuit board. See the diagram below for
an example of jumping pins 1 and 2. Refer to the motherboard layout page for jumper locations.
Note: On two-pin jumpers, "Closed" means the jumper is on and "Open" means the jumper
is off the pins.
CMOS Clear
JBT1 on the H14DSG-OD motherboard is used to clear CMOS, which will also clear any
passwords. Instead of pins, this jumper consists of contact pads to prevent accidentally
clearing the contents of CMOS.
For a detailed diagram of the H14DSG- OD motherboard, see the layout under "Quick
Reference" on page 12.
1. First power down the system and unplug the power cord(s).
2. Remove the cover of the chassis to access the motherboard.
3. Remove the onboard battery from the motherboard.
4. Short the CMOS pads, JBT1, with a metal object such as a small screwdriver for at least
four seconds.
Note: Clearing CMOS will also clear all passwords.
