Chapter 5: Optional Components Chapter 5: Optional Components

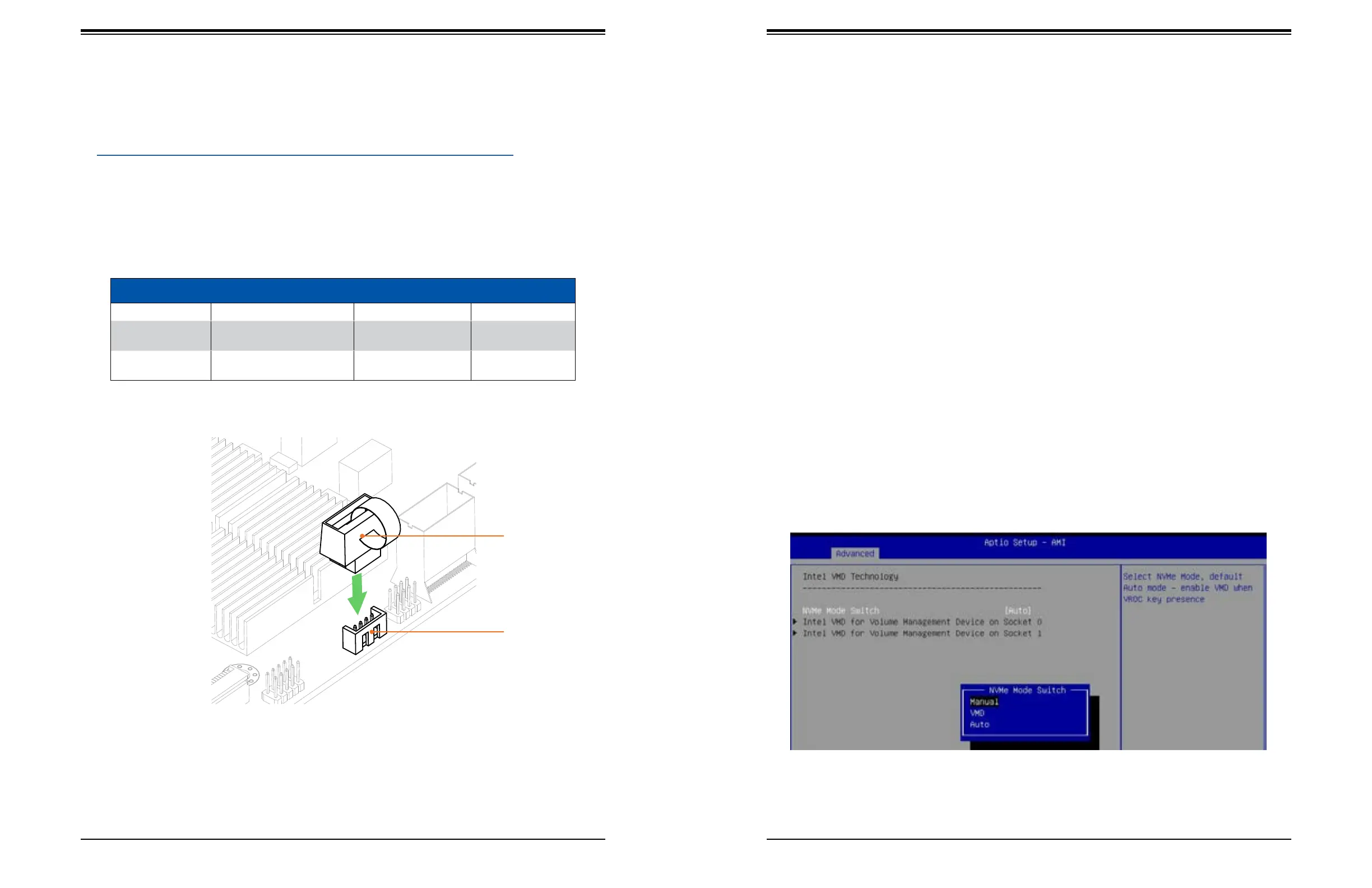

Figure 1-1. Intel VROC RAID Key and Motherboard Connector JRK1

Hardware Key

The Intel VROC hardware key is a license key that detects the Intel VROC SKU and

activates the function accordingly. The key must be plugged into the Supermicro motherboard

(connector JRK1). The key options are:

Intel

VROC Keys

VROC Package Description Part Number Intel MM Number

Standard

RAID 0, 1, 10

Supports 3rd party SSDs

AOC-VROCSTNMOD 951605

Premium

RAID 0, 1, 5, 10

Supports 3rd party SSDs

AOC-VROCPREMOD 951606

Additional Information

Additional information is available on the product page for the Supermicro add-on card and

the linked manuals.

www.supermicro.com/products/accessories/addon/AOC-VROCxxxMOD.cfm

VROC Key

Header, JRK1

Figure 6-7. BIOS, Selecting VMD Mode

Conguring Intel VMD

VMD must be enabled on PCIe ports which have NVMe drives attached to them in order for

those drives to be added to a VROC RAID conguration. The default BIOS setting for the

NVMe Mode Switch is Auto which automatically enables VMD on all installed NVMe drives.

NVMe Mode Switch :

• Auto Enables VMD for all NVMe ports if VROC Key is installed.

• VMD Enables VMD for all NVMe ports despite the lack of the VROC Key.

• Manual Allows the user to select specic NVMe ports on which to enable VMD.

The NVMe Mode Switch can be viewed or selected at BIOS > Advanced > Chipset

Conguration > North Bridge > IIO Conguration > Intel® VMD Technology.

Note: Without a VROC Key, there is no RAID support with the Auto switch. Only RAID 0 is

supported with the VMD and Manual switches.

Conguring VMD Manually

The steps for manually conguring VMD on specic NVMe ports in UEFI BIOS are shown

below. Example screenshots may di󰀨er from your server.

1. Reboot the server and press [DEL] key to access the BIOS options.

2. Switch to Advanced > Chipset Conguration > North Bridge > IIO Conguration >

Intel® VMD Technology.

3. Select VMD Mode Switch, then select Manual.

Note that Socket 0 contains CPU1; Socket 1 contains CPU2
