Chapter 2: Installation and Setup Chapter 2: Installation and Setup

Guidelines Regarding Mixing DIMMs

• All DIMMs must be DDR5.

• x4 and x8 DIMMs can be mixed in the same channel.

• Always populate the DIMM with the higher electrical loading on a channel in DIMMx1

(farther from CPU) followed by DIMMx2.

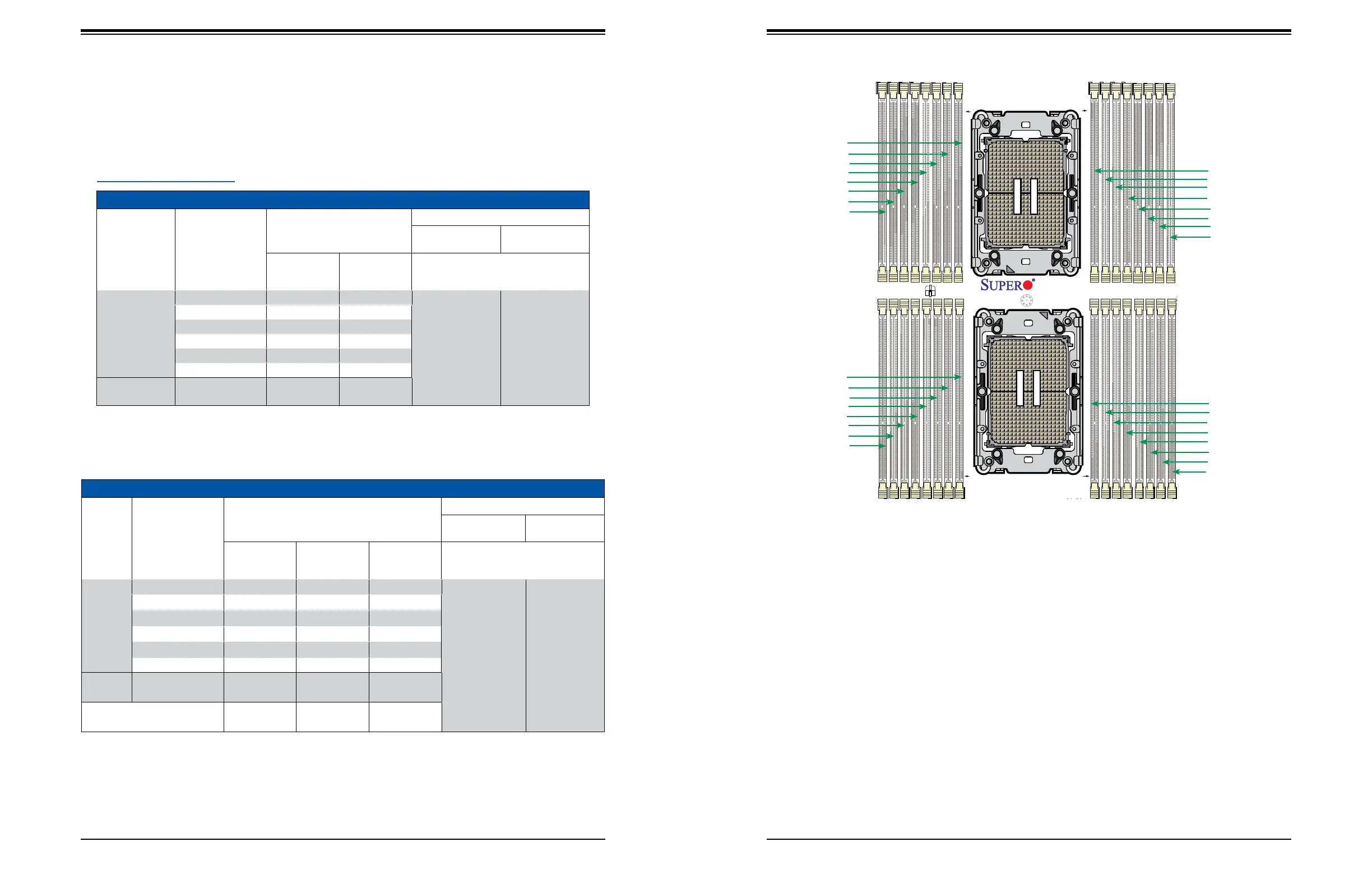

Figure 2-2. Memory Slots

J38

BIOS

MAC CODE

BAR CODE

JAIOM_PWR1 JAIOM_PWR2

CPLD1

JBT1

JOCP_SB1

JOCP_SB2

JM2-1

JMCIO6

JMCIO8

JMCIO7

JMCIO5

JMEZZ1

LEDM1

D32

D34

D35

D33

JPME1

JWD1

JPLD1

JPWR1

JPME2

JTPM1

JUSB1

J33

BT1

JKVM1

PWR1

PWR2

MP1

JCPLD2

Battery

JRK1

VROC RAID Key

CPU1

BATTERY

CPU1 PCIe5.0x16

TPM/PORT80

USB3/4 (3.0)

P2-DIMMF2

P2-DIMME1

P2-DIMMF1

P2-DIMMH2

P2-DIMMG1

P2-DIMME2

P2-DIMMH1

P2-DIMMG2

P2-DIMMB2

CPU2

P2-DIMMA2

P2-DIMMB1

P2-DIMMD2

P2-DIMMA1

P2-DIMMC2

P2-DIMMC1

P1-DIMMA1

P1-DIMMB1

P1-DIMMB2

P1-DIMMG2

P1-DIMMG1

P1-DIMMH2

P1-DIMME2

P1-DIMME1

P1-DIMMF2

P1-DIMMF1

P1-DIMMH1

P1-DIMMA2

P1-DIMMD2

P1-DIMMC1

P1-DIMMD1

P1-DIMMC2

B13DEE

R1.01

P2-DIMMD1

P2-D1MMA2

P2-D1MMA1

P2-D1MMB2

P2-D1MMB1

P2-D1MMC2

P2-D1MMC1

P2-D1MMD2

P2-D1MMD1

P1-D1MME2

P1-D1MME1

P1-D1MMF2

P1-D1MMF1

P1-D1MMG2

P1-D1MMG1

P1-D1MMH2

P1-D1MMH1

P2-D1MME2

P2-D1MME1

P2-D1MMF2

P2-D1MMF1

P2-D1MMG2

P2-D1MMG1

P2-D1MMH2

P2-D1MMH1

P1-D1MMA2

P1-D1MMA1

P1-D1MMB2

P1-D1MMB1

P1-D1MMC2

P1-D1MMC1

P1-D1MMD2

P1-D1MMD1

2.4 Memory

Memory Support

Up to 8 TB with 3DS RDIMM/LRDIMM DDR5 ECC memory. For validated memory, use our

Product Resources page.

DDR5 Memory Support for the 4th Gen Scalable Processors-SP

Type

Ranks Per

DIMM and Data

Width (Stack)

DIMM Capacity (GB)

Speed (MT/s)

One DIMM per

Channel

Two DIMMs

per Channel

Memory

Density

16 Gb

Memory

Density

24 Gb

1.1 Volts

RDIMM

SRx8 (RC D) 16 GB 24 GB

4800* 4400*

SRx4 (RC C) 32 GB 48 GB

SRx4 (RC F) 9x4 32 GB NA

DRx8 (RC E) 32 GB 48 GB

DRx4 (RC A) 64 GB 96 GB

DRx4 (RC B) 9x4 64 GB NA

RDIMM 3DS (4R/8R) x4 (RC A)

2H-128 GB

4H-256 GB

*Memory speed and capacity support depends on the processors used in the system.

Note 1: 1DPC applies to 1SPC or 2SPC implementations (SPC - sockets per channel).

Note 2: 24 Gb XCC only with limited congs: 1DPC all DIMM types, 2DPC 96GB only. Only 8 and 16 DIMM

congs, no failbacks.

DDR5 Memory Support for the 5th Gen Scalable Processors-SP

Type

Ranks Per

DIMM and Data

Width (Stack)

DIMM Capacity (GB)

Speed (MT/s)

One DIMM

per Channel

Two DIMMs

per Channel

Memory

Density

16 Gb

Memory

Density

24 Gb

Memory

Density

32 Gb

1.1 Volts

RDIMM

SRx8 (RC D) 16 GB

24 GB

5600

3,4

4400

3,4

SRx4 (RC C) 32 GB

48 GB

SRx4 (RC F) 9x4 NA NA NA

DRx8 (RC E) 32 GB

48 GB

DRx4 (RC A) 64 GB 96 GB 128GB

DRx4 (RC B) 9x4 NA NA NA

RDIMM

3DS

(4R/8R) x4 (RC A)

2H-128 GB

4H-256 GB

NA NA

Supported DIMM

generations

DDR5-4800,

DDR5-5600

DDR5-4800,

DDR5-5600

DDR5-4800,

DDR5-5600

Note 1: 1DPC applies to 1SPC or 2SPC implementations (SPC - sockets per channel).

Note 2: 24 Gb XCC only with limited congs: 1DPC all DIMM types, 2DPC 96GB only. Only 8 and 16 DIMM

congs, no failbacks.

Note 3: Memory speed will be 5600MT/s 1DPC or 4400MT/s 2DPC.

Note 4: For 1DPC 5600MT/s speed, DDR5-5600 DIMMs are required

Note 5: Mixing DRAM density (16 Gb/24 Gb/32 Gb) and/or frequency is not allowed.
