32 33
Chapter 2: Installation and Setup Chapter 2: Installation and Setup
4. Gently lift the PHM upward to remove it from the CPU socket.

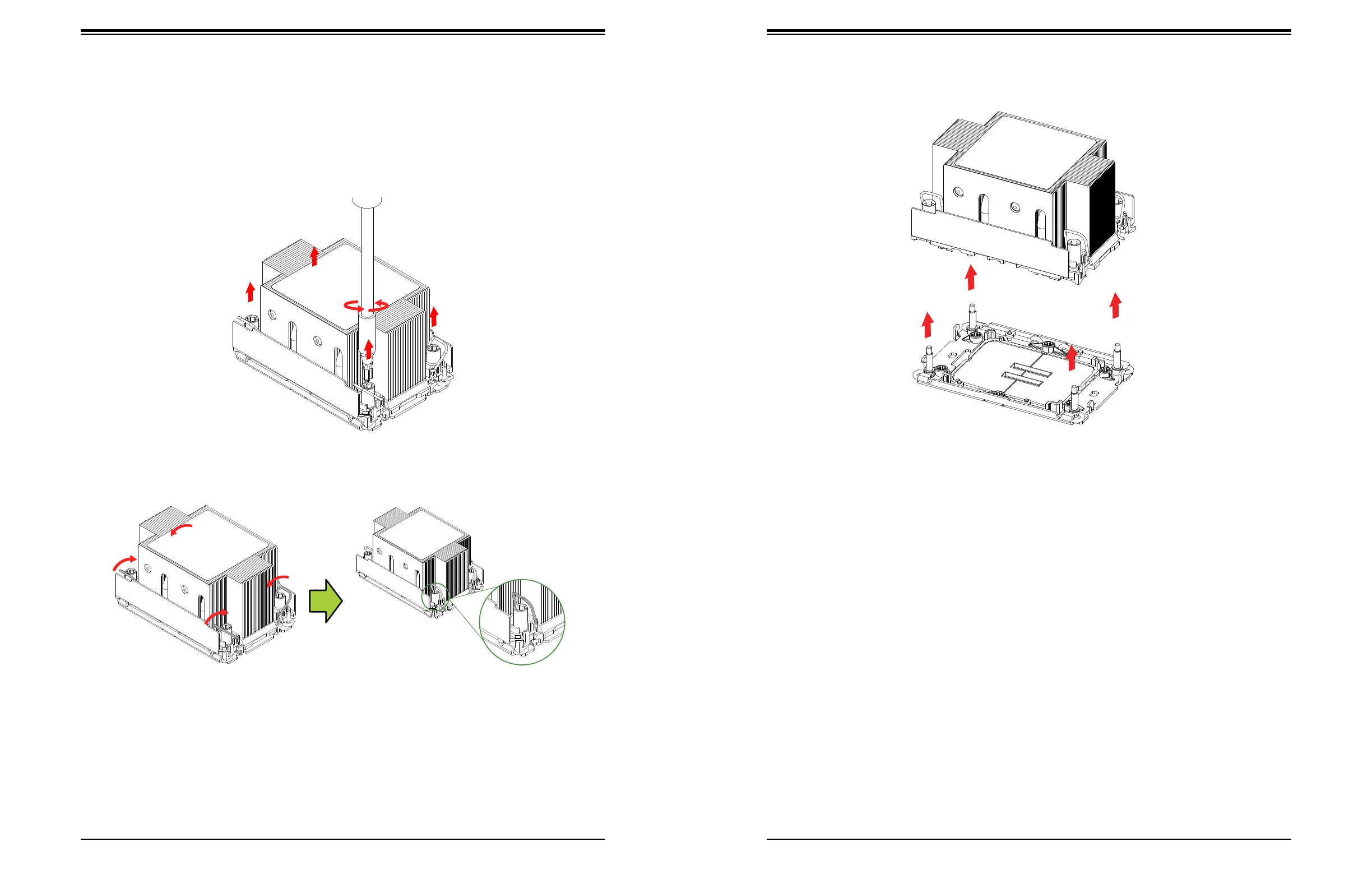

Removing the PHM
To remove the processor heatsink module (PHM) from the motherboard, follow these steps.
1. Shut down the system and unplug the AC power cord from all power supplies.
2. Use a T30-bit screwdriver to loosen the four PEEK nuts on the heatsink in the sequence
of A, B, C, and D.
3. Press the rotating wires inward to unlatch the PHM from the socket as shown below.
A
B
C
D
Unlatched State
