Je bekijkt pagina 41 van 103
41
Chapter 2: Installation
DESIGNED IN USA
A2SAN-L
REV:1.02
BAR CODE
JGP1
BT1
JCOM1: COM1/COM2
JCOM2: COM3/COM4
CPU1
FAN1
JPME2
JPF1
LAN1LAN2
JD1
LVDS1
I-SATA1
JHDMI1
LED1
JLCDPWR1
JF1
JIP1
JPH1
AUDIO FP
USB6(3.1)
X
X
X
USB2/3
USB0/1
VGA
JF1
ONPWR
RST
X
HDD LED
PWR LED
SPEAKER
JD1:
USB4/5(3.0)

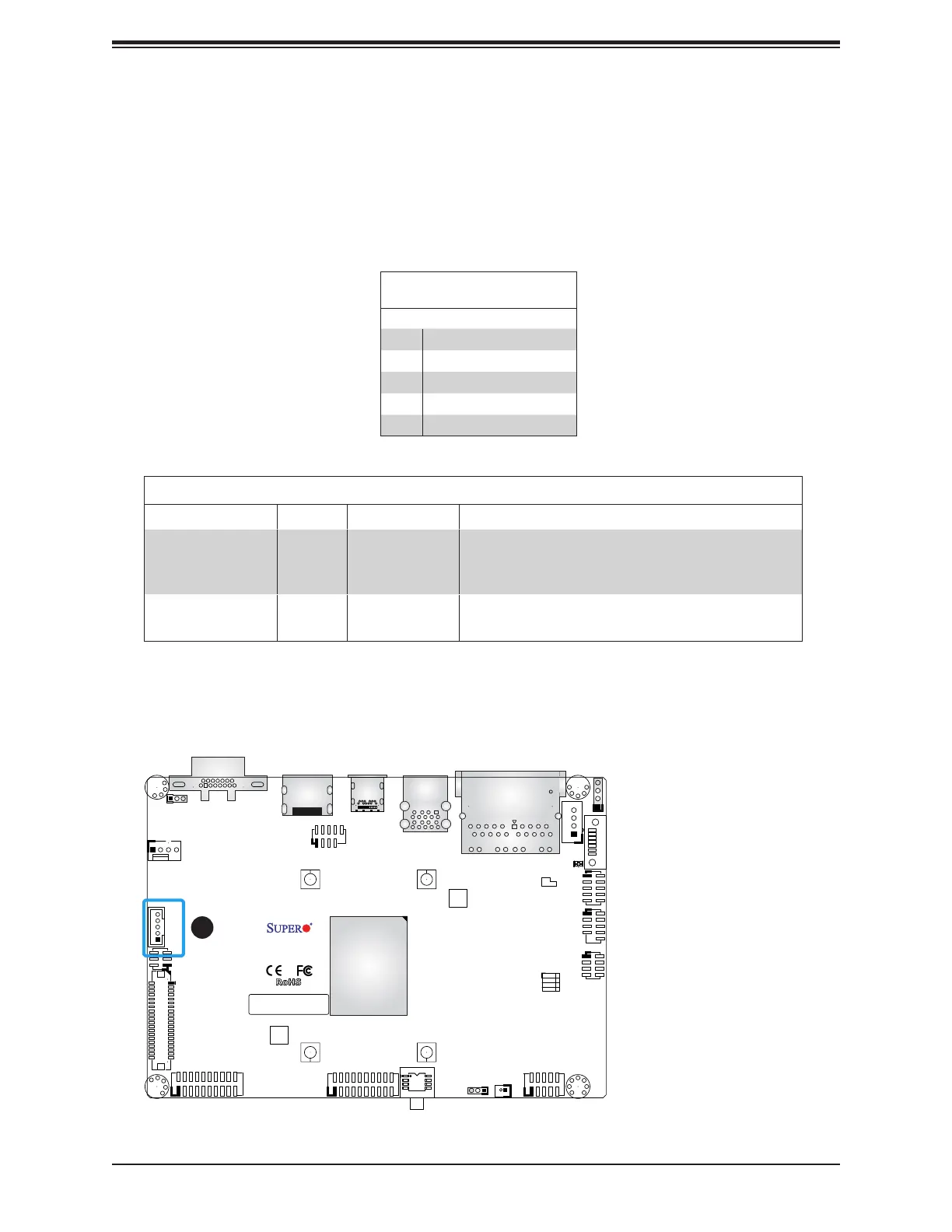

LVDS Inverter Backlight Power
The LVDS Inverter Backlight Power header is located at JIP1 on the motherboard. It supplies
12V and 5V of backlight power to the LCD panel besides LVDS1. See the tables below for
pin denitions, vendor connector part numbers, and mating housing connector information.
1. LVDS Inverter Backlight
Power
1
LVDS Inverter Bicklight Power
Pin Denitions
Pin# Signal
1 P12V
2 GND
3 LVDS Backlight Enable
4 PWM_LVDS_P5V
5 P5V
Inverter Backlight Power Connector
Connector Vendor Manufacture P/N Description
Inverter Backlight
Power Connector
PONY 231-05-010012
BOX/HEADER, 1X5 PIN, PITCH 2MM, DIP, VERT,
1A/PIN, WHITE, TIN PLATED, TL3.4MM, PA46,
ROHS
Mating Housing
Connector
PONY HJ20-05 Mating Connector of 231-05-010012
