36
Super A2SAN-H/-E/-L and X11SAN User's Manual
DESIGNED IN USA
A2SAN-L
REV: 2.00
JGP1
BT1
JCOM1: COM1/COM2
JCOM2: COM3/COM4
CPU1
FAN1
JPME2
JPF1
LAN1LAN2
JD1
LVDS1
I-SATA1
JHDMI1
LED1
JLCDPWR1
JF1
JIP1
JPH1
JCOM3: COM5/COM6
AUDIO FP
USB6(3.1)
X
X
X
USB2/3
USB0/1
VGA
JF1
ONPWR
RST
X
HDD LED
PWR LED
SPEAKER
JD1:
USB4/5(3.0)

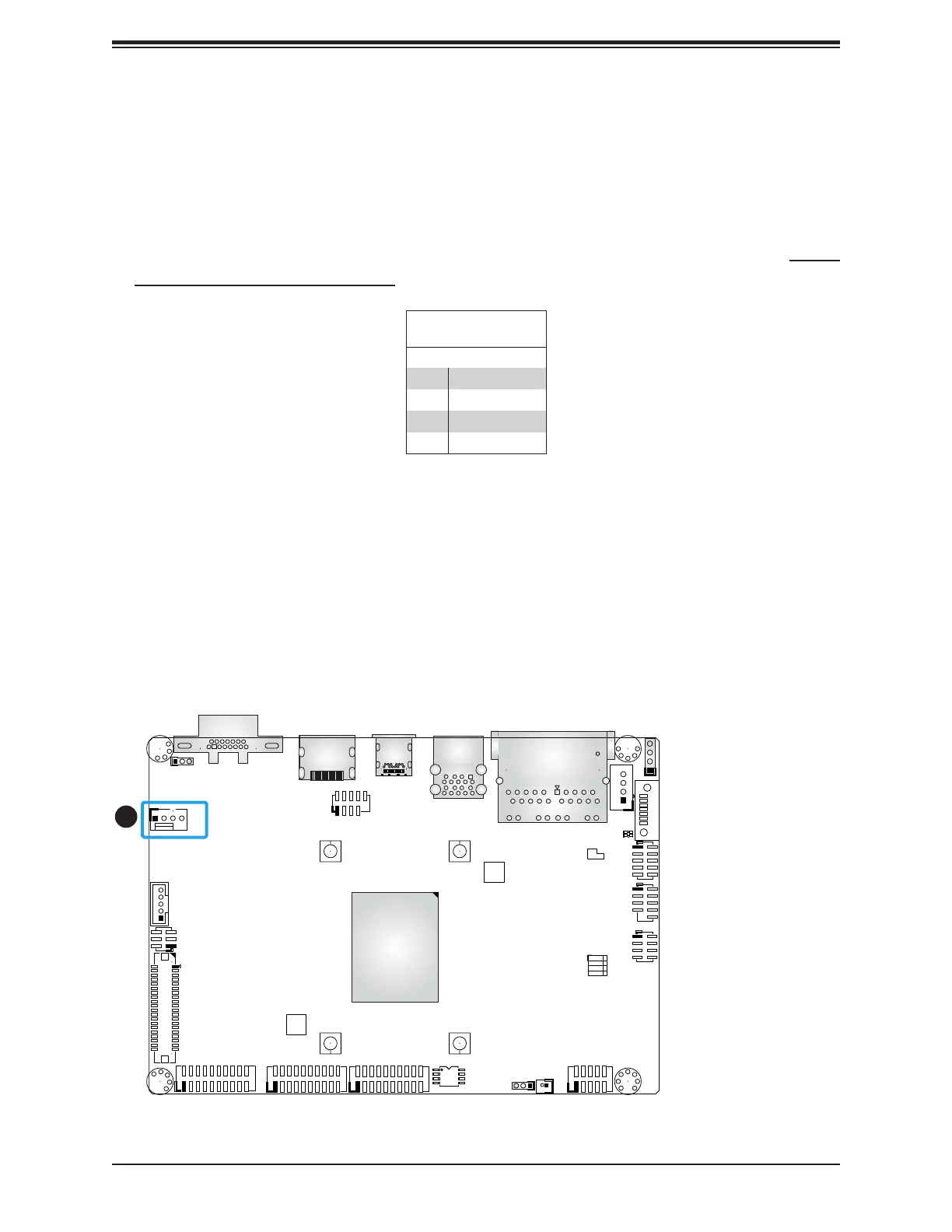

Fan Header
There is one fan header with 4-pins on the motherboard. Pins 1-3 are backward compatible
with traditional 3-pin fans. The onboard fan speeds are controlled by Thermal Management
(via Hardware Monitoring) in the BIOS. When using Thermal Management setting, please
use all 3-pin fans or all 4-pin fans.
Headers
Fan Header
Pin Denitions
Pin# Denition
1 Ground (Black)
2 +12V (Red)
3 Tachometer
4 PWM Control
1. FAN1
1
