User Manual 5 Electrical Connection

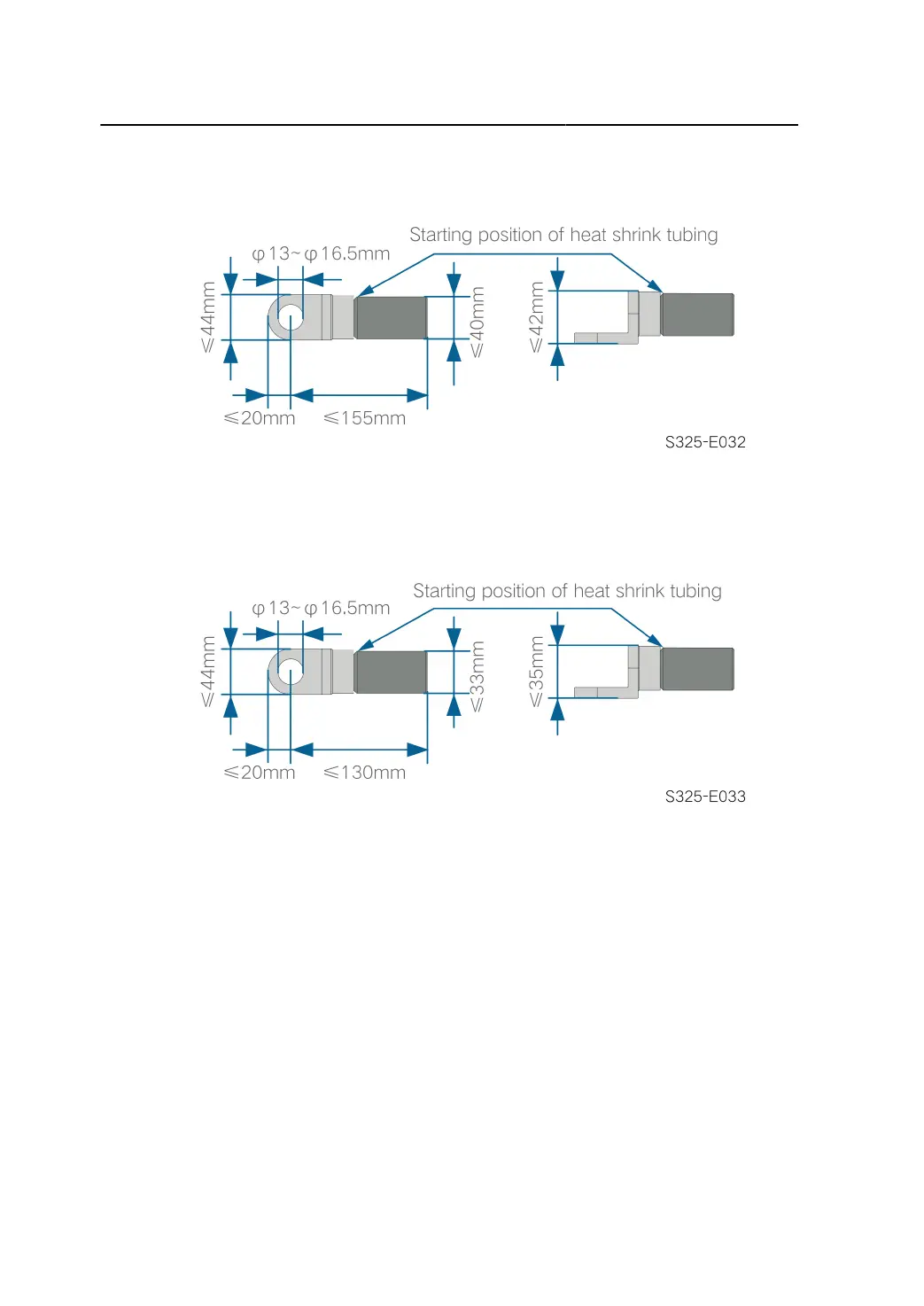

OT/DT Terminals of Phase Wire (One Wire per Phase with Multi-core Cable)
• Specification: M12
OT/DT Terminals of Phase Wire (Two Wires per Phase with Multi-core Ca
ble)
•
Specification: M12
Requirements for Flat Washer
If the OT terminal's hole diameter is between 16.5mm and 21mm, add a flat washer made of
316/304 stainless steel between the OT terminal and the M12 nut. The size of the flat washer
and the connection method are provided below.
Size of Flat Washer
51
