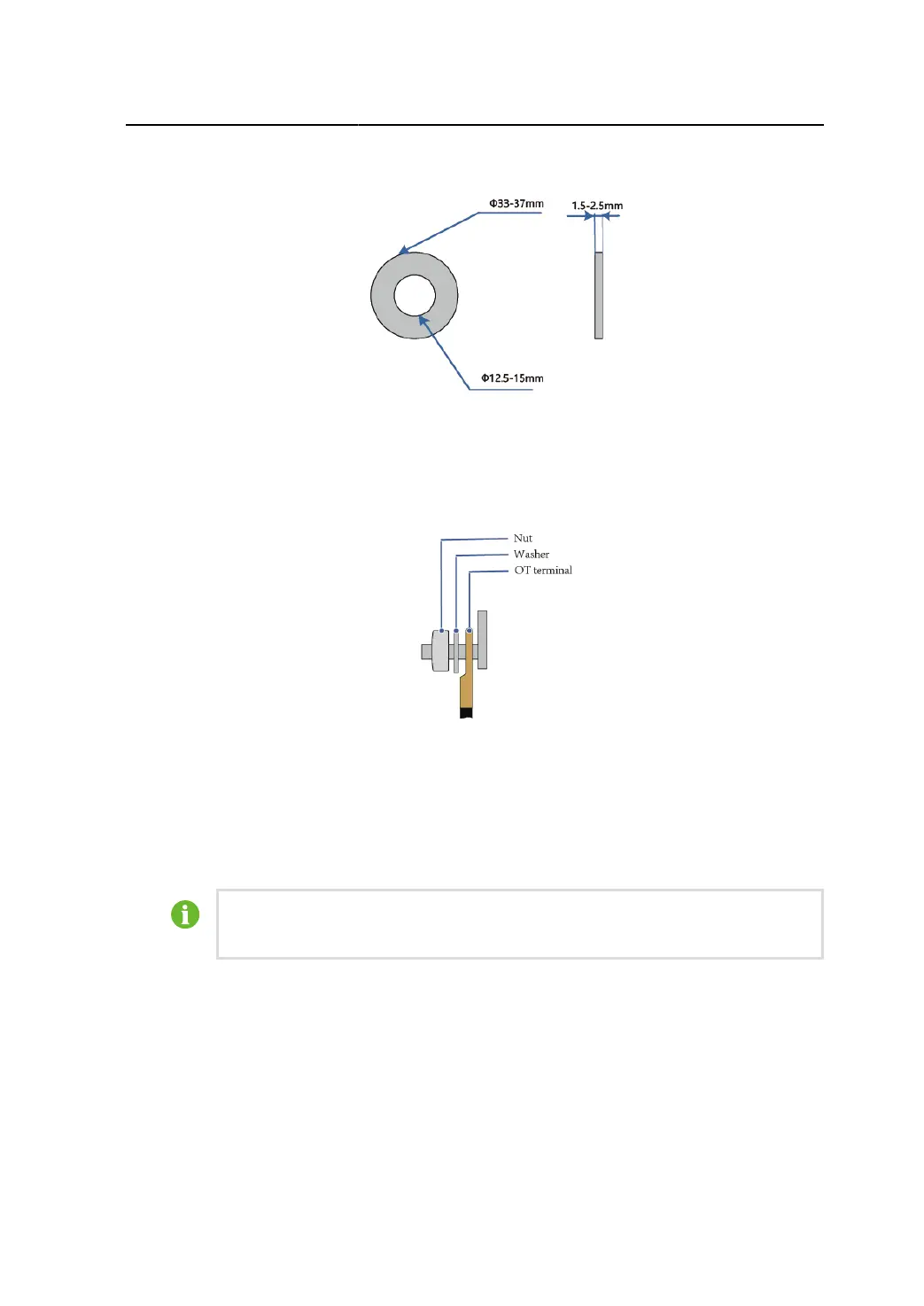

5 Electrical Connection User Manual
figure 5-3 Size of Flat Washer
Installation of Flat Washer
figure 5-4 Installation of Flat Washer
OT/DT Terminal of PE Wire
• Specification: M12
5.6.3 One-wire-per-phase Wiring (with Multi-core Cable)
This section introduces the connection steps with four-core cable as an example,
and the wiring method for three-core cable is the same.
step 1 Open the AC-side circuit breaker and prevent it from closing inadvertently.
step 2 Loosen the two screws on the front cover of the junction box with the hexagon socket wrench
provided. Open the junction box. During the wiring process, the limit rod attached to the cover
keeps the junction box open.
52
