• Only AC cables under the same box-type transformer can be laid in the same cable
trench.
• When using different box-type transformers, the distance between the low-voltage side
cable trays should meet the following requirements:

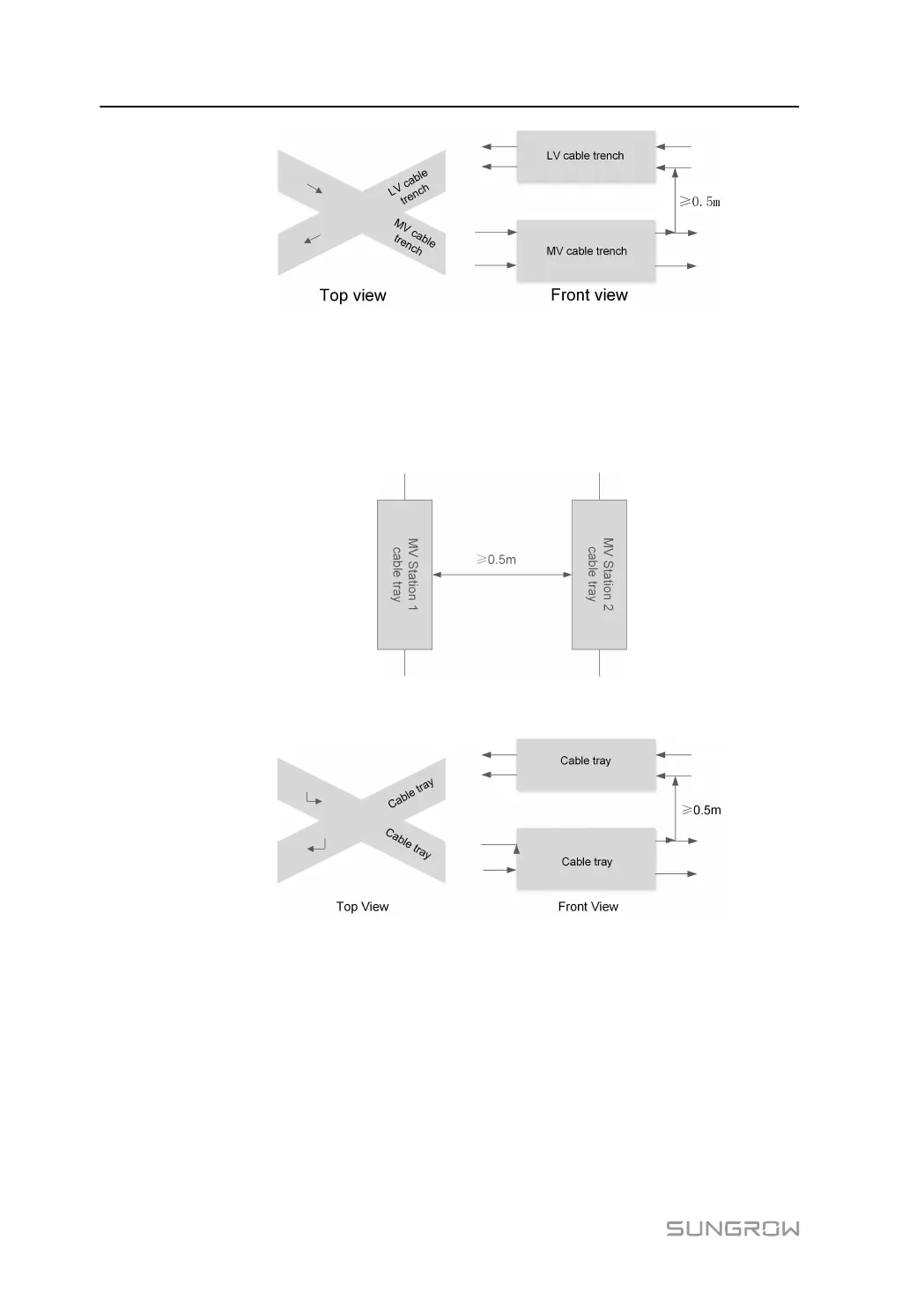

- Maintain a minimum horizontal distance of 0.5m between cable trays from different
box-type transformers.
- If two cables are laid in a crossing manner, the angle of crossing should be between
60° and 120°, and the vertical distance should be no less than 0.5m.
图 6-15 Vertical crossing distance between PLC cables
Choose an AC cable equipped with PLC communication, wiring method reference 6.6.2
Procedure.
6.8 Communication Distribution Panel Connection
he communication and distribution area is shown in the following figure. Connect cables
according to on-site requirements.
System Manual6 Electrical Installation
52
