NOTICE
Ensure correct phase sequence during cable connection.
6.6.3 Securing MV Cable
After completing the wiring on the MV side according to the relevant requirements, secure the
cables to prevent them from slipping due to stress.
Single-core or three-core cables may be used in the switchgear. Secure them in different
ways, as shown below.
Single-core cables
If single-core cables are used, secure the three phase cables using cable clips, as shown in
the figure below.

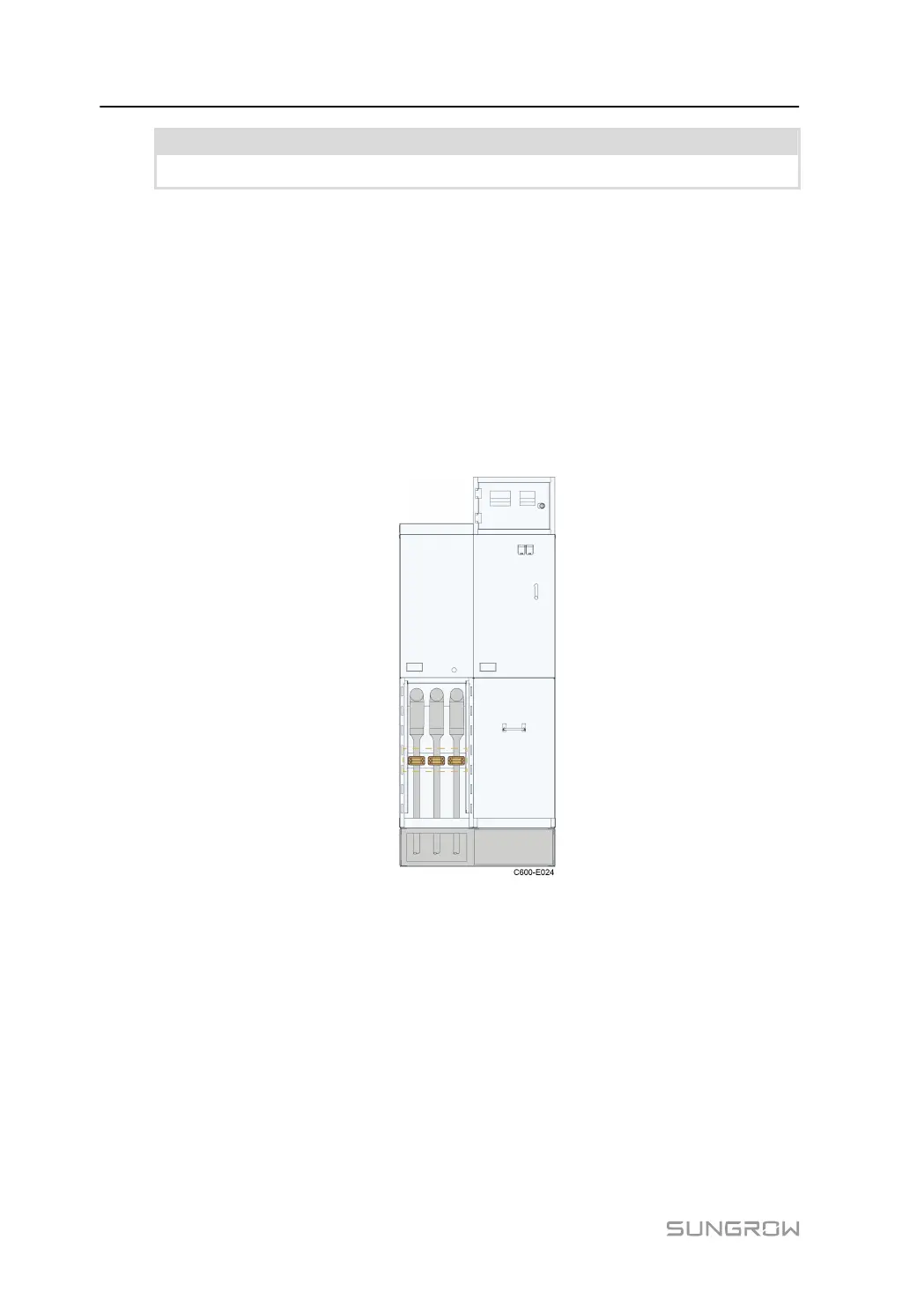

Figure 6-11 Securing single-core cables
Three-core cable
If a three-core cable is used:
• Inside switchgear: The phase B cable must be secured with a cable clip.
• Switchgear base: Add a cable clip under the three-branch breakout boot to secure it.
Rubber or other insulating materials can be used to fill the gap to enhance friction.
System Manual6 Electrical Installation
48
