• The units covered in these instructions are designed to operate on natural gas at 5" inlet pressure or LPG
gas at 10" inlet pressure.
• For proper operation, the maximum inlet pressure of the regulator must not exceed 14" WC water column
pressure.
• To check the regulator, the inlet pressure must be at least 1" higher than the regulator pressure setting. If the
regulator is set to 5", the inlet pressure must be at least 7". If the regulator is set to 10", the inlet pressure
must be at least 11".
• The device and its individual shutter must be disconnected from the piping system gas supply during
any pressure testing of this system at test pressures greater than 1/2 psi (3.5 kPa).
• The appliance must be isolated from the gas supply piping system by close its individual manual valve
during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2
psi (3.5 kPa).
A. Drill the mounting holes (top and bottom)
of the side trim for #8 mounting screws
provided.
B. Secure the oven cabinet with the screws.
Pressure Testing Information
Anti-Tip Mounting Holes
Installing the Mounting Screws
IMPORTANT: Anti-tip mounting screws must be used. Otherwise,
the oven could fall and causing serious injury.
NOTE: During the oven assembly stage, ensure that no damage is
caused to the oven gasket that lines the edge of the oven cavity.
NOTE: Before drilling the pilot holes, make sure the oven is
pushed as far into the opening as possible and that it is centered.
NOTE: If the cabinet is made of particle board, you must
use #8 x ¾” particle board screws. These
can be purchased at any hardware store.

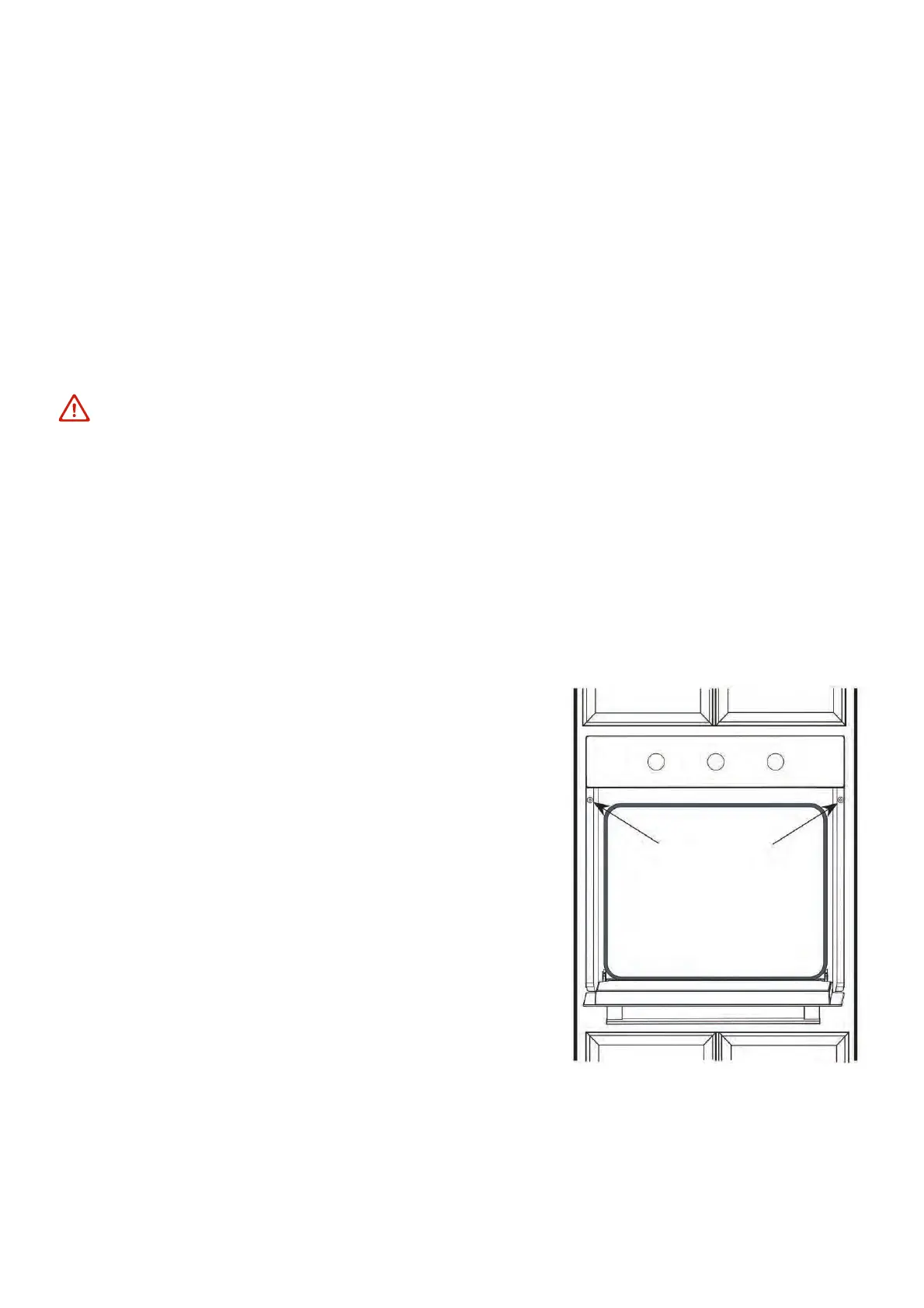

Locations
Mounting Hole
CAUTION
EN - 11
