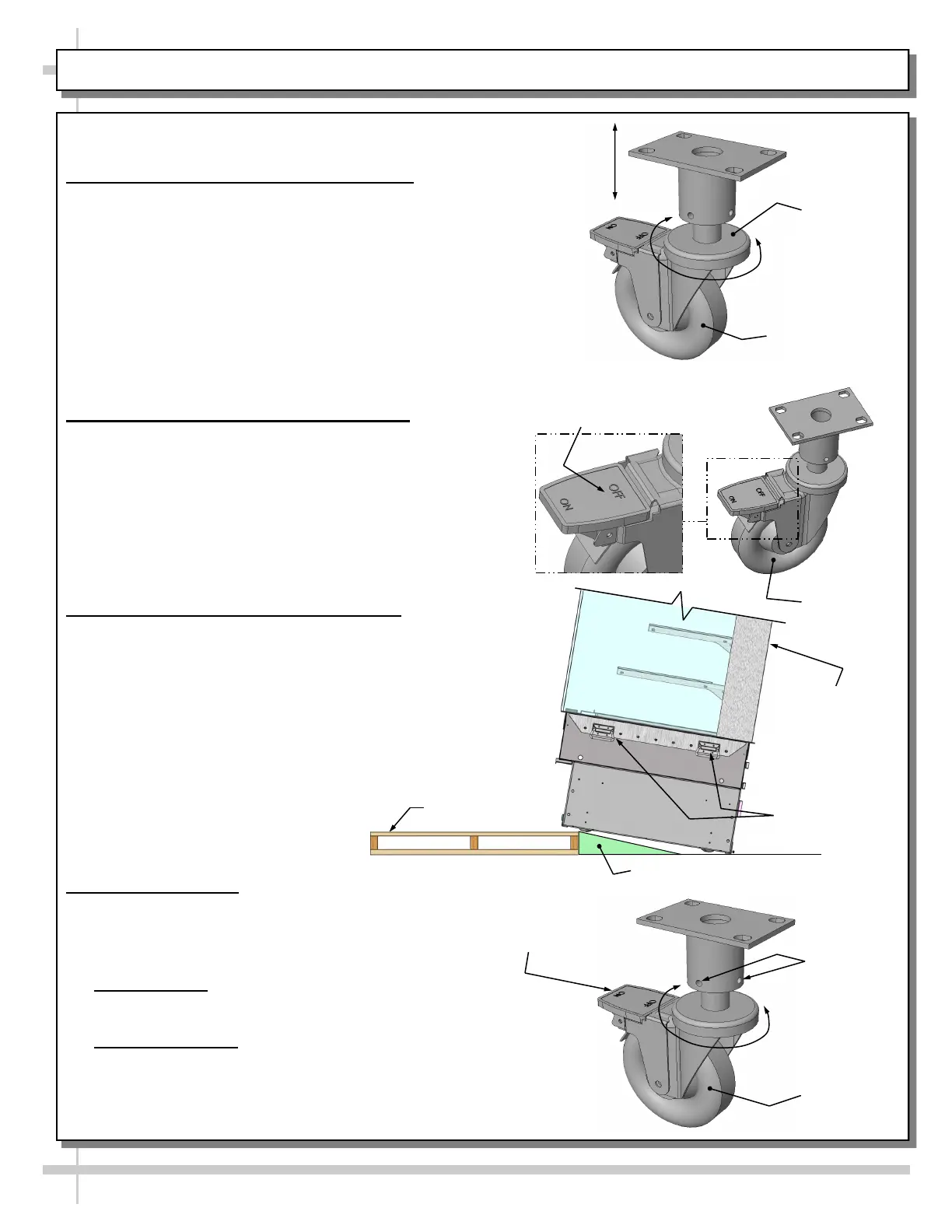

INSTALLATION, CONT’D.: CASTER ADJUSTMENT / LOCK / UNLOCK / CASE REMOVAL FROM PALLET

4. Caster Height: Raising and Lowering

• Raise or lower casters (to adjust case height) by

rotating casters’ vertical adjustment rings.

• Rotate vertical adjustment ring clockwise to lower

caster (and increase height of case).

• Rotate vertical adjustment ring counter-clockwise

to raise caster (and decrease height of case).

5. Caster Rolling Capability: Unlocking

• Important! Case is shipped with caster mechanisms

factory set at ON (locked) to prevent case from rolling.

• Unlock casters by pressing OFF on the caster

mechanism.

• See illustration at right.

6. Carefully Remove Case From Pallet

• Check that casters are lowered as far down as they

will go (as instructed in step #4).

• Use handles to carefully slide case to edge of pallet

(see illustration at right).

• Caution! 4 people are required for this task!

• Carefully lower to floor (using ramp if available).

• Slide pallet from under case as required.

• Maintain support of case at all times or case may fall.

• See illustration at right.

7. Casters: Locking

• After case is at desired position (and height),

use level to check that case is level and

plumb.

• Readjust height as needed (as instructed in step #4).

• Locking Height: After proper height (and positioning) of

case is attained, tighten the two (2) set screws to lock

each caster’s height in place.

• Locking Movement: Then, to prevent casters’ rolling

capability, lock casters by pressing ON atop the “ON”

and “OFF” lever mechanism (shown at right). Case

will now be secured at its new location.

Vertical

Adjustment

Ring

Caster

Tighten Set

Screws To

Lock Caster

Height In

Place

Press “ON” Lever To

Lock Caster In Place

(And Prevent Casters’

Rolling Capability)

Support case

while removing

from pallet.

Press “OFF” Lever To

Unlock Casters (And

Allow Casters To Roll)

Caster

Handles

Pallet

Ramp
