CASE DESIGN, CONT’D: POWER CORD & PLUG / LED LIGHT SWITCH LOCATIONS / LED LIGHTS

3. Power Cord and Plug

• Power cord and plug (for LED lights) is at case

rear (shown below).

• Caution! You must plugged in an approved outlet!

4. LED Light Switch Locations

• Cases with rear sliding doors have light switch in

column cover (for easy access at case rear).

• Cases with solid back rear plenums have light

switch in header.

• See illustrations below.

5. LED Lights

• LED lights are located at both header and

shelving of case (as shown below).

• Check that ALL of the light plugs are properly

connected to the LED light.

• Plug must be inserted ALL THE WAY into the

LED light orifice (with no gap) to work properly.

• See TROUBLESHOOTING section in manual

if LED lights malfunction.

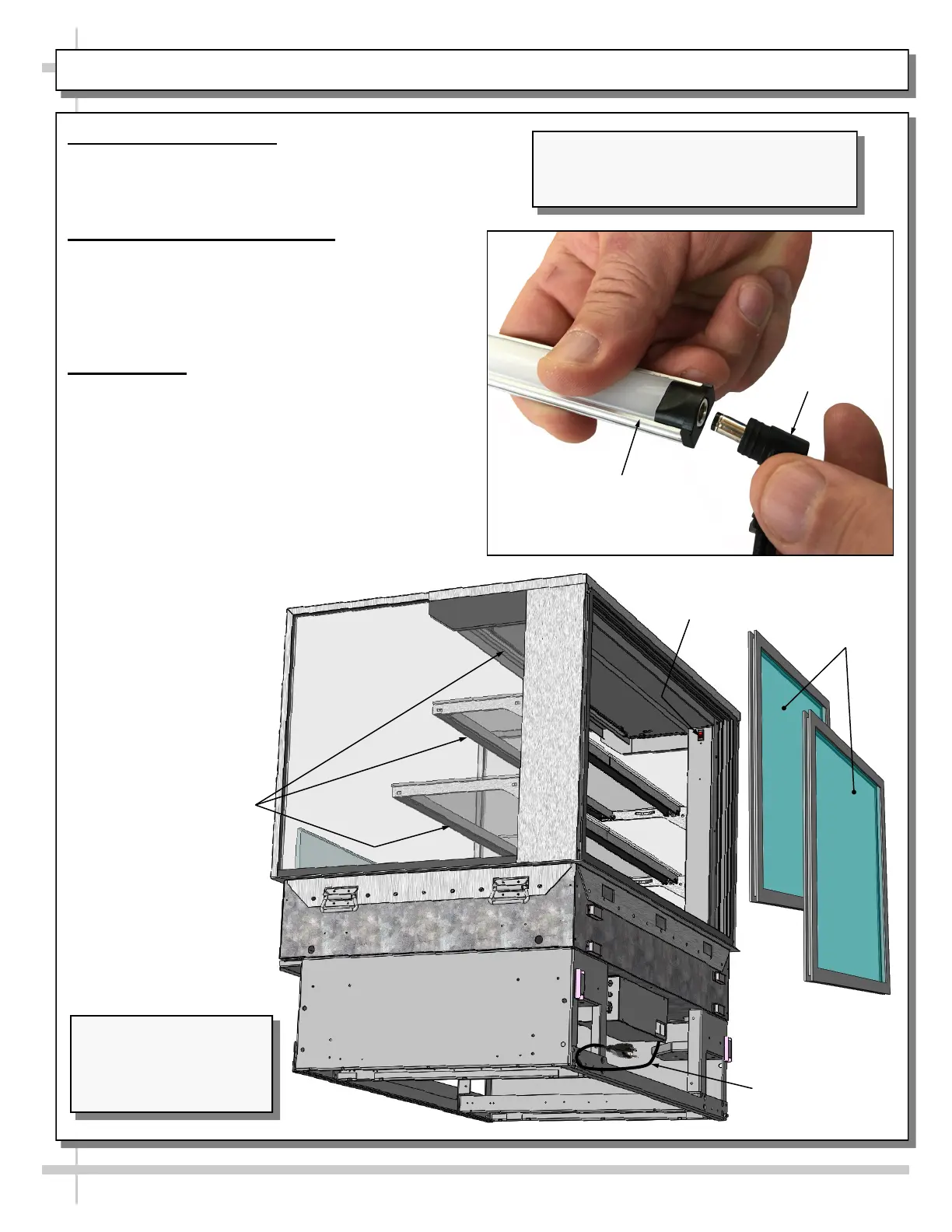

LED Lights In

Shelving And

Header

Model NE4827DSSV

Shown With Rear Sliding

Doors Removed For

Illustrative Purposes Only.

LED Light

Switch

Rear Sliding

Doors

Power Cord

And Plug

LED Light

Plug

Model NE4827DSSV Slide-In Unit (Shown)

May Not Exactly Reflect Every Feature or

Option of Your Particular Case.
