CASE DESIGN, CONT’D: REAR VIEW OF SLIDE-IN, SELF-SERVICE UNITS
2. Rear View Of Slide-In, Self-Service Units
• Slide-in unit with rear sliding doors is illustrated below.
• Certain models may have rear panels.
• Handles (at both ends of case) are for pushing/pulling into
position.
• See previous page for front view of merchandiser.

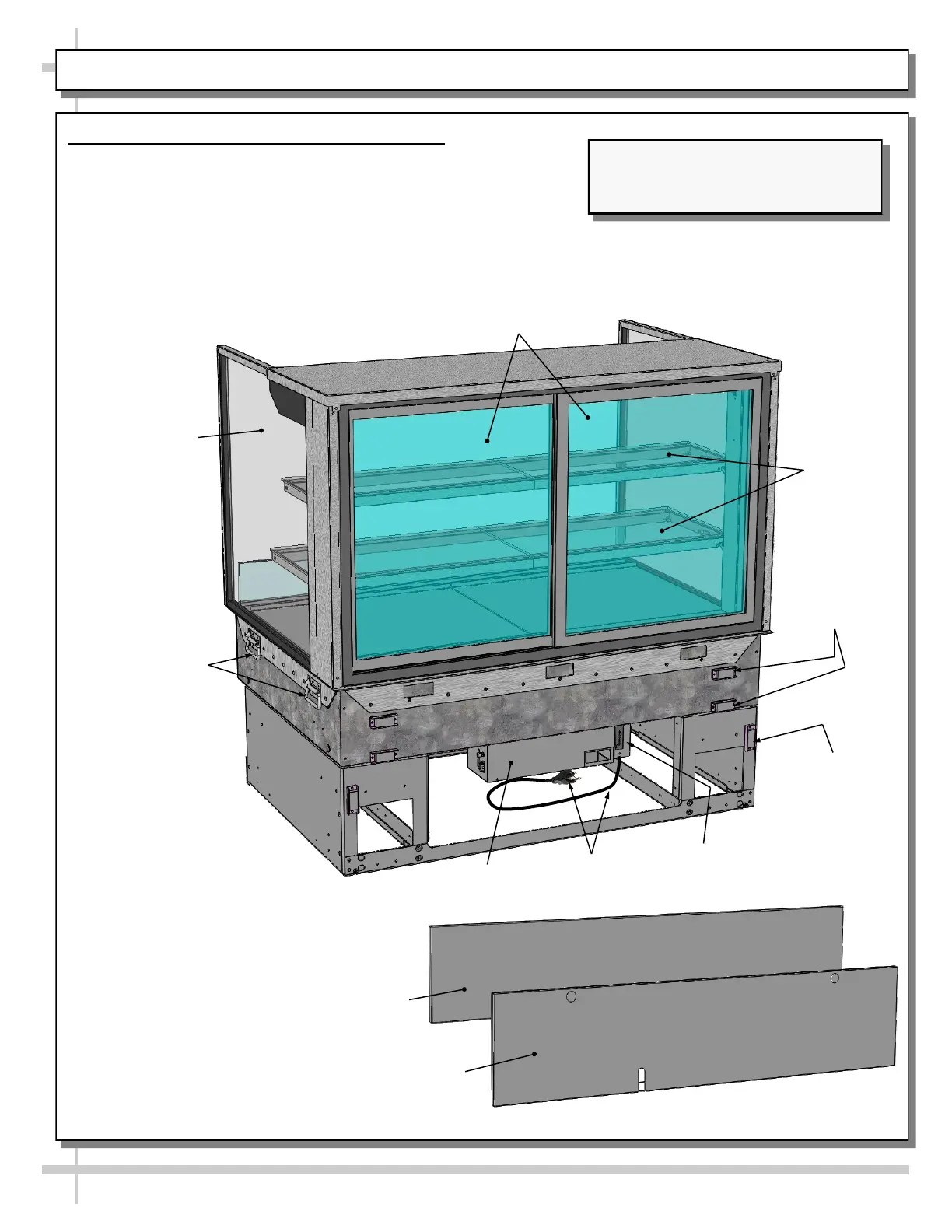

Rear Sliding (And
Removable) Doors
Glass
Shelving
End Glass
Model NE4827DSSV Is Shown. It May
Not Exactly Reflect Every Feature or
Option Of Your Particular Case.
Magnets For
Rear Panel
(Typ.)
Rear Panel
Magnet For
Rear Toe-Kick
(Typ.)
Rear Toe-Kick
Power Cord
And Plug
Field Access
Box
Electrical
Box
Handles Are For
Pushing or
Pulling Unit Into
Position.
