HONEYCOMB AIR DIFFUSER / AIR RETURN DUCT / REFRIGERATED AIRFLOW PATH
10
1. Honeycomb Air Diffuser
• Honeycomb air diffuser must remain
unobstructed at all times.
• Blockage of air discharge can result in poor
operating temperatures.
• See PREVENTIVE MAINTENANCE -
HONEYCOMB AIR DIFFUSERS section in this
manual for additional honeycomb information.
2. Air Return Duct
• Air return ducts must be open and free of
obstruction at all times.
• Blockage of air return duct can result in poor
operating temperatures.
3. Refrigerated Airflow Path
• Refrigerated airflow from honeycomb air diffuser
to air return duct passes over product.
• Caution! DO NOT STACK PRODUCT to height
that will impede this airflow path!
• Doing so will prevent case from keeping product
at proper temperature.

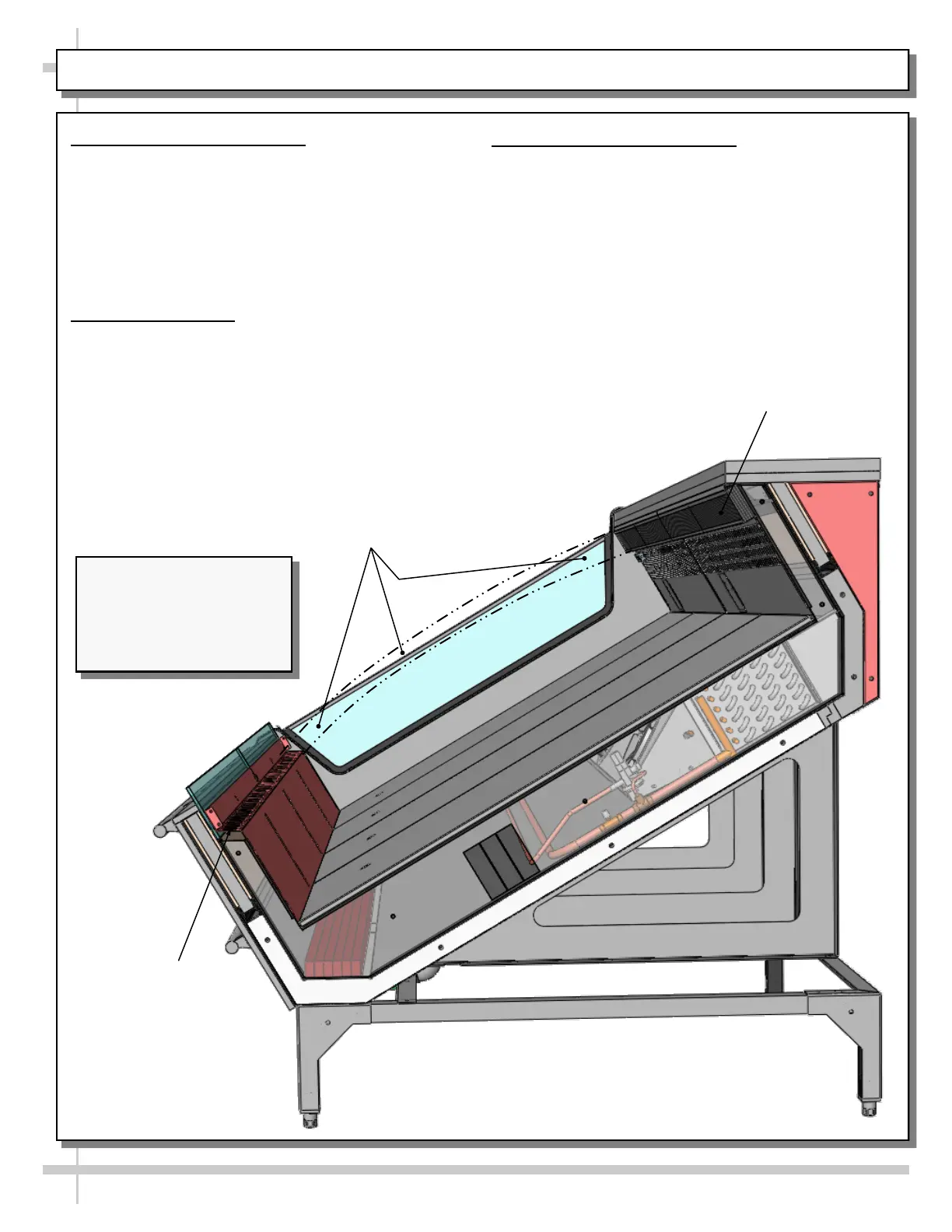

Honeycomb Air Diffusers.
Do Not Block These
Areas With Product
Refrigerated Airflow
Path. Do Not Block This
Area With Product.
Air Return Duct.
Do Not Block This
Area With Product
Illustration Shown Reflects
Remote Unit Only. It May
Not Exactly Reflect Every
Feature or Option of Your
Particular Case.
